| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_148T01_9000005838_43006cztM0_level2.fits | modeM0/AS1T05_148T01_9000005838_43006cztM0_level2_quad_clean.evt |
| Size (bytes) | 363,890,880 | 113,480,640 |
| Size | 347.0 MB | 108.2 MB |
| Events in quadrant A | 3,317,616 | 797,840 |
| Events in quadrant B | 3,067,825 | 810,455 |
| Events in quadrant C | 3,198,817 | 768,306 |
| Events in quadrant D | 3,467,475 | 683,905 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13108 | 2 |
| B | 0 | 12387 | 2 |
| C | 0 | 12499 | 2 |
| D | 0 | 13697 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5380 | 56 | 1.040892% |
| B | 5380 | 22 | 0.408922% |
| C | 5380 | 63 | 1.171004% |
| D | 5380 | 146 | 2.713755% |

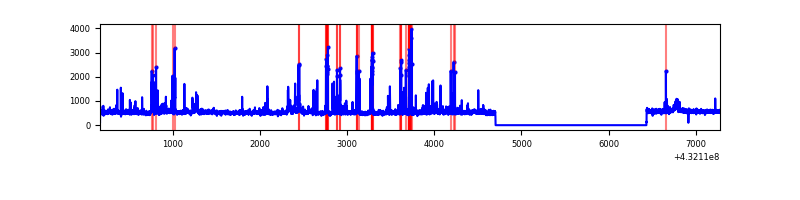

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7114 | 5382 | 25 | 25 | 0.35% | 0.46% |  |
| B | 7114 | 5382 | 3 | 3 | 0.04% | 0.06% |  |
| C | 7114 | 5382 | 60 | 60 | 0.84% | 1.11% |  |
| D | 7114 | 5382 | 101 | 101 | 1.42% | 1.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 576856 | 3818.23 | 676 | 665 | 150.9 |
| A | 15 | 237 | 102172 | 672.65 | 676 | 665 | 150.9 |
| A | 13 | 248 | 20258 | 129.84 | 676 | 665 | 150.9 |
| B | 0 | 186 | 296483 | 2080.05 | 668 | 654 | 142.2 |
| B | 4 | 171 | 127834 | 894.24 | 668 | 654 | 142.2 |
| B | 3 | 112 | 17324 | 117.21 | 668 | 654 | 142.2 |
| C | 0 | 239 | 365669 | 2215.37 | 652 | 657 | 164.8 |
| C | 15 | 214 | 221577 | 1340.83 | 652 | 657 | 164.8 |
| C | 12 | 249 | 38393 | 229.03 | 652 | 657 | 164.8 |
| D | 1 | 47 | 571108 | 3343.45 | 646 | 625 | 170.6 |
| D | 1 | 52 | 220700 | 1289.8 | 646 | 625 | 170.6 |
| D | 12 | 233 | 67294 | 390.73 | 646 | 625 | 170.6 |

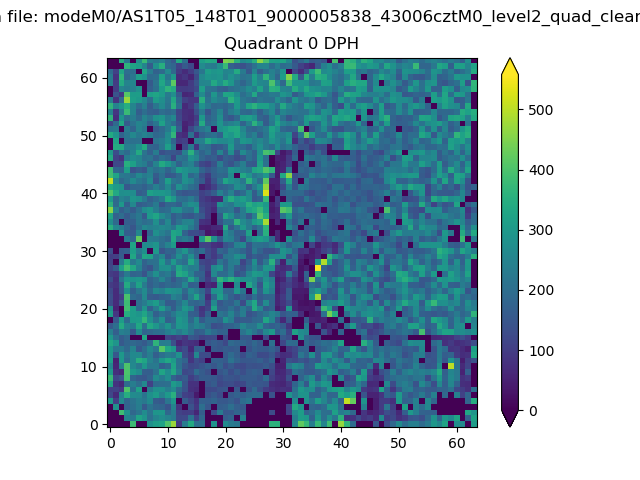

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

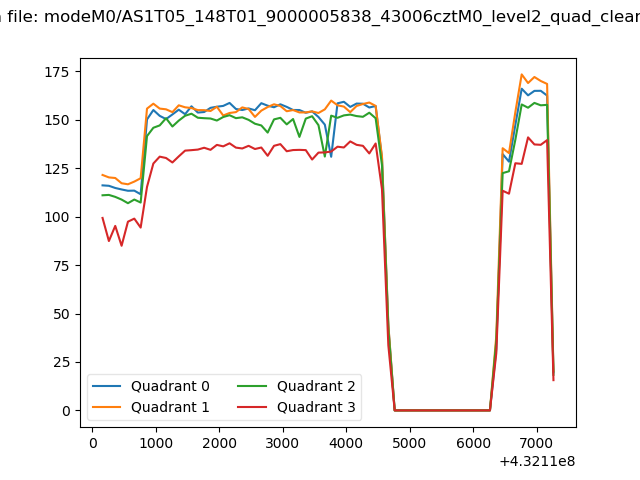

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

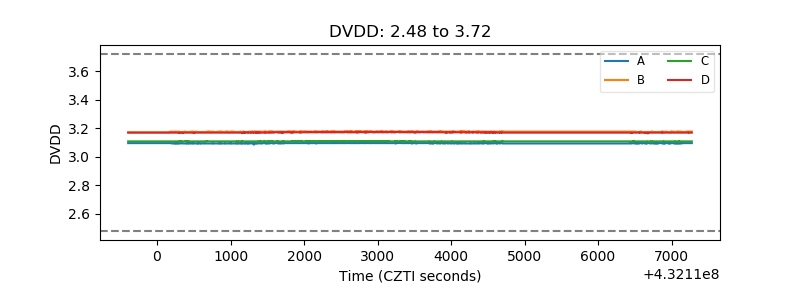

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

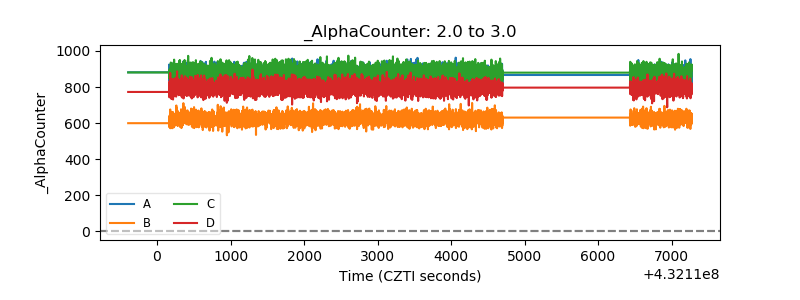

| Alpha Counter |  |

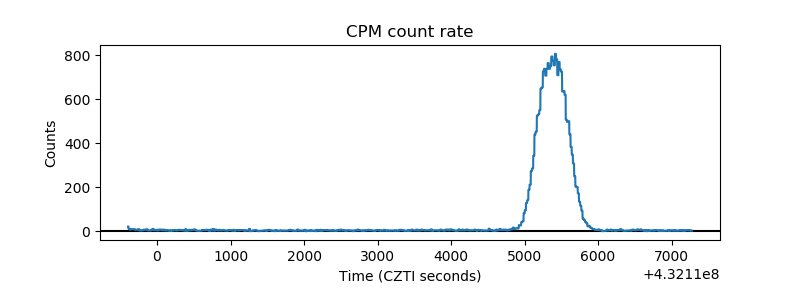

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

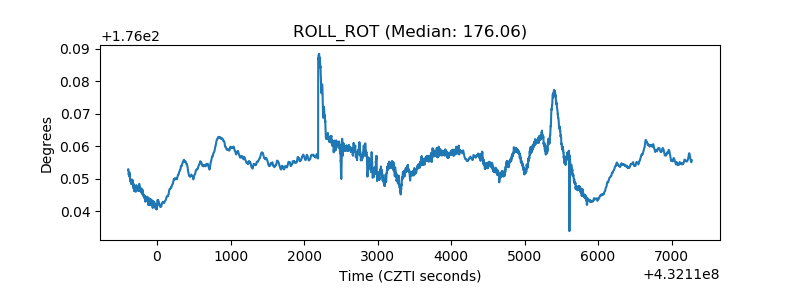

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
