| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_148T01_9000005838_43015cztM0_level2.fits | modeM0/AS1T05_148T01_9000005838_43015cztM0_level2_quad_clean.evt |
| Size (bytes) | 392,097,600 | 112,504,320 |
| Size | 373.9 MB | 107.3 MB |
| Events in quadrant A | 3,679,615 | 775,453 |
| Events in quadrant B | 3,247,225 | 789,613 |
| Events in quadrant C | 2,911,123 | 761,469 |
| Events in quadrant D | 4,216,988 | 667,921 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15000 | 2 |
| B | 0 | 13626 | 2 |
| C | 0 | 12202 | 2 |
| D | 0 | 16652 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5902 | 126 | 2.134870% |
| B | 5903 | 88 | 1.490767% |
| C | 5903 | 6 | 0.101643% |
| D | 5903 | 308 | 5.217686% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8888 | 5903 | 81 | 81 | 0.91% | 1.37% |  |
| B | 8889 | 5905 | 52 | 52 | 0.58% | 0.88% |  |
| C | 8889 | 5905 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8889 | 5905 | 272 | 272 | 3.06% | 4.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 601550 | 4017.25 | 690 | 680 | 149.6 |
| A | 15 | 237 | 316372 | 2110.63 | 690 | 680 | 149.6 |
| A | 13 | 248 | 74030 | 490.4 | 690 | 680 | 149.6 |
| B | 0 | 186 | 399215 | 2794.58 | 691 | 676 | 142.6 |
| B | 5 | 255 | 75387 | 523.88 | 691 | 676 | 142.6 |
| B | 4 | 171 | 32600 | 223.85 | 691 | 676 | 142.6 |
| C | 15 | 214 | 254434 | 1516.91 | 680 | 686 | 167.3 |
| C | 12 | 249 | 4811 | 24.66 | 680 | 686 | 167.3 |
| C | 13 | 61 | 4500 | 22.8 | 680 | 686 | 167.3 |
| D | 12 | 6 | 440706 | 2578.73 | 658 | 639 | 170.7 |
| D | 13 | 249 | 324484 | 1897.68 | 658 | 639 | 170.7 |
| D | 12 | 16 | 203901 | 1191.08 | 658 | 639 | 170.7 |

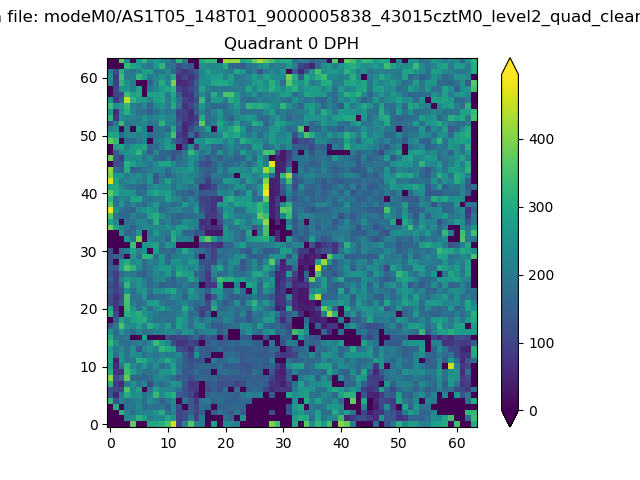

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

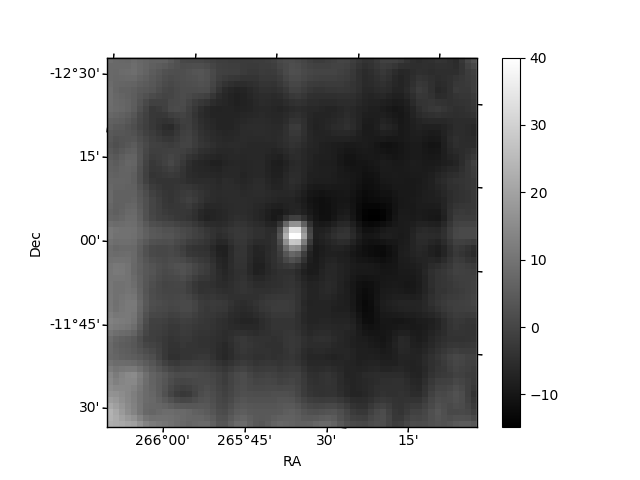

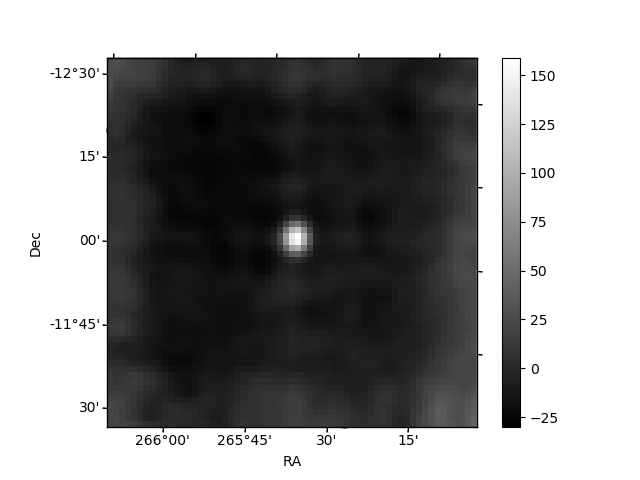

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

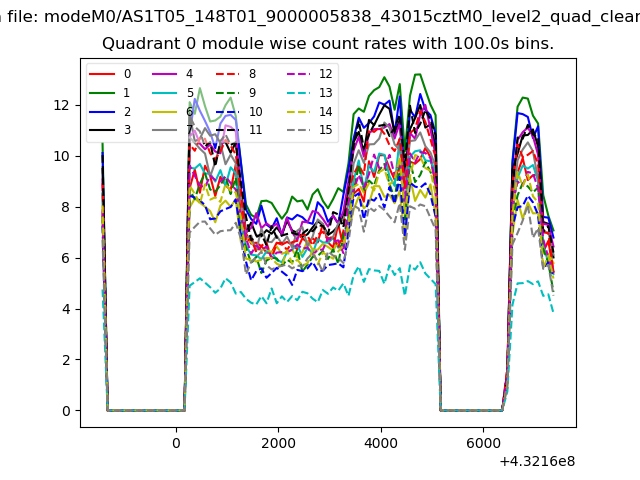

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

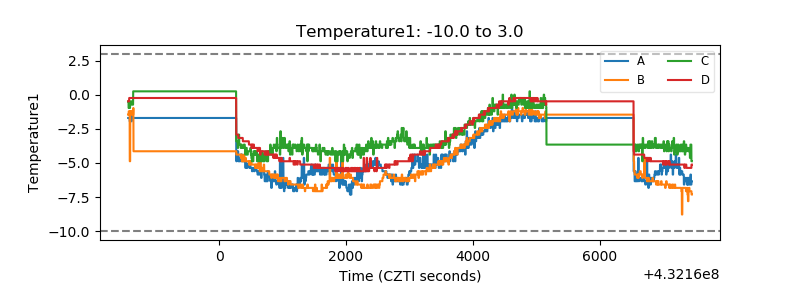

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

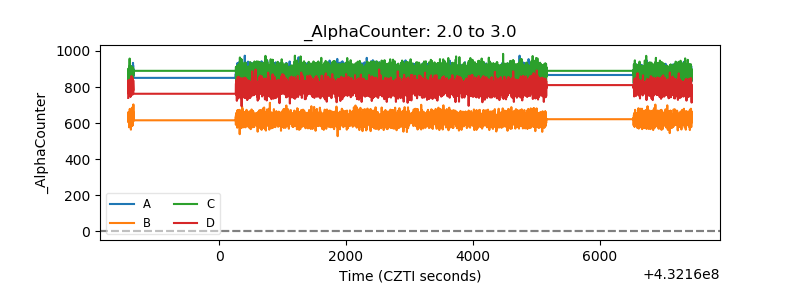

| Alpha Counter |  |

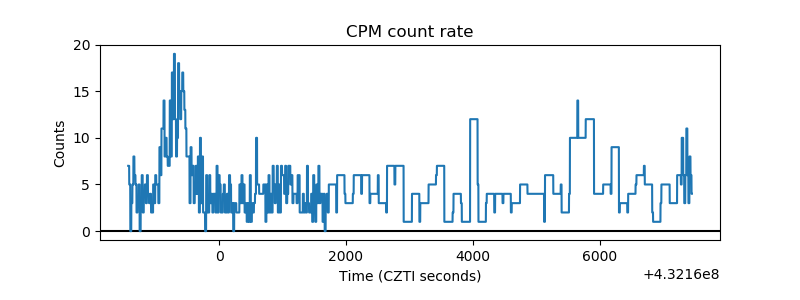

| _CPM_Rate |  |
| CZT Counter |  |

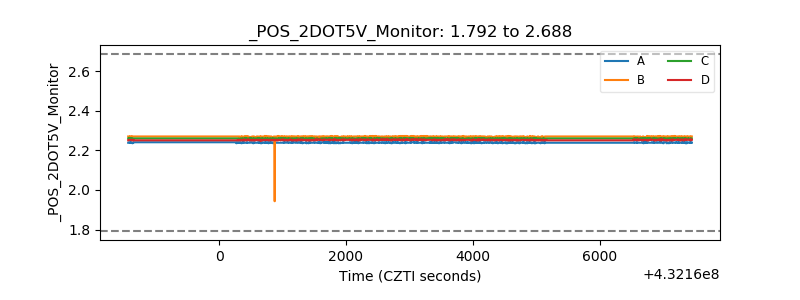

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
