| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_148T01_9000005838_43040cztM0_level2.fits | modeM0/AS1T05_148T01_9000005838_43040cztM0_level2_quad_clean.evt |
| Size (bytes) | 380,643,840 | 108,086,400 |
| Size | 363.0 MB | 103.1 MB |
| Events in quadrant A | 3,323,708 | 770,925 |
| Events in quadrant B | 3,540,276 | 755,652 |
| Events in quadrant C | 2,663,462 | 738,362 |
| Events in quadrant D | 4,168,507 | 652,727 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13257 | 2 |
| B | 0 | 13916 | 2 |
| C | 0 | 10796 | 2 |
| D | 0 | 15812 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5073 | 64 | 1.261581% |
| B | 5073 | 179 | 3.528484% |
| C | 5073 | 3 | 0.059137% |
| D | 5072 | 261 | 5.145899% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7226 | 5074 | 43 | 43 | 0.60% | 0.85% |  |
| B | 7226 | 5074 | 122 | 122 | 1.69% | 2.40% |  |
| C | 7226 | 5074 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7225 | 5073 | 235 | 235 | 3.25% | 4.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 607553 | 4398.6 | 636 | 628 | 138.0 |
| A | 15 | 237 | 170195 | 1228.91 | 636 | 628 | 138.0 |
| A | 12 | 189 | 82850 | 595.89 | 636 | 628 | 138.0 |
| B | 0 | 186 | 445396 | 3509.55 | 622 | 610 | 126.7 |
| B | 4 | 171 | 298397 | 2349.66 | 622 | 610 | 126.7 |
| B | 0 | 189 | 141873 | 1114.62 | 622 | 610 | 126.7 |
| C | 15 | 214 | 227154 | 1503.55 | 610 | 618 | 150.7 |
| C | 14 | 254 | 39128 | 255.6 | 610 | 618 | 150.7 |
| C | 3 | 233 | 13350 | 84.5 | 610 | 618 | 150.7 |
| D | 1 | 52 | 1209909 | 7728.38 | 602 | 586 | 156.5 |
| D | 10 | 118 | 348143 | 2221.12 | 602 | 586 | 156.5 |
| D | 13 | 249 | 97298 | 618.05 | 602 | 586 | 156.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

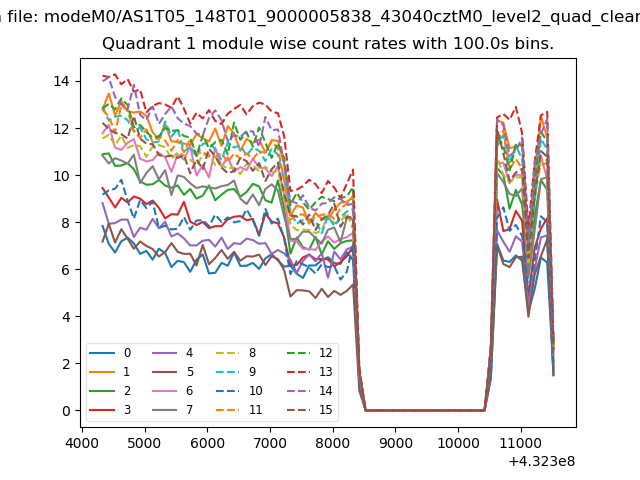

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

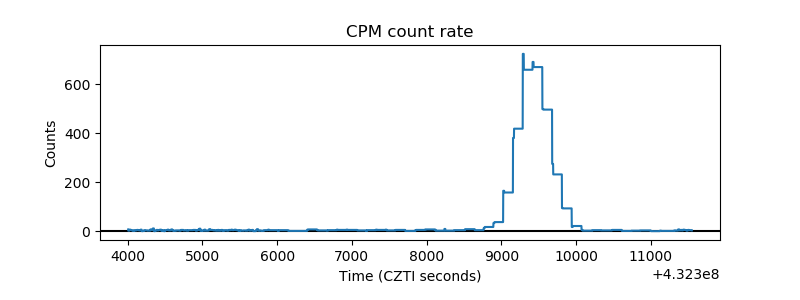

| _CPM_Rate |  |

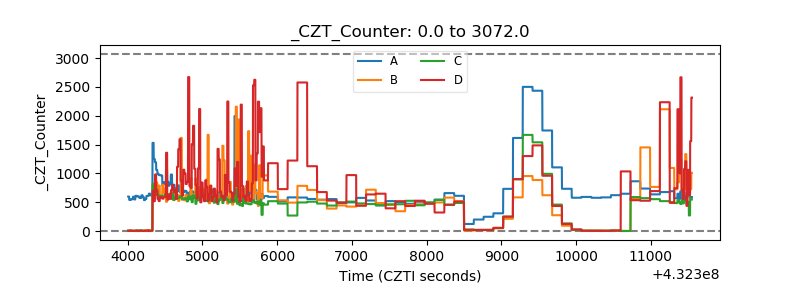

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
