| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_006T07_9000005852_43127cztM0_level2.fits | modeM0/AS1A09_006T07_9000005852_43127cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,656,640 | 86,359,680 |
| Size | 412.6 MB | 82.4 MB |
| Events in quadrant A | 5,916,613 | 511,566 |
| Events in quadrant B | 3,066,988 | 626,499 |
| Events in quadrant C | 2,521,710 | 588,026 |
| Events in quadrant D | 4,111,530 | 529,729 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21092 | 2 |
| B | 0 | 12293 | 2 |
| C | 0 | 10428 | 2 |
| D | 0 | 15634 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5128 | 1046 | 20.397816% |
| B | 5128 | 84 | 1.638066% |
| C | 5128 | 6 | 0.117005% |
| D | 5128 | 275 | 5.362715% |

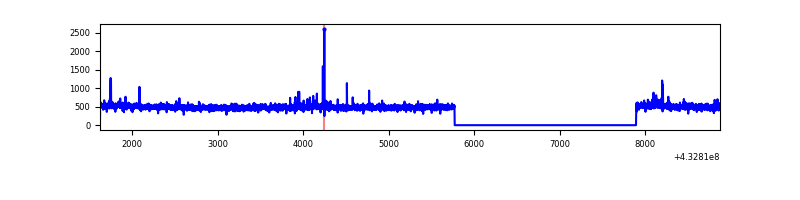

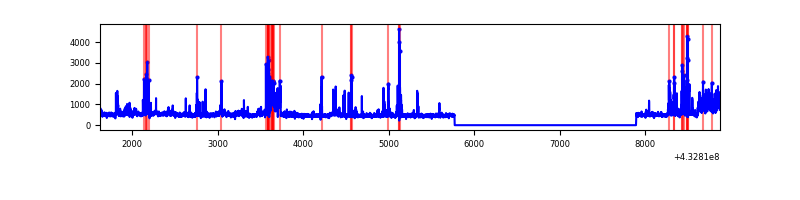

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 5129 | 840 | 840 | 11.58% | 16.38% |  |
| B | 7251 | 5129 | 47 | 47 | 0.65% | 0.92% |  |
| C | 7251 | 5129 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7251 | 5129 | 191 | 191 | 2.63% | 3.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 2548760 | 22992.75 | 540 | 528 | 110.8 |
| A | 10 | 83 | 534805 | 4820.79 | 540 | 528 | 110.8 |
| A | 15 | 237 | 487754 | 4396.25 | 540 | 528 | 110.8 |
| B | 0 | 186 | 289268 | 2525.0 | 591 | 576 | 114.3 |
| B | 5 | 255 | 247469 | 2159.41 | 591 | 576 | 114.3 |
| B | 0 | 229 | 148262 | 1291.71 | 591 | 576 | 114.3 |
| C | 15 | 214 | 217798 | 1605.5 | 578 | 583 | 135.3 |
| C | 14 | 254 | 26385 | 190.71 | 578 | 583 | 135.3 |
| C | 0 | 239 | 16253 | 115.82 | 578 | 583 | 135.3 |
| D | 1 | 52 | 1649620 | 11557.38 | 574 | 558 | 142.7 |
| D | 12 | 0 | 113644 | 792.56 | 574 | 558 | 142.7 |
| D | 7 | 223 | 29494 | 202.79 | 574 | 558 | 142.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

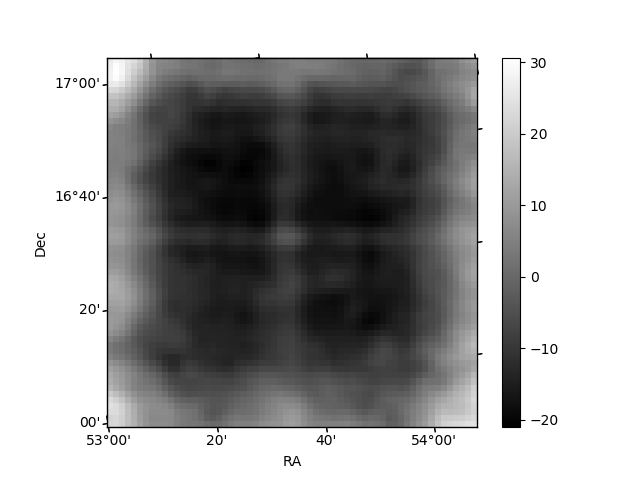

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

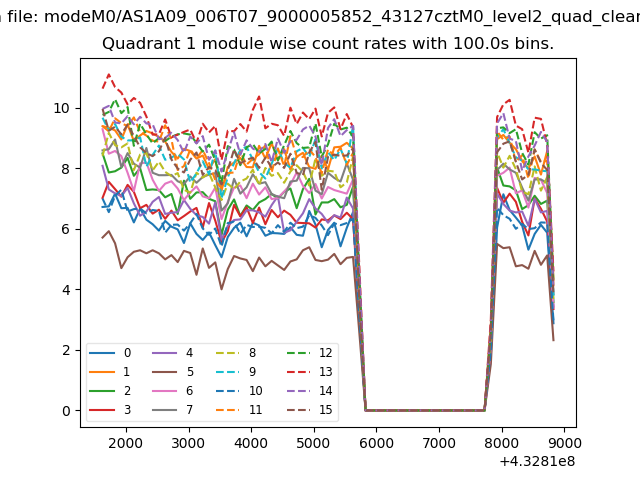

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

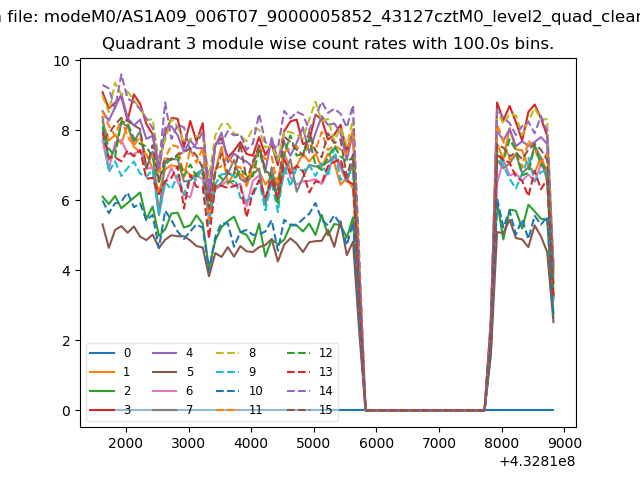

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

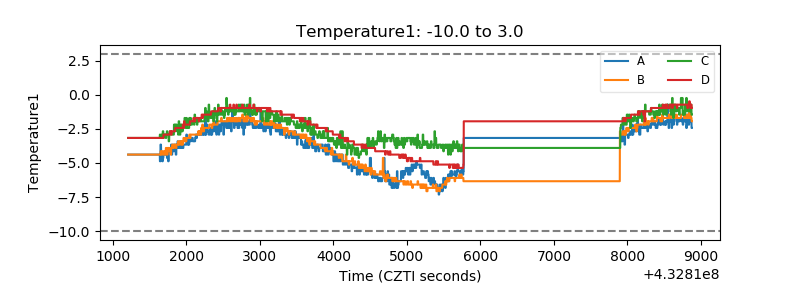

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

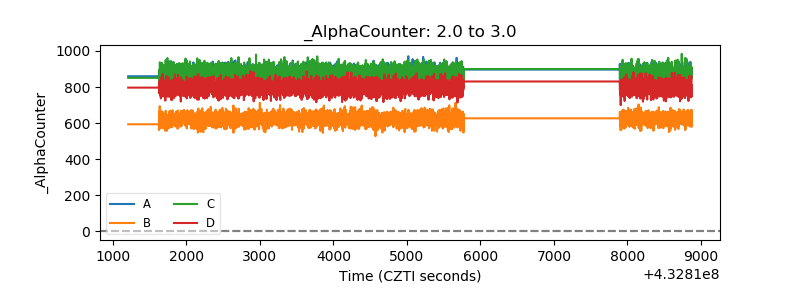

| Alpha Counter |  |

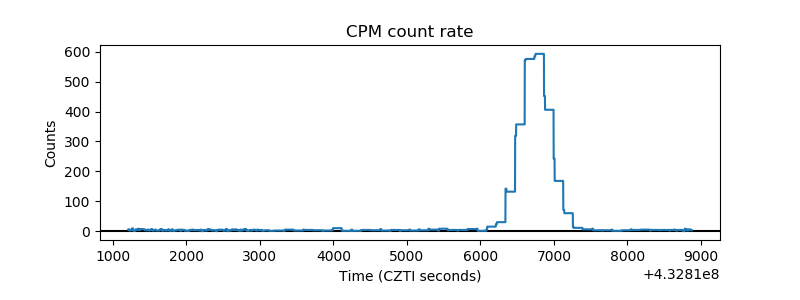

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
