| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_006T07_9000005852_43131cztM0_level2.fits | modeM0/AS1A09_006T07_9000005852_43131cztM0_level2_quad_clean.evt |
| Size (bytes) | 349,891,200 | 96,125,760 |
| Size | 333.7 MB | 91.7 MB |
| Events in quadrant A | 3,509,513 | 642,544 |
| Events in quadrant B | 2,876,881 | 660,064 |
| Events in quadrant C | 2,854,127 | 624,454 |
| Events in quadrant D | 3,254,521 | 573,874 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14167 | 2 |
| B | 0 | 12769 | 2 |
| C | 0 | 12256 | 2 |
| D | 0 | 13798 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5866 | 81 | 1.380839% |
| B | 5867 | 26 | 0.443157% |
| C | 5867 | 13 | 0.221578% |
| D | 5867 | 98 | 1.670360% |

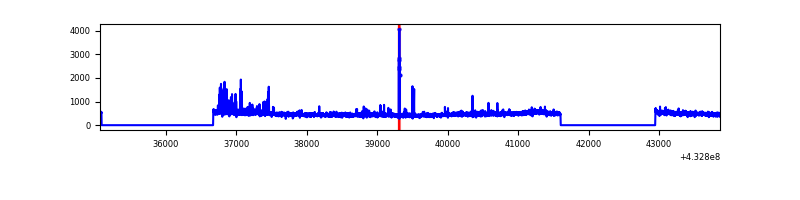

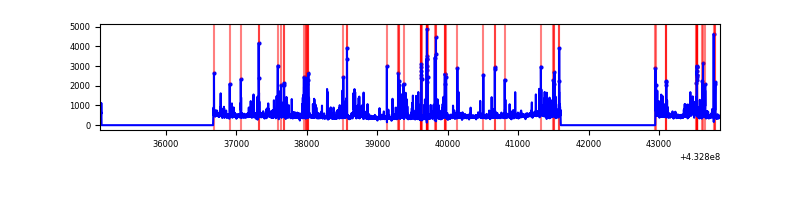

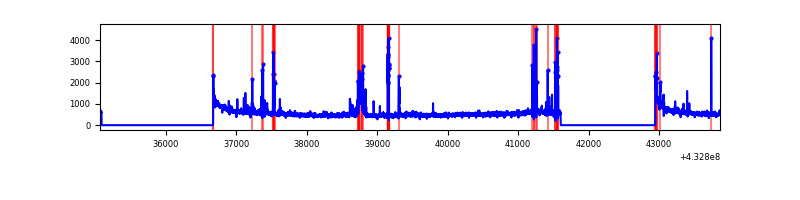

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8792 | 5868 | 61 | 61 | 0.69% | 1.04% |  |
| B | 8793 | 5869 | 5 | 5 | 0.06% | 0.09% |  |
| C | 8793 | 5869 | 6 | 6 | 0.07% | 0.10% |  |
| D | 8793 | 5869 | 76 | 76 | 0.86% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 632156 | 4780.42 | 636 | 622 | 132.1 |
| A | 15 | 237 | 302721 | 2286.75 | 636 | 622 | 132.1 |
| A | 15 | 222 | 78775 | 591.58 | 636 | 622 | 132.1 |
| B | 0 | 186 | 233372 | 1865.75 | 637 | 619 | 124.8 |
| B | 0 | 229 | 79282 | 630.56 | 637 | 619 | 124.8 |
| B | 15 | 85 | 21988 | 171.29 | 637 | 619 | 124.8 |
| C | 15 | 214 | 244940 | 1657.5 | 625 | 628 | 147.4 |
| C | 0 | 239 | 104804 | 706.77 | 625 | 628 | 147.4 |
| C | 12 | 249 | 29836 | 198.16 | 625 | 628 | 147.4 |
| D | 1 | 52 | 651172 | 4216.02 | 621 | 605 | 154.3 |
| D | 5 | 70 | 46911 | 300.09 | 621 | 605 | 154.3 |
| D | 13 | 249 | 38602 | 246.24 | 621 | 605 | 154.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

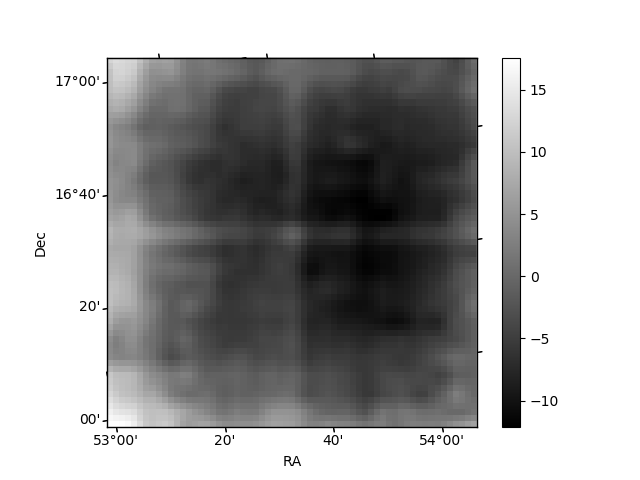

| Quadrant A |  |
 |

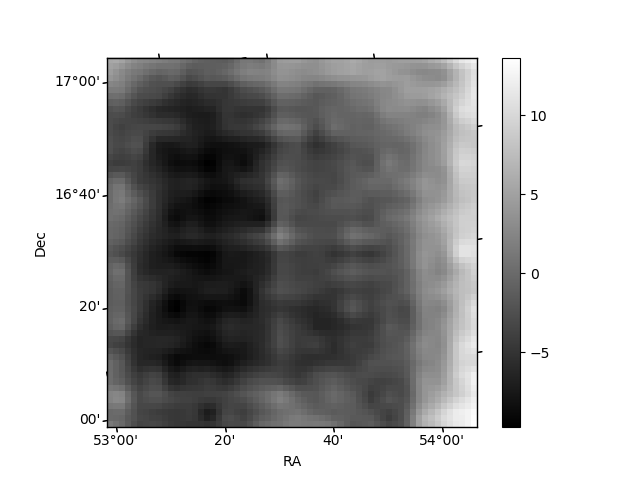

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

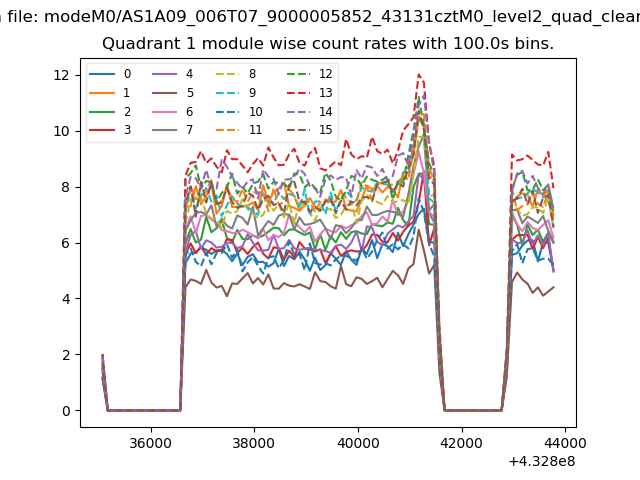

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

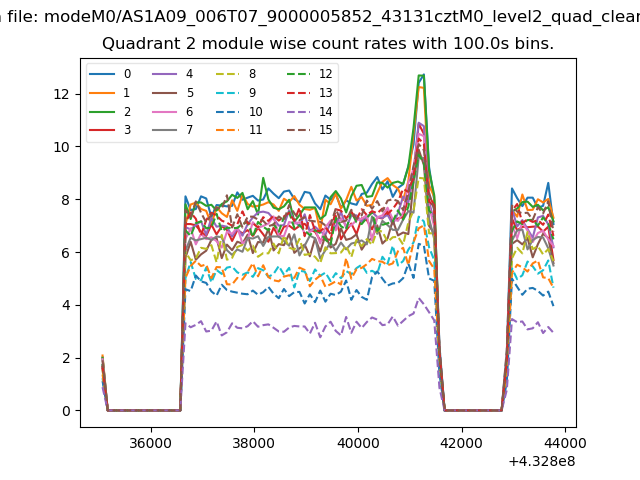

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

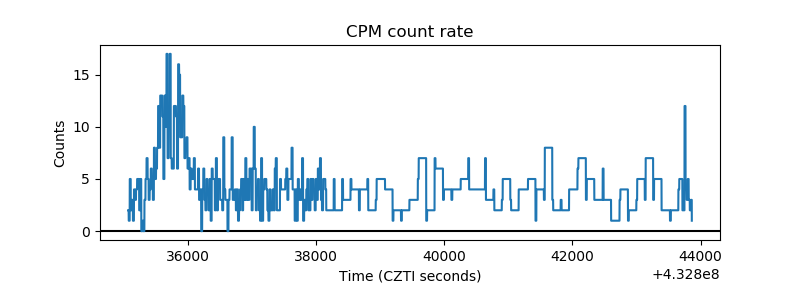

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
