| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_006T07_9000005852_43134cztM0_level2.fits | modeM0/AS1A09_006T07_9000005852_43134cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,561,280 | 87,471,360 |
| Size | 425.9 MB | 83.4 MB |
| Events in quadrant A | 6,489,658 | 457,753 |
| Events in quadrant B | 2,822,176 | 636,229 |
| Events in quadrant C | 2,825,555 | 603,720 |
| Events in quadrant D | 3,943,652 | 546,922 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23228 | 2 |
| B | 0 | 12438 | 2 |
| C | 0 | 12160 | 2 |
| D | 0 | 15919 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5773 | 1552 | 26.883769% |
| B | 5773 | 52 | 0.900745% |
| C | 5773 | 25 | 0.433050% |
| D | 5773 | 189 | 3.273861% |

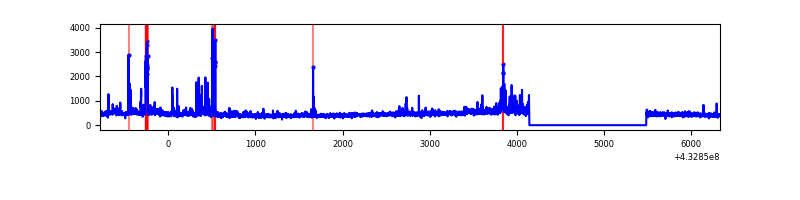

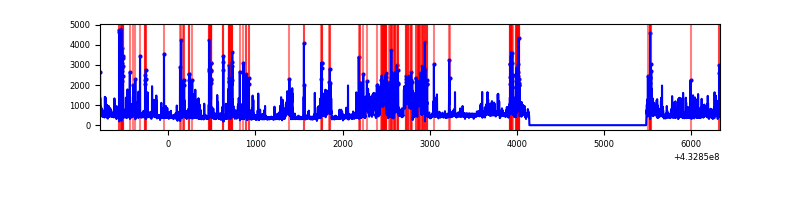

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7115 | 5773 | 1003 | 1003 | 14.10% | 17.37% |  |
| B | 7116 | 5774 | 27 | 27 | 0.38% | 0.47% |  |
| C | 7116 | 5774 | 27 | 27 | 0.38% | 0.47% |  |
| D | 7116 | 5774 | 189 | 189 | 2.66% | 3.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 3875175 | 37997.97 | 493 | 482 | 102.0 |
| A | 10 | 83 | 485932 | 4760.66 | 493 | 482 | 102.0 |
| A | 15 | 237 | 120953 | 1181.42 | 493 | 482 | 102.0 |
| B | 0 | 229 | 154855 | 1284.74 | 619 | 601 | 120.1 |
| B | 5 | 255 | 133859 | 1109.87 | 619 | 601 | 120.1 |
| B | 15 | 54 | 53965 | 444.45 | 619 | 601 | 120.1 |
| C | 15 | 214 | 241536 | 1698.52 | 605 | 607 | 141.8 |
| C | 0 | 207 | 162163 | 1138.95 | 605 | 607 | 141.8 |
| C | 3 | 233 | 45567 | 316.96 | 605 | 607 | 141.8 |
| D | 1 | 52 | 1392869 | 9270.59 | 599 | 580 | 150.2 |
| D | 12 | 218 | 155311 | 1030.28 | 599 | 580 | 150.2 |
| D | 2 | 234 | 28359 | 184.97 | 599 | 580 | 150.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

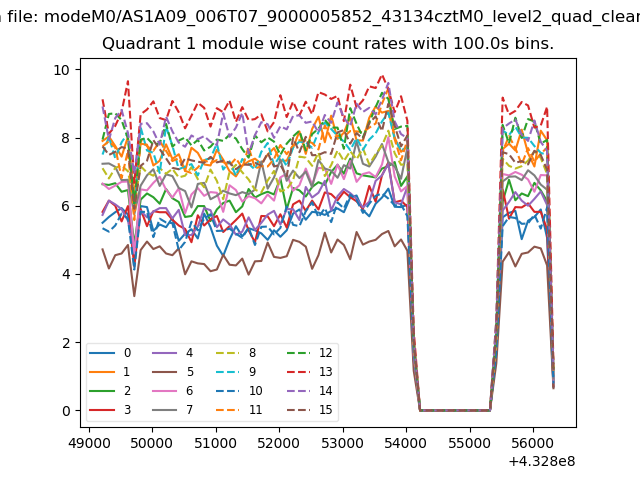

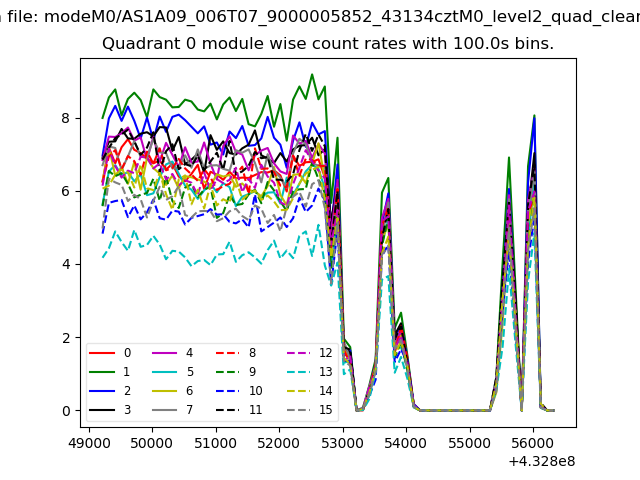

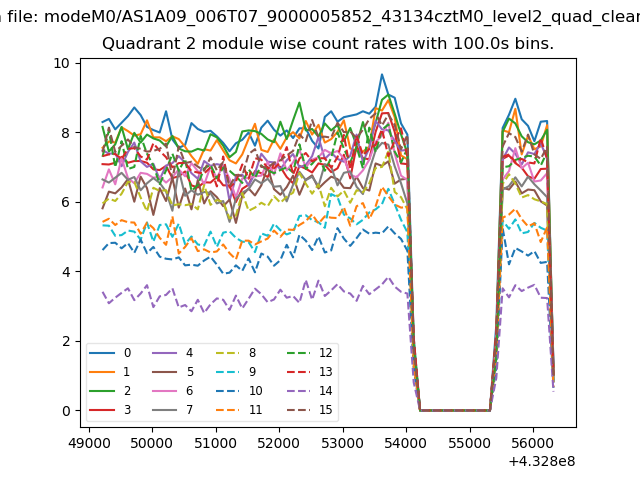

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

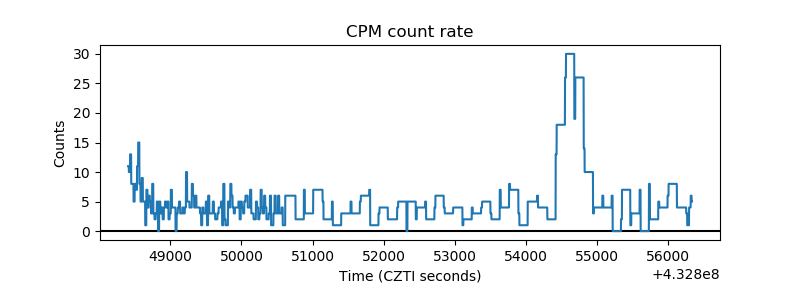

| _CPM_Rate |  |

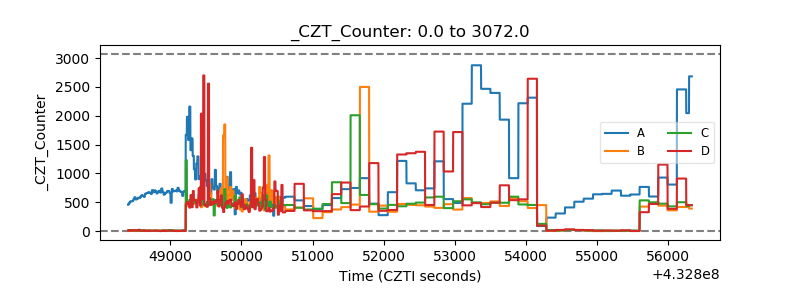

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

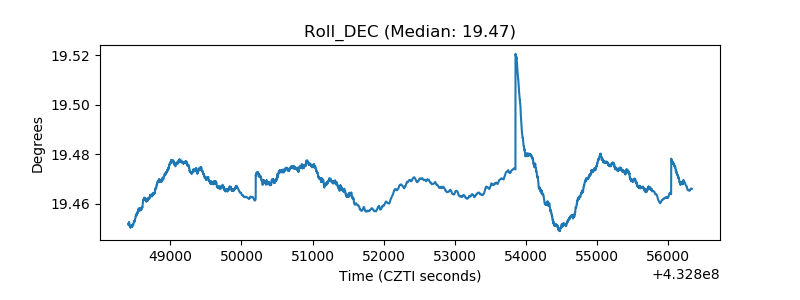

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
