| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_107T01_9000005854_43134cztM0_level2.fits | modeM0/AS1A09_107T01_9000005854_43134cztM0_level2_quad_clean.evt |
| Size (bytes) | 329,967,360 | 57,588,480 |
| Size | 314.7 MB | 54.9 MB |
| Events in quadrant A | 6,387,589 | 242,730 |
| Events in quadrant B | 1,737,286 | 426,773 |
| Events in quadrant C | 1,797,487 | 419,029 |
| Events in quadrant D | 1,991,124 | 383,125 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21620 | 1 |
| B | 0 | 7904 | 1 |
| C | 0 | 7746 | 1 |
| D | 0 | 8699 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3848 | 1646 | 42.775468% |
| B | 3848 | 10 | 0.259875% |
| C | 3848 | 3 | 0.077963% |
| D | 3848 | 35 | 0.909563% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

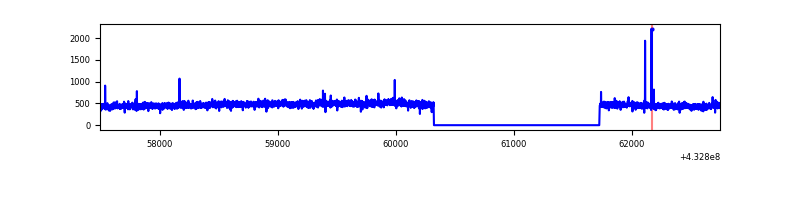

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5251 | 3849 | 1521 | 1521 | 28.97% | 39.52% |  |
| B | 5251 | 3849 | 2 | 2 | 0.04% | 0.05% |  |
| C | 5251 | 3849 | 1 | 1 | 0.02% | 0.03% |  |
| D | 5251 | 3849 | 26 | 26 | 0.50% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 4768371 | 76952.7 | 294 | 287 | 62.0 |
| A | 10 | 83 | 222152 | 3580.71 | 294 | 287 | 62.0 |
| A | 15 | 237 | 158326 | 2550.61 | 294 | 287 | 62.0 |
| B | 0 | 229 | 52230 | 630.53 | 417 | 404 | 82.2 |
| B | 5 | 255 | 21772 | 259.97 | 417 | 404 | 82.2 |
| B | 12 | 111 | 10256 | 119.86 | 417 | 404 | 82.2 |
| C | 15 | 214 | 157811 | 1607.01 | 416 | 417 | 97.9 |
| C | 0 | 207 | 7859 | 75.98 | 416 | 417 | 97.9 |
| C | 4 | 254 | 4241 | 39.04 | 416 | 417 | 97.9 |
| D | 1 | 52 | 298111 | 2898.37 | 415 | 402 | 102.7 |
| D | 5 | 32 | 31765 | 305.34 | 415 | 402 | 102.7 |
| D | 2 | 234 | 20224 | 192.98 | 415 | 402 | 102.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

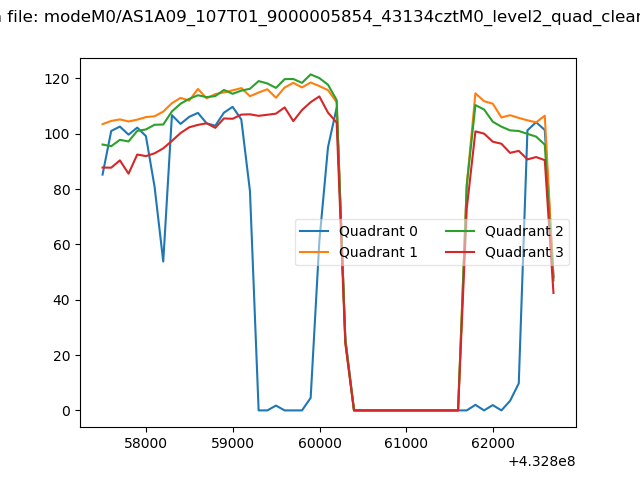

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

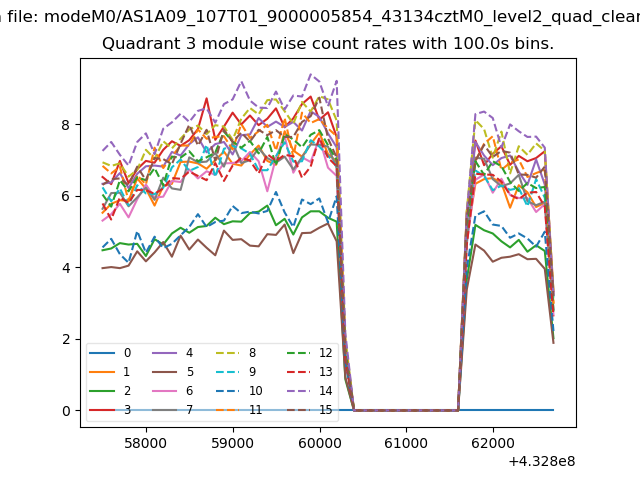

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

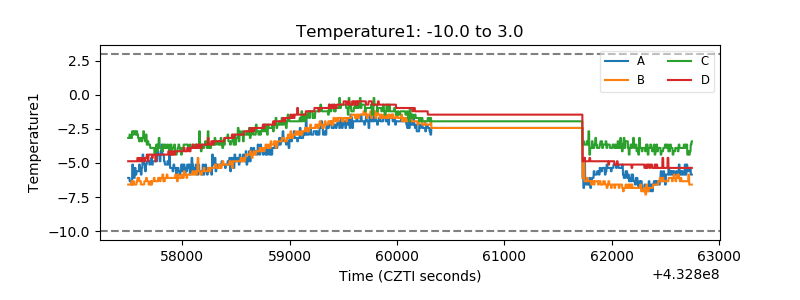

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

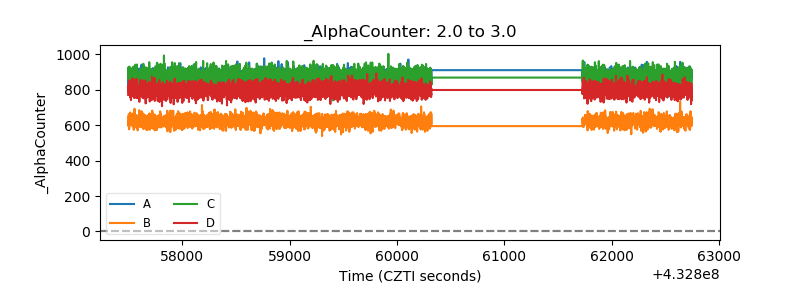

| Alpha Counter |  |

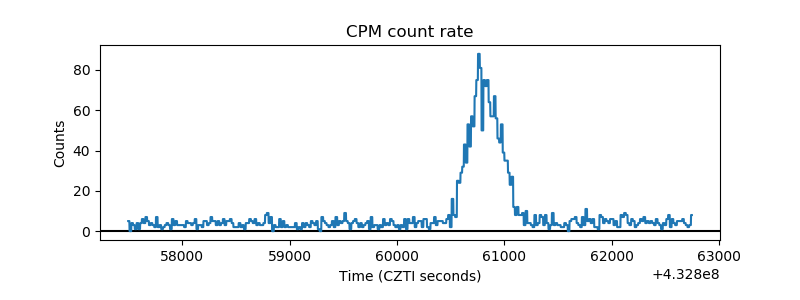

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

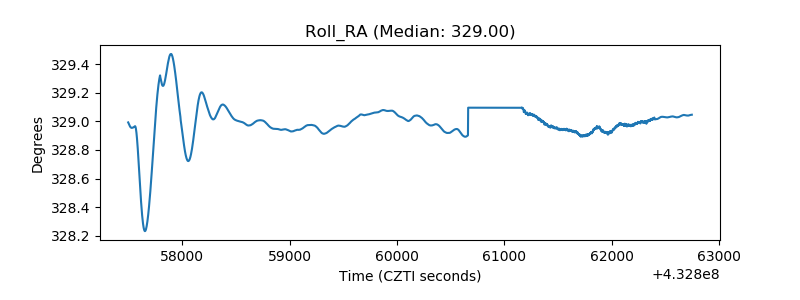

| _Roll_RA |  |

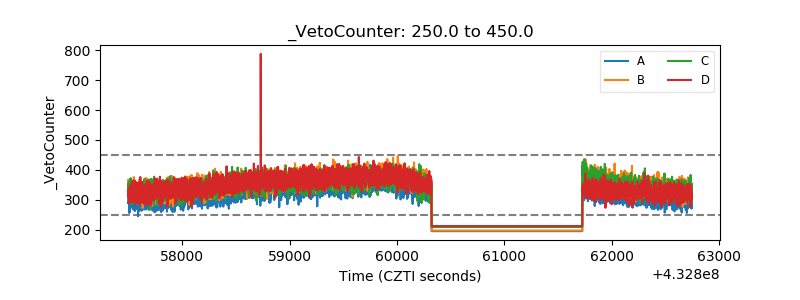

| Veto Counter |  |
