| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_107T01_9000005854_43135cztM0_level2.fits | modeM0/AS1A09_107T01_9000005854_43135cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,979,840 | 96,042,240 |
| Size | 394.8 MB | 91.6 MB |
| Events in quadrant A | 5,416,107 | 563,630 |
| Events in quadrant B | 3,198,616 | 668,196 |
| Events in quadrant C | 2,959,930 | 650,140 |
| Events in quadrant D | 3,272,422 | 597,763 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20054 | 2 |
| B | 0 | 14026 | 2 |
| C | 0 | 12733 | 2 |
| D | 0 | 14227 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6128 | 877 | 14.311358% |
| B | 6128 | 64 | 1.044386% |
| C | 6128 | 30 | 0.489556% |
| D | 6129 | 81 | 1.321586% |

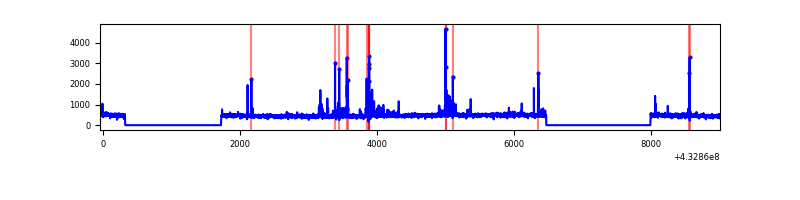

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9053 | 6130 | 797 | 797 | 8.80% | 13.00% |  |
| B | 9053 | 6130 | 19 | 19 | 0.21% | 0.31% |  |
| C | 9053 | 6130 | 16 | 16 | 0.18% | 0.26% |  |
| D | 9054 | 6131 | 61 | 61 | 0.67% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 2265491 | 18360.06 | 594 | 581 | 123.4 |
| A | 10 | 83 | 532530 | 4312.14 | 594 | 581 | 123.4 |
| A | 12 | 189 | 165291 | 1335.19 | 594 | 581 | 123.4 |
| B | 0 | 186 | 445571 | 3543.38 | 649 | 630 | 125.6 |
| B | 5 | 255 | 104314 | 825.71 | 649 | 630 | 125.6 |
| B | 0 | 229 | 82965 | 655.69 | 649 | 630 | 125.6 |
| C | 15 | 214 | 255802 | 1692.55 | 645 | 648 | 150.8 |
| C | 14 | 254 | 152067 | 1004.43 | 645 | 648 | 150.8 |
| C | 0 | 207 | 12299 | 77.29 | 645 | 648 | 150.8 |
| D | 1 | 52 | 442929 | 2783.44 | 641 | 620 | 158.9 |
| D | 12 | 218 | 207355 | 1300.98 | 641 | 620 | 158.9 |
| D | 13 | 249 | 99335 | 621.21 | 641 | 620 | 158.9 |

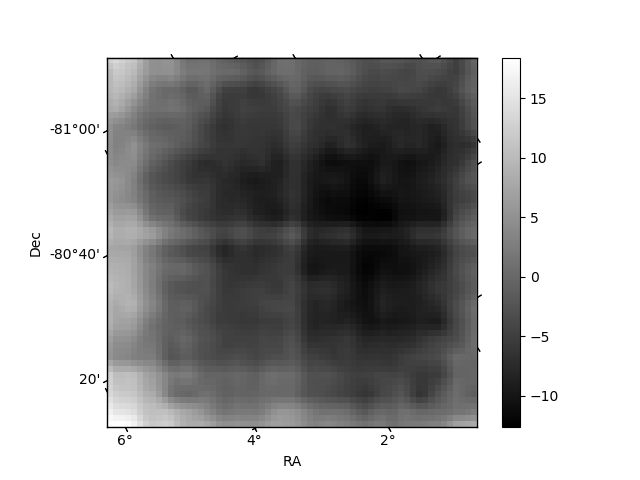

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

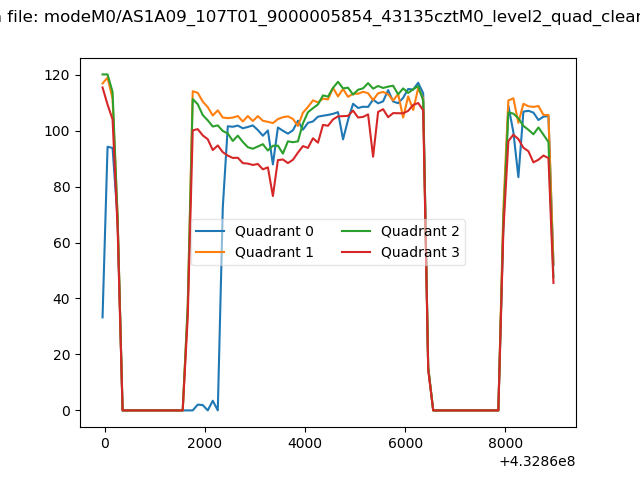

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

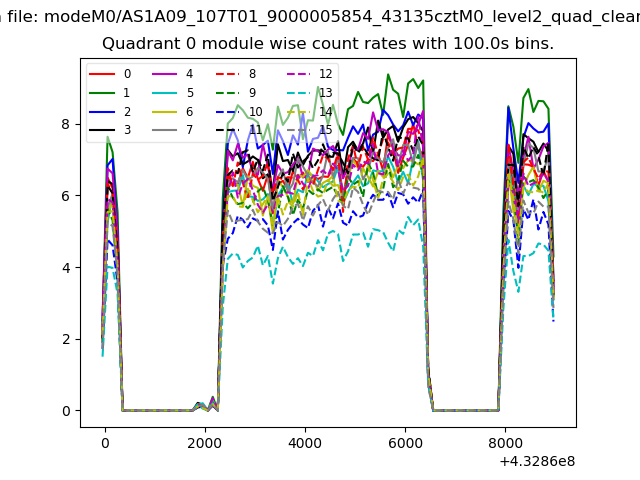

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

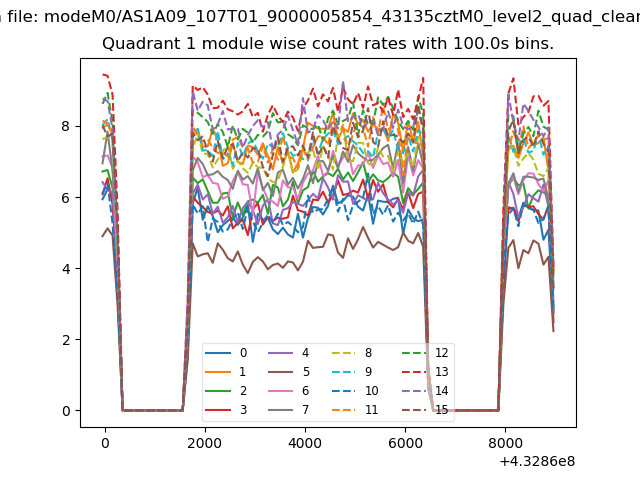

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

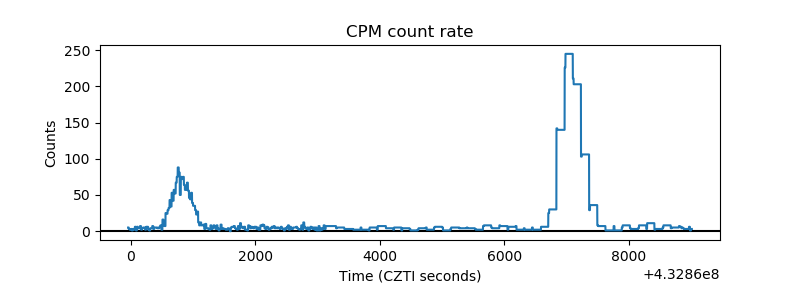

| _CPM_Rate |  |

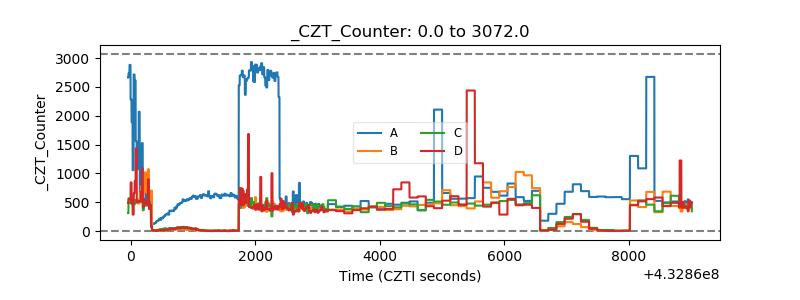

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

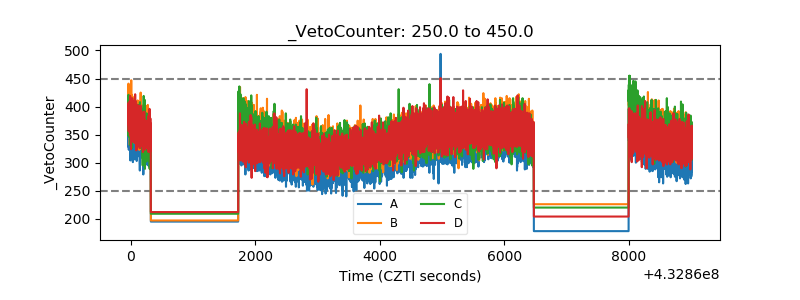

| Veto Counter |  |
