| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_107T01_9000005854_43145cztM0_level2.fits | modeM0/AS1A09_107T01_9000005854_43145cztM0_level2_quad_clean.evt |
| Size (bytes) | 386,098,560 | 92,701,440 |
| Size | 368.2 MB | 88.4 MB |
| Events in quadrant A | 4,554,190 | 593,162 |
| Events in quadrant B | 2,706,464 | 634,705 |
| Events in quadrant C | 2,578,512 | 623,227 |
| Events in quadrant D | 4,005,620 | 553,593 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17249 | 2 |
| B | 0 | 12076 | 2 |
| C | 0 | 11562 | 2 |
| D | 0 | 16038 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5748 | 350 | 6.089074% |
| B | 5749 | 16 | 0.278309% |
| C | 5749 | 2 | 0.034789% |
| D | 5748 | 300 | 5.219207% |

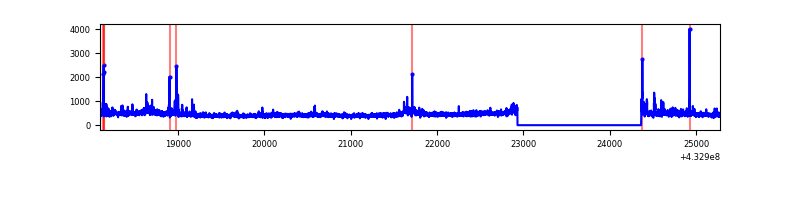

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7181 | 5749 | 337 | 337 | 4.69% | 5.86% |  |
| B | 7182 | 5750 | 8 | 8 | 0.11% | 0.14% |  |
| C | 7182 | 5750 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7181 | 5749 | 257 | 257 | 3.58% | 4.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 1158797 | 9513.97 | 587 | 575 | 121.7 |
| A | 10 | 83 | 602365 | 4943.27 | 587 | 575 | 121.7 |
| A | 15 | 222 | 347035 | 2845.92 | 587 | 575 | 121.7 |
| B | 0 | 189 | 118963 | 1018.34 | 600 | 582 | 116.2 |
| B | 0 | 186 | 76286 | 651.23 | 600 | 582 | 116.2 |
| B | 0 | 229 | 71815 | 612.76 | 600 | 582 | 116.2 |
| C | 15 | 214 | 257145 | 1868.67 | 590 | 595 | 137.3 |
| C | 14 | 254 | 14918 | 104.33 | 590 | 595 | 137.3 |
| C | 13 | 61 | 3998 | 24.79 | 590 | 595 | 137.3 |
| D | 1 | 52 | 1243804 | 8790.55 | 576 | 558 | 141.4 |
| D | 12 | 0 | 371815 | 2625.03 | 576 | 558 | 141.4 |
| D | 12 | 233 | 71401 | 500.91 | 576 | 558 | 141.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

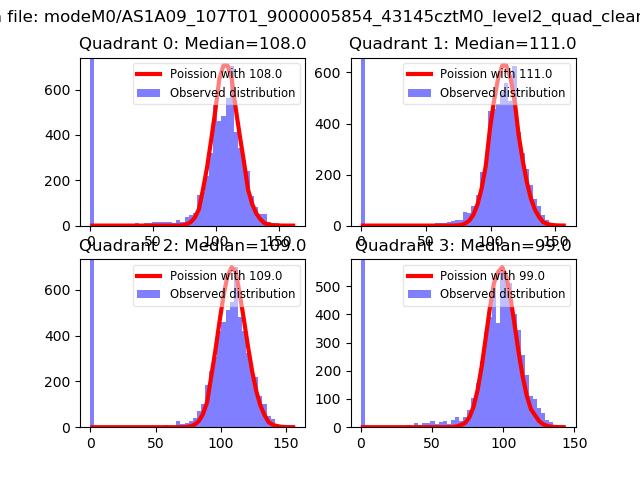

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

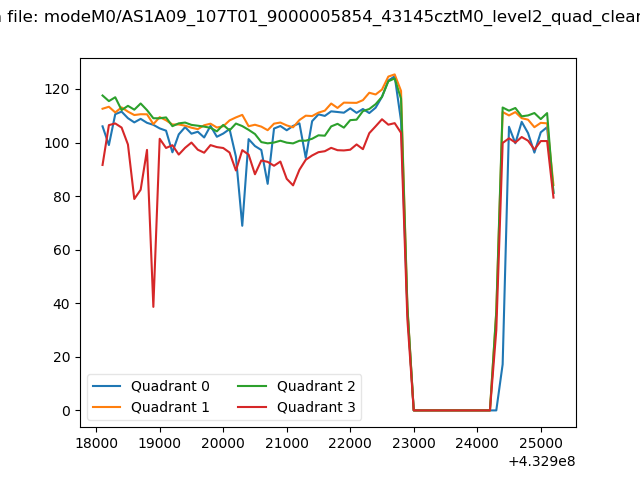

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

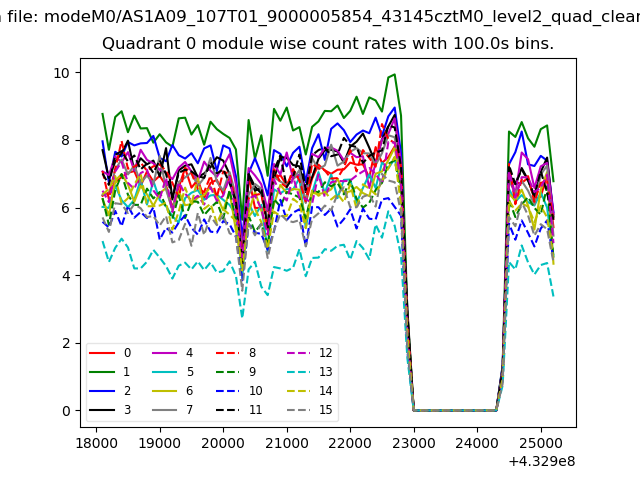

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

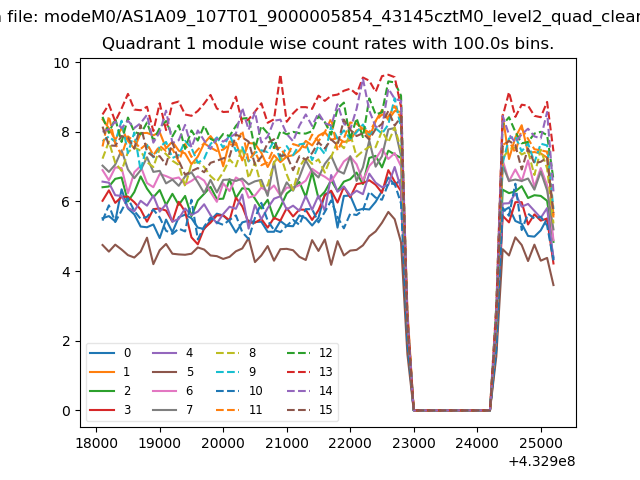

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

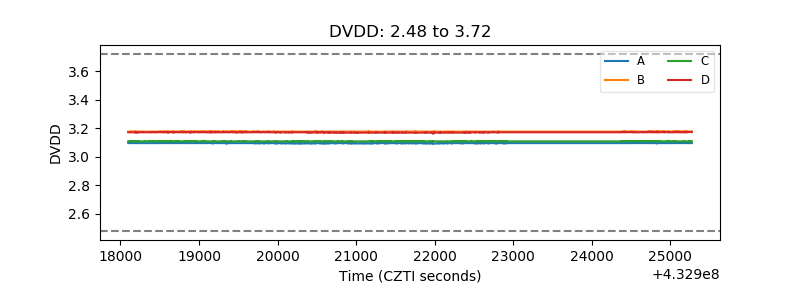

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

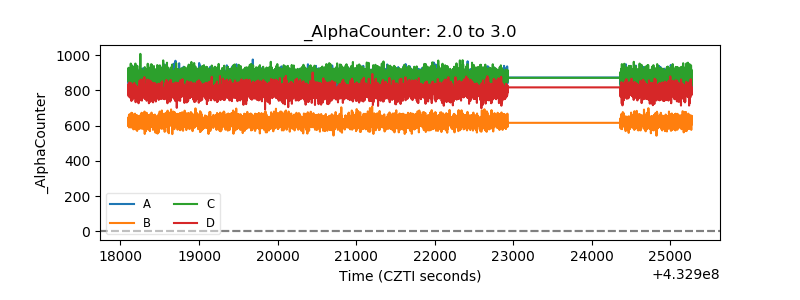

| Alpha Counter |  |
| _CPM_Rate |  |

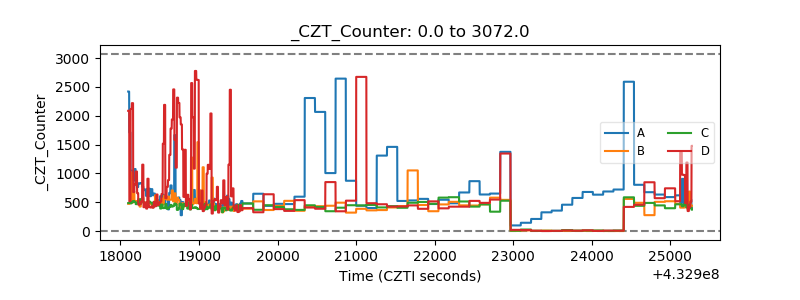

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
