| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005856_43175cztM0_level2.fits | modeM0/AS1C07_001T10_9000005856_43175cztM0_level2_quad_clean.evt |
| Size (bytes) | 376,611,840 | 91,474,560 |
| Size | 359.2 MB | 87.2 MB |
| Events in quadrant A | 4,793,572 | 576,378 |
| Events in quadrant B | 2,750,568 | 634,678 |
| Events in quadrant C | 2,601,209 | 599,472 |
| Events in quadrant D | 3,343,632 | 553,413 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18040 | 2 |
| B | 0 | 12363 | 2 |
| C | 0 | 11644 | 2 |
| D | 0 | 14324 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5802 | 551 | 9.496725% |
| B | 5803 | 25 | 0.430812% |
| C | 5803 | 5 | 0.086162% |
| D | 5803 | 178 | 3.067379% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7114 | 5803 | 404 | 404 | 5.68% | 6.96% |  |
| B | 7115 | 5804 | 16 | 16 | 0.22% | 0.28% |  |
| C | 7115 | 5804 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7115 | 5804 | 130 | 130 | 1.83% | 2.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 1477939 | 12276.61 | 584 | 571 | 120.3 |
| A | 10 | 83 | 599832 | 4979.73 | 584 | 571 | 120.3 |
| A | 13 | 248 | 221176 | 1833.18 | 584 | 571 | 120.3 |
| B | 0 | 186 | 197321 | 1661.53 | 611 | 596 | 118.4 |
| B | 0 | 229 | 111785 | 939.1 | 611 | 596 | 118.4 |
| B | 4 | 67 | 22829 | 187.78 | 611 | 596 | 118.4 |
| C | 15 | 214 | 242882 | 1715.89 | 599 | 603 | 141.2 |
| C | 15 | 111 | 16287 | 111.08 | 599 | 603 | 141.2 |
| C | 14 | 254 | 4380 | 26.75 | 599 | 603 | 141.2 |
| D | 12 | 233 | 661386 | 4488.37 | 597 | 580 | 147.2 |
| D | 1 | 52 | 272249 | 1845.25 | 597 | 580 | 147.2 |
| D | 1 | 47 | 29996 | 199.8 | 597 | 580 | 147.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

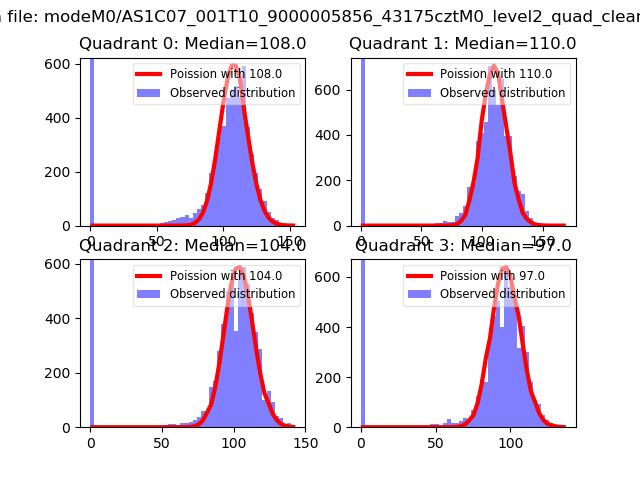

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

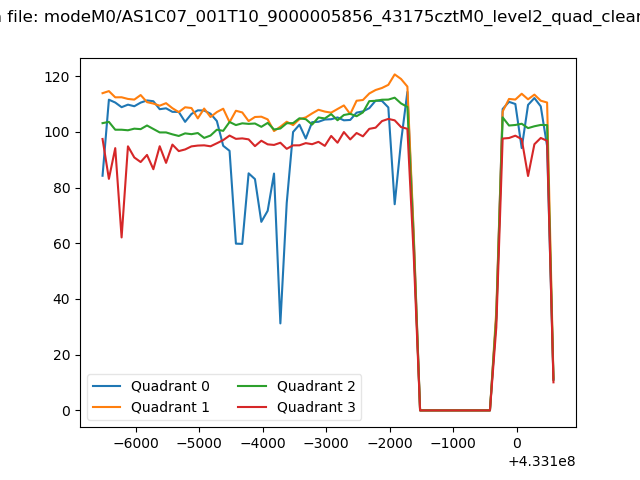

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

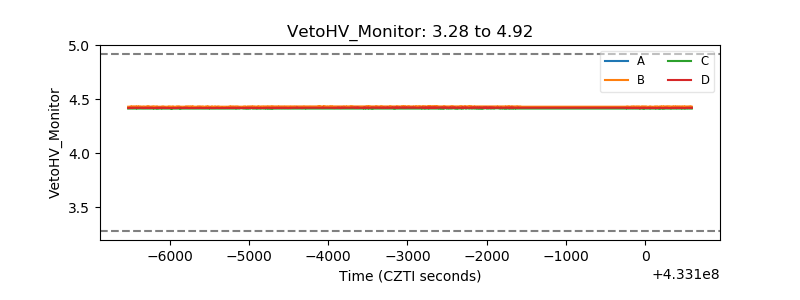

| Veto HV Monitor |  |
| Veto LLD |  |

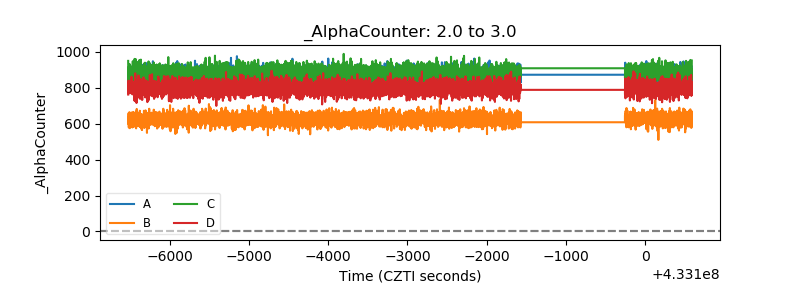

| Alpha Counter |  |

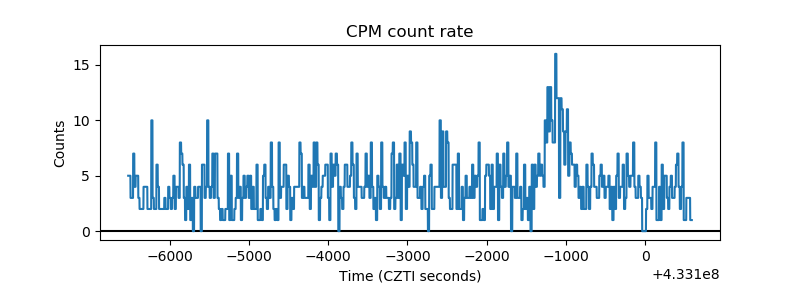

| _CPM_Rate |  |
| CZT Counter |  |

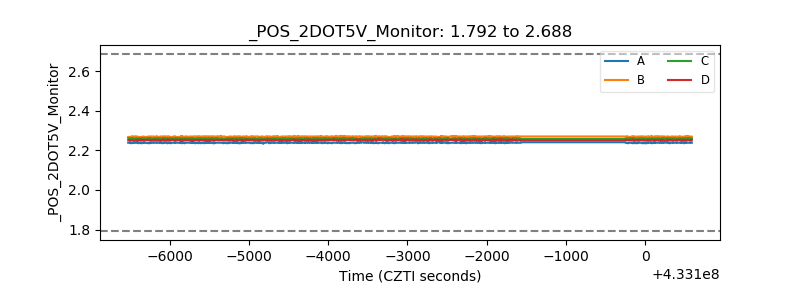

| +2.5 Volts monitor |  |

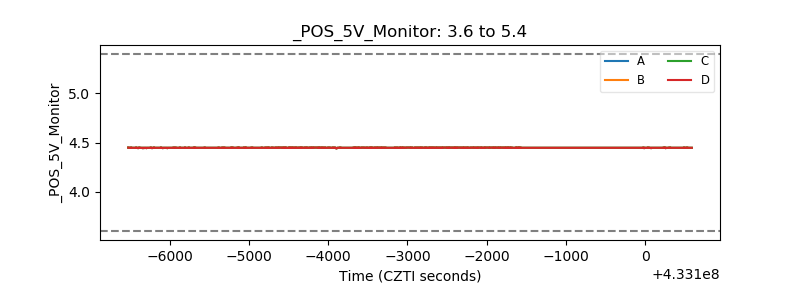

| +5 Volts monitor |  |
| _ROLL_ROT |  |

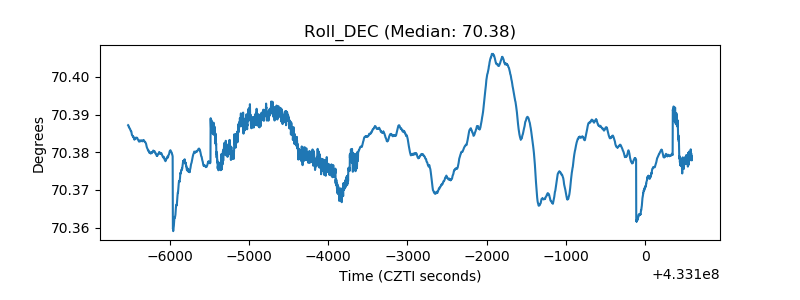

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
