| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_036T17_9000005858_43189cztM0_level2.fits | modeM0/AS1A09_036T17_9000005858_43189cztM0_level2_quad_clean.evt |
| Size (bytes) | 389,845,440 | 92,753,280 |
| Size | 371.8 MB | 88.5 MB |
| Events in quadrant A | 4,279,633 | 607,314 |
| Events in quadrant B | 3,401,994 | 635,088 |
| Events in quadrant C | 2,677,072 | 607,544 |
| Events in quadrant D | 3,622,098 | 553,830 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16280 | 2 |
| B | 0 | 14062 | 2 |
| C | 0 | 11643 | 2 |
| D | 0 | 14802 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5786 | 253 | 4.372624% |
| B | 5786 | 66 | 1.140684% |
| C | 5786 | 4 | 0.069132% |
| D | 5786 | 161 | 2.782579% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

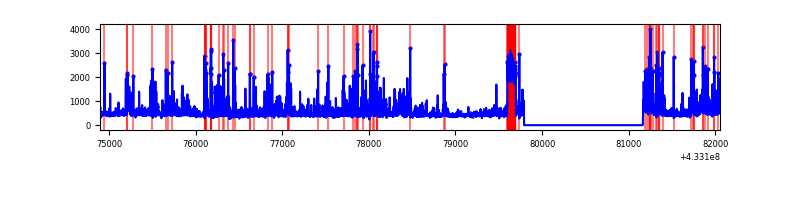

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7159 | 5787 | 179 | 179 | 2.50% | 3.09% |  |
| B | 7159 | 5787 | 23 | 23 | 0.32% | 0.40% |  |
| C | 7159 | 5787 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7159 | 5787 | 155 | 155 | 2.17% | 2.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 642772 | 4988.77 | 624 | 611 | 128.7 |
| A | 15 | 222 | 501278 | 3889.54 | 624 | 611 | 128.7 |
| A | 15 | 237 | 483564 | 3751.92 | 624 | 611 | 128.7 |
| B | 0 | 186 | 591521 | 4796.73 | 631 | 615 | 123.2 |
| B | 0 | 189 | 188768 | 1527.35 | 631 | 615 | 123.2 |
| B | 5 | 255 | 64739 | 520.53 | 631 | 615 | 123.2 |
| C | 15 | 214 | 240256 | 1642.23 | 617 | 621 | 145.9 |
| C | 14 | 254 | 14124 | 92.54 | 617 | 621 | 145.9 |
| C | 4 | 254 | 9145 | 58.42 | 617 | 621 | 145.9 |
| D | 1 | 52 | 857242 | 5603.73 | 617 | 598 | 152.9 |
| D | 13 | 249 | 212186 | 1384.1 | 617 | 598 | 152.9 |
| D | 5 | 171 | 66719 | 432.53 | 617 | 598 | 152.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

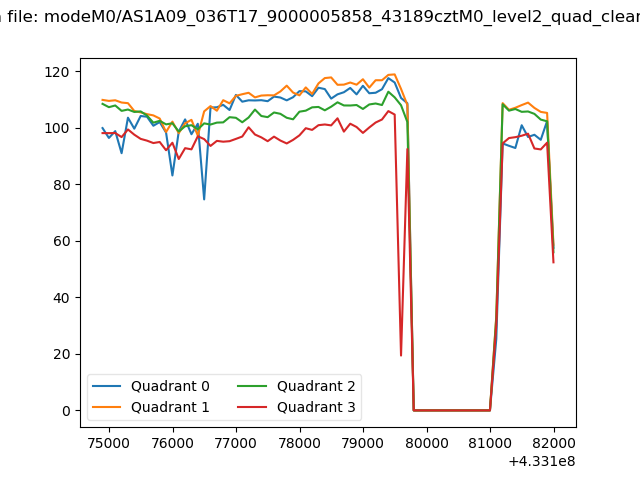

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

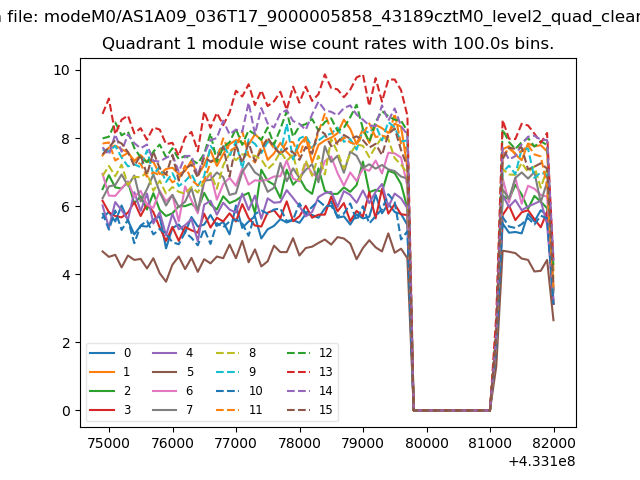

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

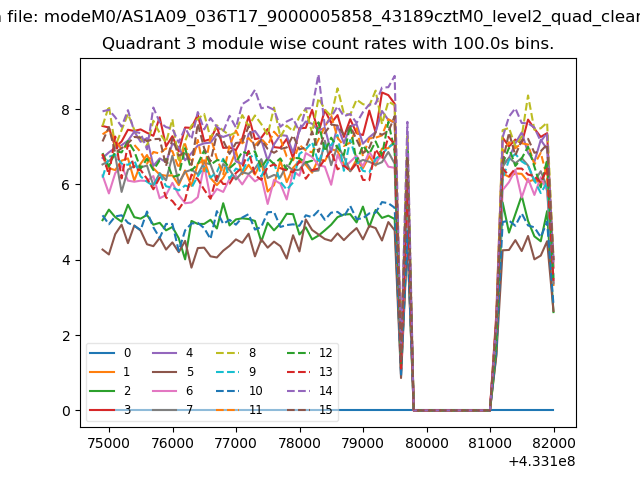

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

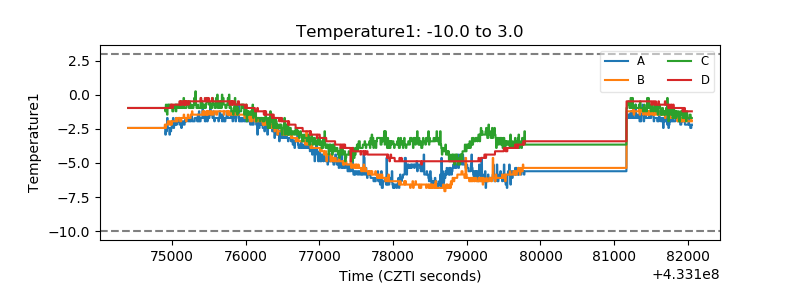

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

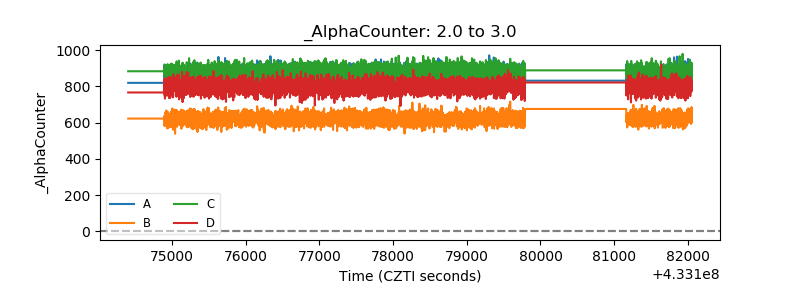

| Alpha Counter |  |

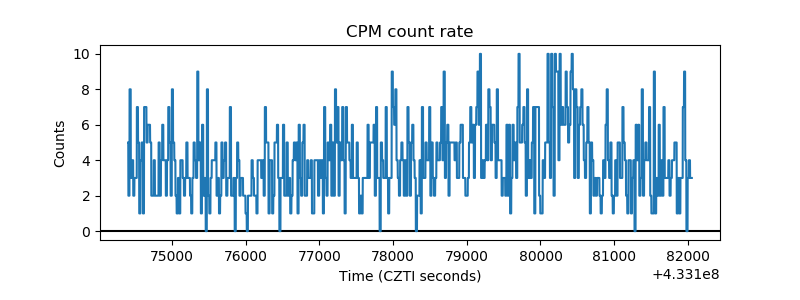

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

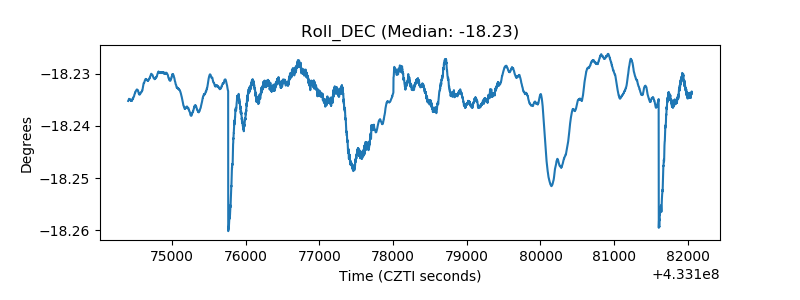

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
