| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_036T17_9000005858_43208cztM0_level2.fits | modeM0/AS1A09_036T17_9000005858_43208cztM0_level2_quad_clean.evt |
| Size (bytes) | 343,270,080 | 91,111,680 |
| Size | 327.4 MB | 86.9 MB |
| Events in quadrant A | 3,850,399 | 598,621 |
| Events in quadrant B | 2,540,971 | 631,305 |
| Events in quadrant C | 2,659,972 | 595,021 |
| Events in quadrant D | 3,223,243 | 545,879 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15100 | 3 |
| B | 0 | 11328 | 2 |
| C | 0 | 11400 | 2 |
| D | 0 | 13482 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5549 | 254 | 4.577401% |
| B | 5549 | 14 | 0.252298% |
| C | 5549 | 6 | 0.108128% |
| D | 5549 | 108 | 1.946297% |

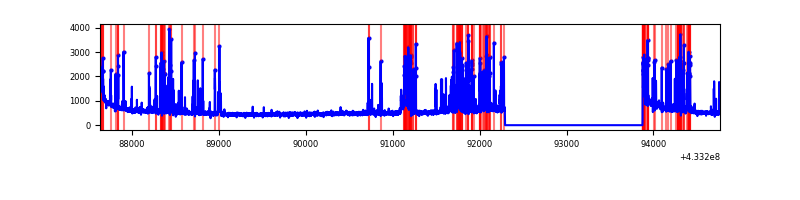

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7132 | 5550 | 191 | 191 | 2.68% | 3.44% |  |
| B | 7132 | 5550 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7132 | 5550 | 2 | 2 | 0.03% | 0.04% |  |
| D | 7132 | 5550 | 92 | 92 | 1.29% | 1.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 594513 | 4724.76 | 604 | 591 | 125.7 |
| A | 10 | 83 | 583522 | 4637.33 | 604 | 591 | 125.7 |
| A | 13 | 248 | 178681 | 1416.74 | 604 | 591 | 125.7 |
| B | 0 | 189 | 40077 | 326.43 | 614 | 597 | 120.9 |
| B | 0 | 229 | 39692 | 323.25 | 614 | 597 | 120.9 |
| B | 0 | 186 | 20558 | 165.04 | 614 | 597 | 120.9 |
| C | 15 | 214 | 230992 | 1609.49 | 601 | 606 | 143.1 |
| C | 14 | 254 | 65222 | 451.41 | 601 | 606 | 143.1 |
| C | 4 | 254 | 17957 | 121.22 | 601 | 606 | 143.1 |
| D | 1 | 52 | 660556 | 4468.76 | 596 | 580 | 147.7 |
| D | 12 | 6 | 93763 | 630.95 | 596 | 580 | 147.7 |
| D | 12 | 16 | 70547 | 473.75 | 596 | 580 | 147.7 |

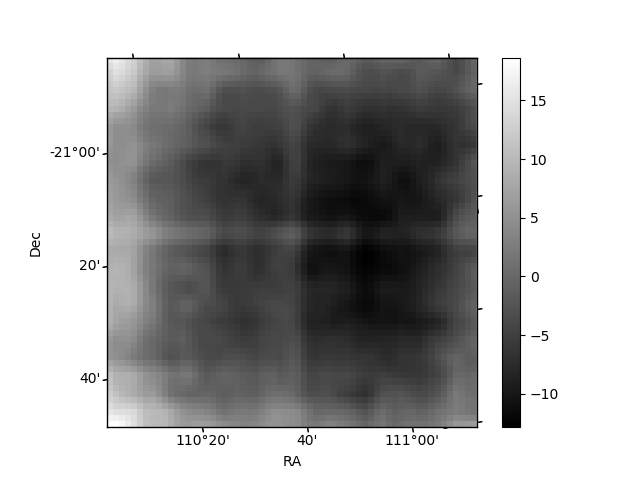

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

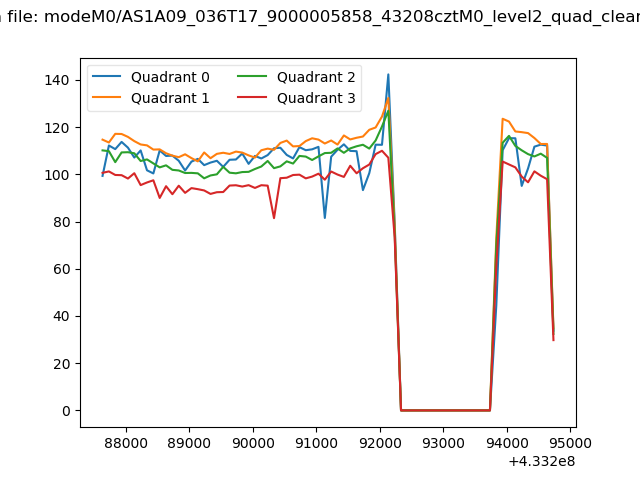

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

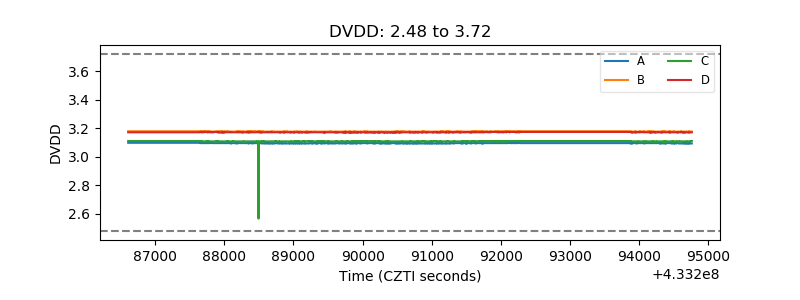

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

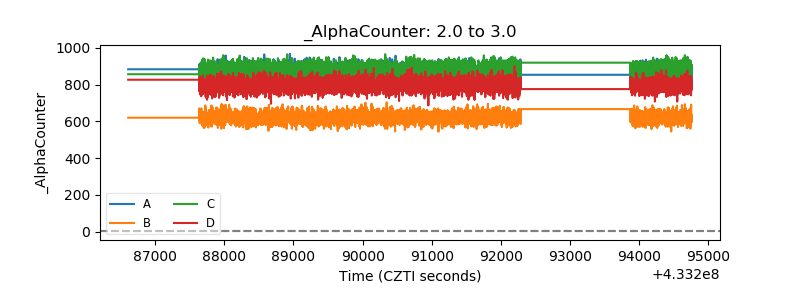

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

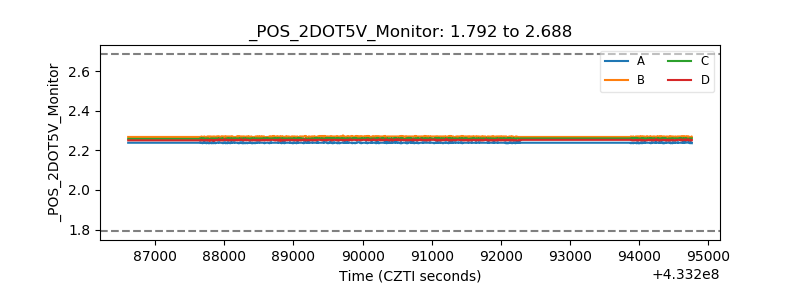

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

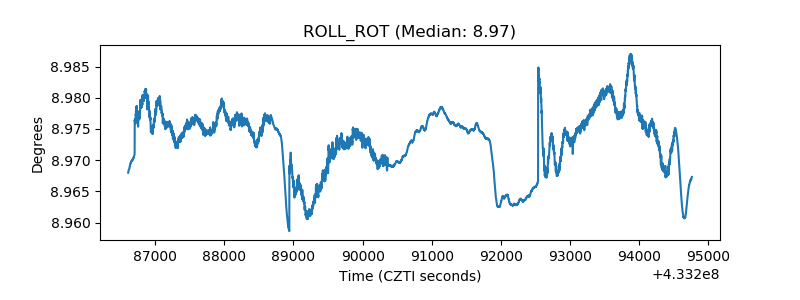

| _ROLL_ROT |  |

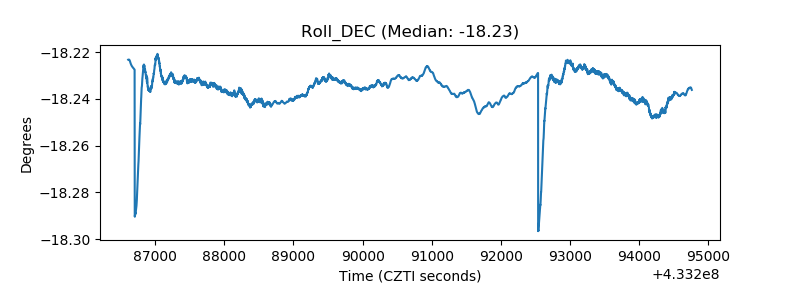

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
