| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T05_9000005894_43657cztM0_level2.fits | modeM0/AS1A12_068T05_9000005894_43657cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,753,822,080 | 122,497,920 |
| Size | 1.6 GB | 116.8 MB |
| Events in quadrant A | 7,817,189 | 1,118,349 |
| Events in quadrant B | 6,466,627 | 1,131,801 |
| Events in quadrant C | 23,440,614 | 574,885 |
| Events in quadrant D | 26,400,594 | 157,481 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 3 |
| B | 0 | 215 | 6 |
| C | 0 | 218 | 2 |
| D | 0 | 218 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31129 | 436 |
| B | 0 | 26738 | 304 |
| C | 0 | 79414 | 2852 |
| D | 0 | 87948 | 2649 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10439 | 293 | 2.806782% |
| B | 10459 | 373 | 3.566307% |
| C | 10233 | 7647 | 74.728819% |
| D | 10241 | 10241 | 100.000000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12102 | 10554 | 121 | 121 | 1.00% | 1.15% |  |
| B | 12103 | 10543 | 199 | 199 | 1.64% | 1.89% |  |
| C | 12103 | 10456 | 7449 | 7449 | 61.55% | 71.24% |  |
| D | 12102 | 10449 | 9142 | 9142 | 75.54% | 87.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1321014 | 5548.66 | 1149 | 1122 | 237.9 |
| A | 15 | 223 | 732624 | 3075.15 | 1149 | 1122 | 237.9 |
| A | 15 | 222 | 387278 | 1623.35 | 1149 | 1122 | 237.9 |
| B | 5 | 235 | 553228 | 2478.48 | 1139 | 1103 | 222.8 |
| B | 12 | 32 | 366189 | 1638.87 | 1139 | 1103 | 222.8 |
| B | 0 | 230 | 335763 | 1502.29 | 1139 | 1103 | 222.8 |
| C | 15 | 142 | 15117056 | 101377.39 | 636 | 637 | 149.1 |
| C | 15 | 158 | 2007661 | 13459.99 | 636 | 637 | 149.1 |
| C | 15 | 126 | 1992706 | 13359.69 | 636 | 637 | 149.1 |
| D | 8 | 192 | 22612930 | 358695.58 | 195 | 187 | 63.0 |
| D | 14 | 242 | 852996 | 13527.71 | 195 | 187 | 63.0 |
| D | 12 | 6 | 266886 | 4230.52 | 195 | 187 | 63.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

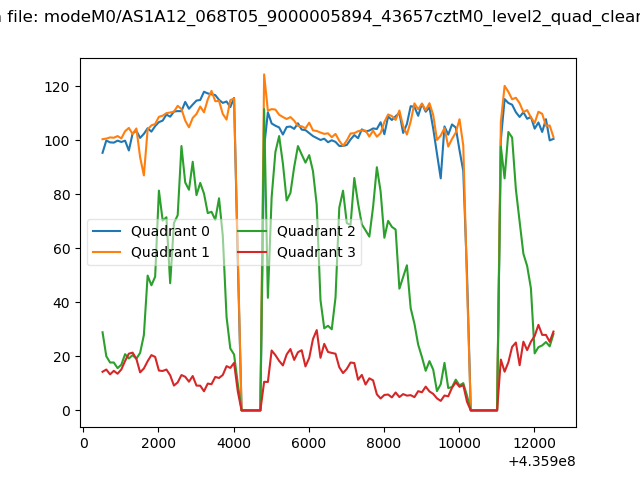

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

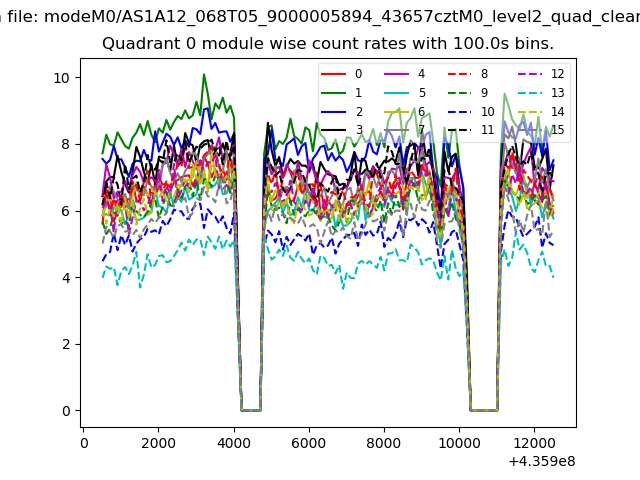

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

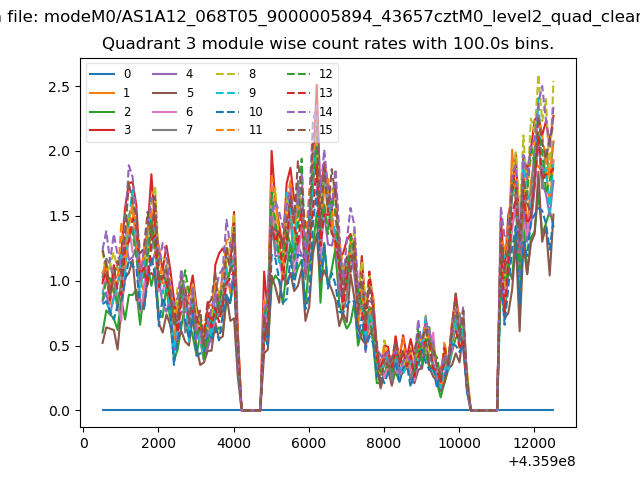

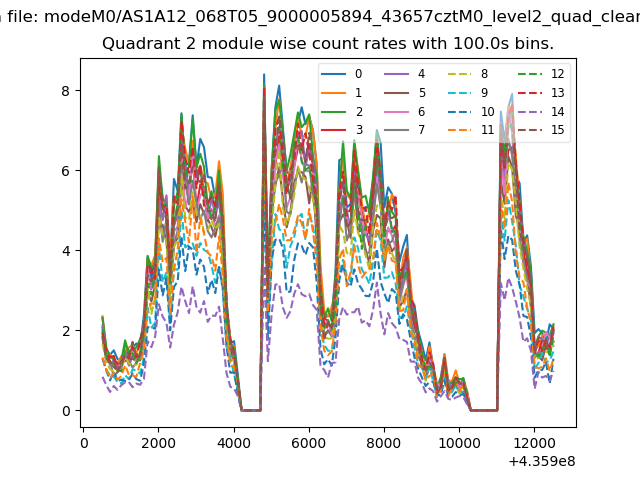

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

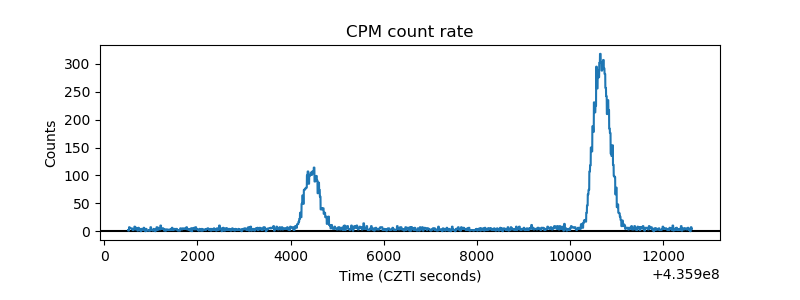

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

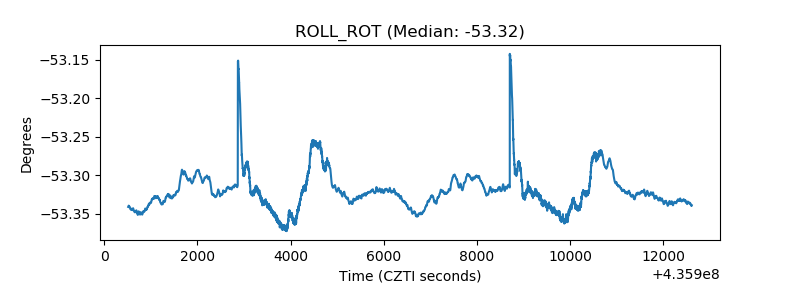

| _ROLL_ROT |  |

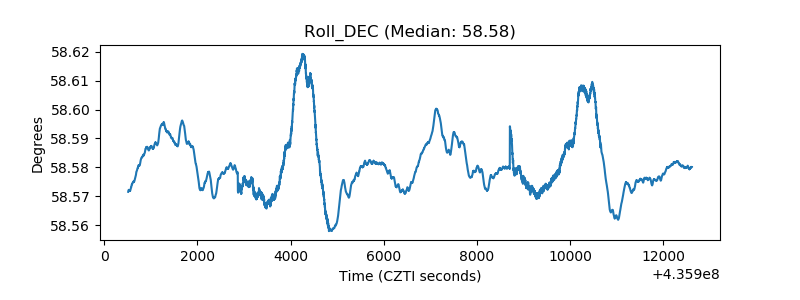

| _Roll_DEC |  |
| _Roll_RA |  |

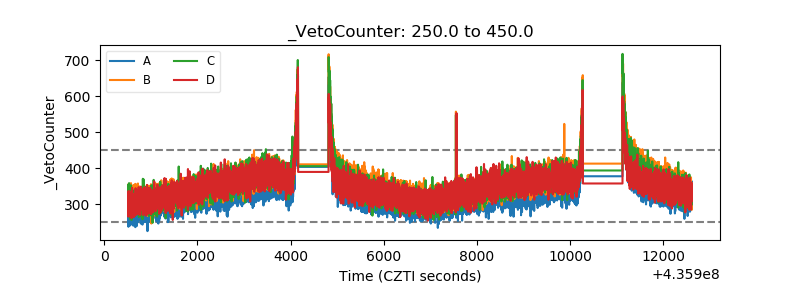

| Veto Counter |  |
