| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_018T01_9000005906_43787cztM0_level2.fits | modeM0/AS1A13_018T01_9000005906_43787cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,034,374,400 | 270,414,720 |
| Size | 1.9 GB | 257.9 MB |
| Events in quadrant A | 15,618,076 | 1,913,337 |
| Events in quadrant B | 14,067,240 | 2,002,775 |
| Events in quadrant C | 22,856,689 | 1,530,689 |
| Events in quadrant D | 21,277,073 | 1,410,639 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 59811 | 3 |
| B | 0 | 54871 | 3 |
| C | 0 | 81136 | 3 |
| D | 0 | 76590 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 390 | 0 |
| B | 0 | 390 | 0 |
| C | 0 | 390 | 0 |
| D | 0 | 390 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19284 | 1480 | 7.674756% |
| B | 19284 | 1318 | 6.834682% |
| C | 19284 | 4582 | 23.760631% |
| D | 19284 | 4381 | 22.718316% |

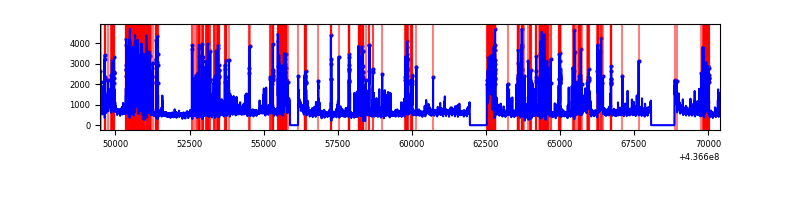

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

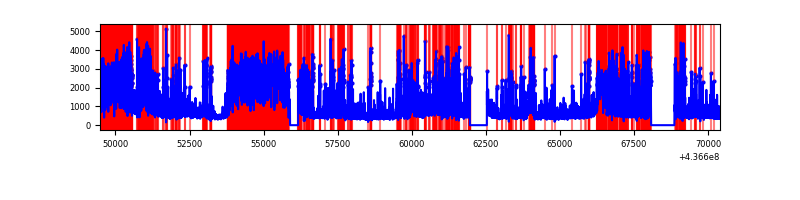

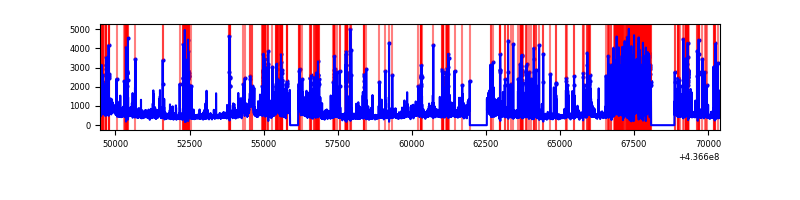

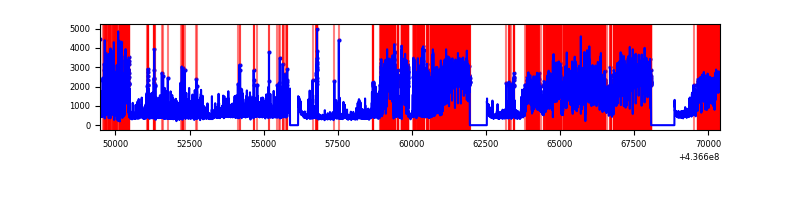

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20924 | 19287 | 912 | 912 | 4.36% | 4.73% |  |
| B | 20924 | 19287 | 771 | 771 | 3.68% | 4.00% |  |
| C | 20924 | 19287 | 4316 | 4316 | 20.63% | 22.38% |  |
| D | 20924 | 19287 | 3594 | 3594 | 17.18% | 18.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 3732103 | 8342.69 | 2141 | 2094 | 447.1 |
| A | 10 | 83 | 2635359 | 5889.67 | 2141 | 2094 | 447.1 |
| A | 13 | 248 | 766166 | 1708.95 | 2141 | 2094 | 447.1 |
| B | 5 | 235 | 1801639 | 4257.86 | 2145 | 2079 | 422.6 |
| B | 7 | 205 | 1753813 | 4144.7 | 2145 | 2079 | 422.6 |
| B | 0 | 200 | 817512 | 1929.36 | 2145 | 2079 | 422.6 |
| C | 15 | 174 | 12654081 | 27548.26 | 1956 | 1968 | 459.3 |
| C | 15 | 158 | 1300309 | 2826.96 | 1956 | 1968 | 459.3 |
| C | 15 | 190 | 368093 | 797.19 | 1956 | 1968 | 459.3 |
| D | 12 | 233 | 4498631 | 8893.95 | 1931 | 1866 | 505.6 |
| D | 5 | 235 | 2719036 | 5374.17 | 1931 | 1866 | 505.6 |
| D | 12 | 2 | 1179326 | 2328.84 | 1931 | 1866 | 505.6 |

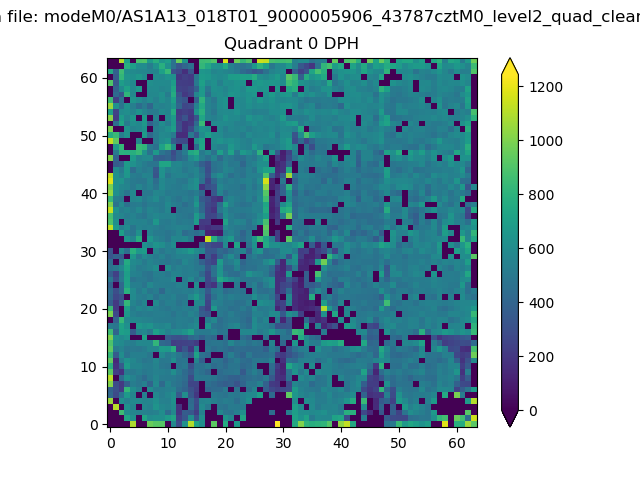

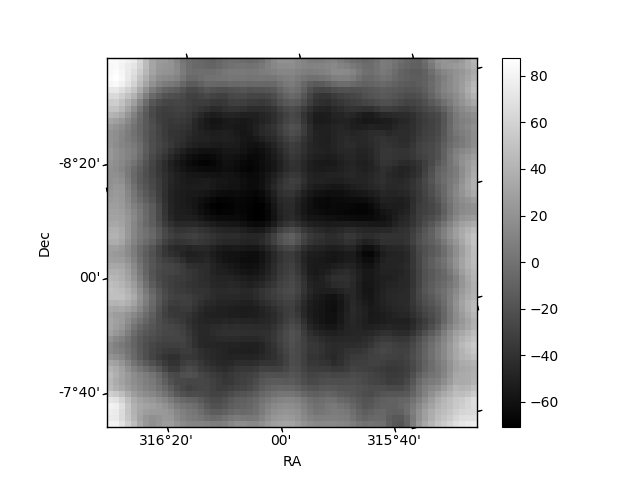

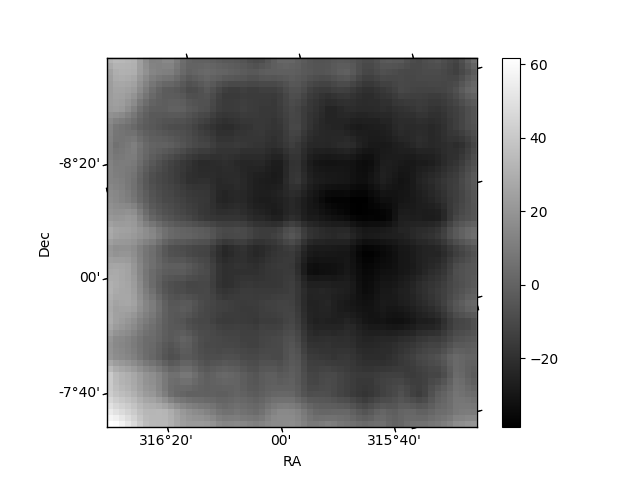

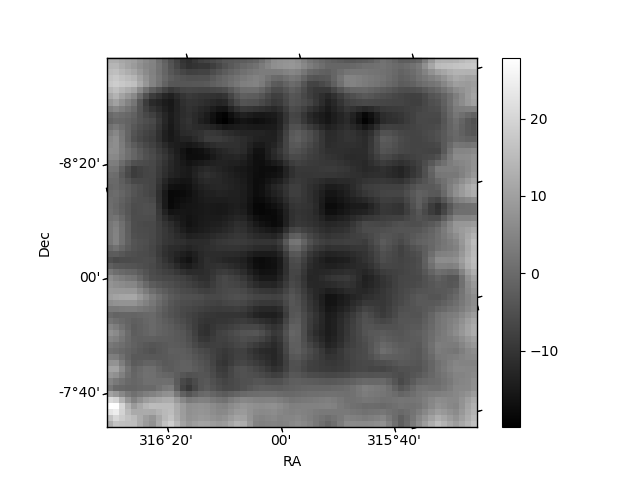

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

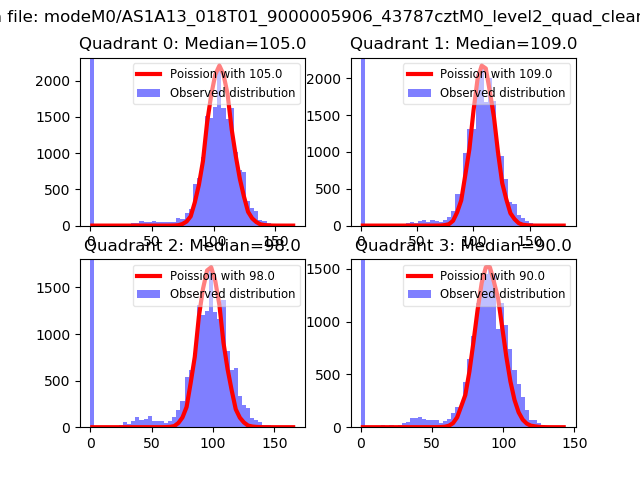

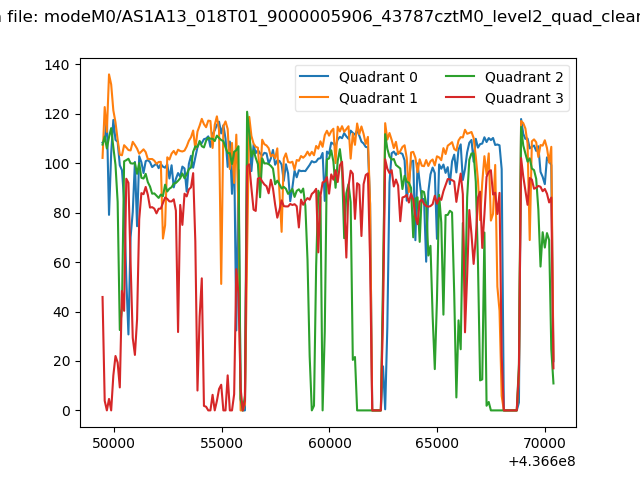

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

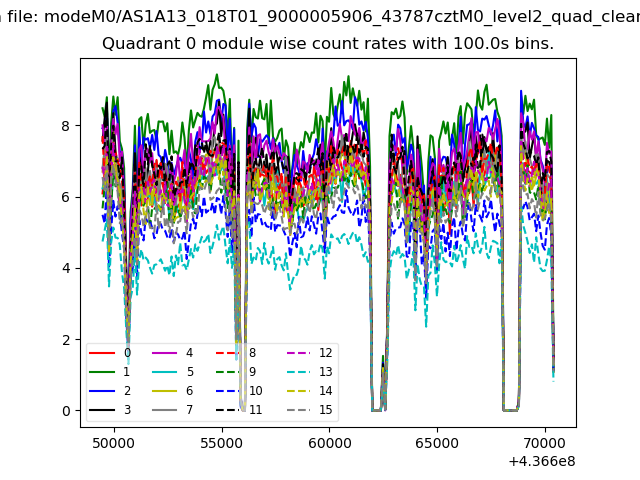

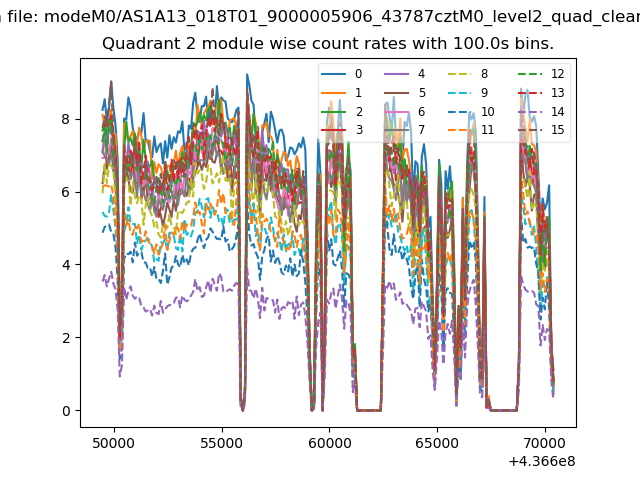

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

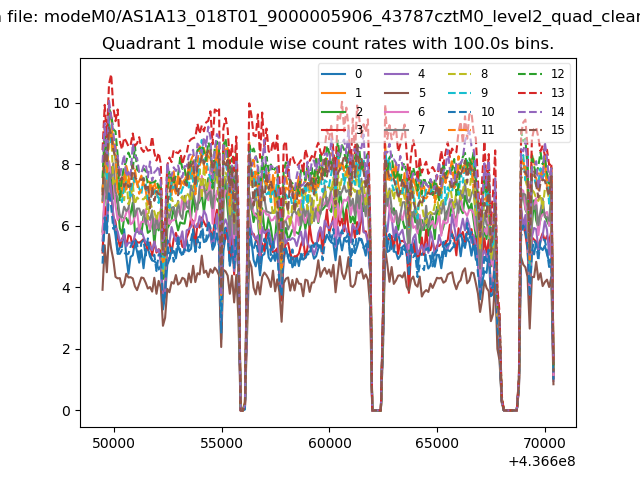

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

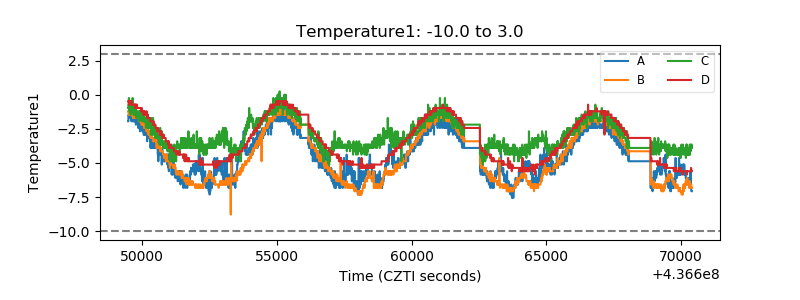

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

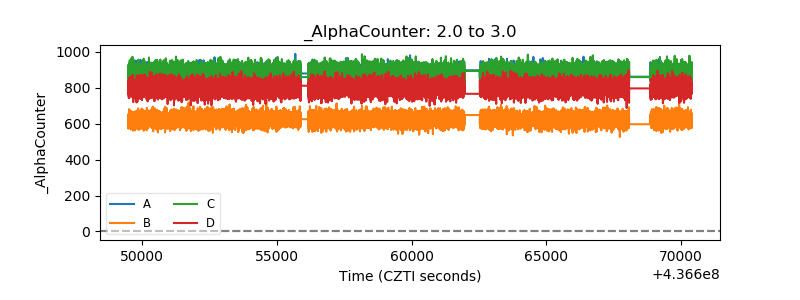

| Alpha Counter |  |

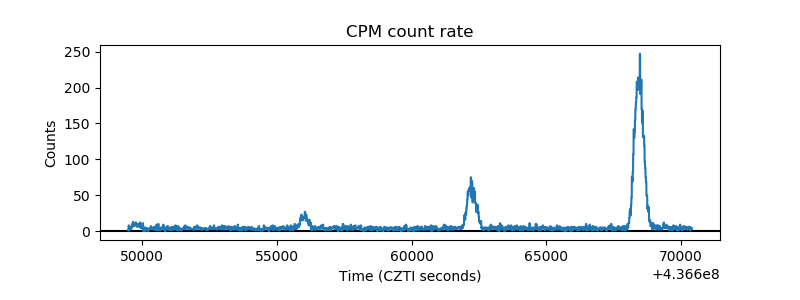

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

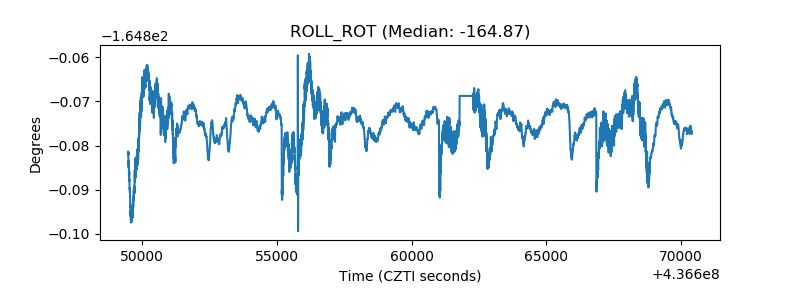

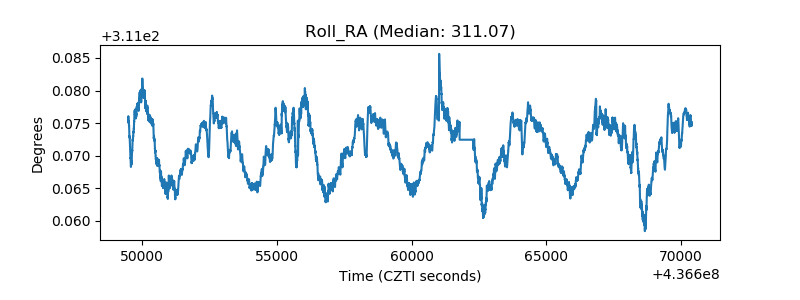

| _ROLL_ROT |  |

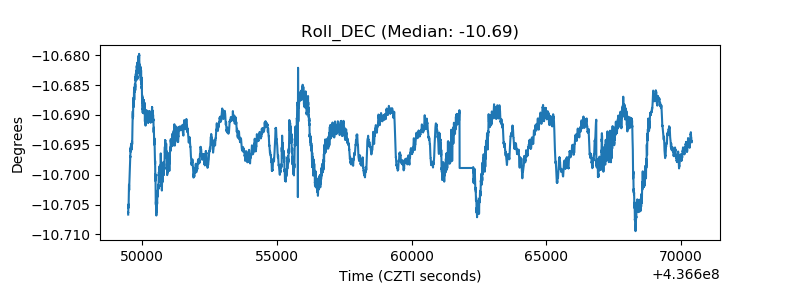

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
