| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T06_9000005924_43994cztM0_level2.fits | modeM0/AS1A13_065T06_9000005924_43994cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,848,320 | 96,837,120 |
| Size | 560.6 MB | 92.4 MB |
| Events in quadrant A | 8,649,207 | 439,861 |
| Events in quadrant B | 3,733,624 | 739,387 |
| Events in quadrant C | 3,397,785 | 720,679 |
| Events in quadrant D | 5,487,571 | 590,622 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30266 | 1 |
| B | 0 | 15377 | 1 |
| C | 0 | 14400 | 1 |
| D | 0 | 20686 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6328 | 2604 | 41.150442% |
| B | 6329 | 313 | 4.945489% |
| C | 6329 | 100 | 1.580028% |
| D | 6329 | 776 | 12.261021% |

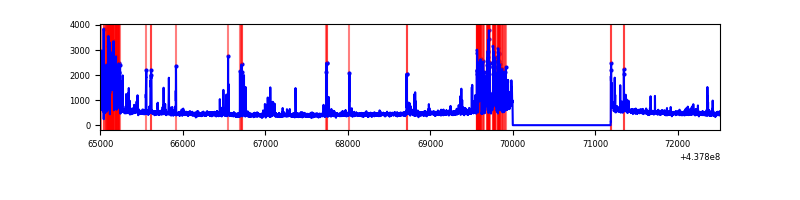

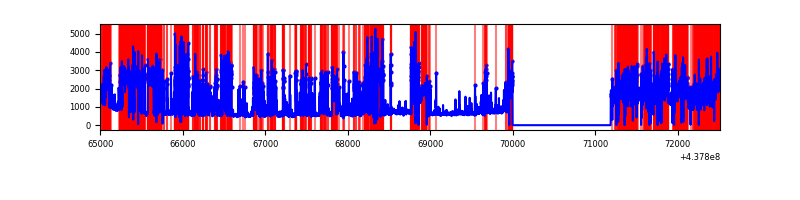

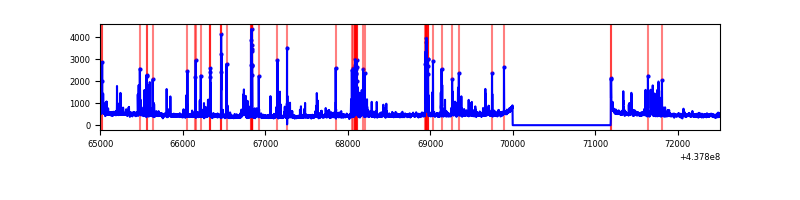

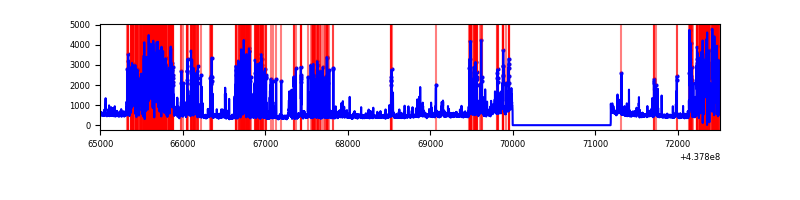

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7518 | 6329 | 1599 | 1599 | 21.27% | 25.26% |  |
| B | 7519 | 6330 | 154 | 154 | 2.05% | 2.43% |  |
| C | 7519 | 6330 | 66 | 66 | 0.88% | 1.04% |  |
| D | 7519 | 6330 | 680 | 680 | 9.04% | 10.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 4615781 | 45070.65 | 492 | 482 | 102.4 |
| A | 14 | 238 | 1384582 | 13516.41 | 492 | 482 | 102.4 |
| A | 10 | 83 | 721076 | 7036.95 | 492 | 482 | 102.4 |
| B | 5 | 172 | 603813 | 4179.39 | 727 | 705 | 144.3 |
| B | 4 | 170 | 89285 | 613.84 | 727 | 705 | 144.3 |
| B | 15 | 36 | 65284 | 447.52 | 727 | 705 | 144.3 |
| C | 14 | 254 | 555205 | 3238.6 | 720 | 726 | 171.2 |
| C | 3 | 233 | 18442 | 103.48 | 720 | 726 | 171.2 |
| C | 9 | 237 | 9088 | 48.84 | 720 | 726 | 171.2 |
| D | 5 | 235 | 1870881 | 10935.27 | 673 | 652 | 171.0 |
| D | 1 | 52 | 409231 | 2388.97 | 673 | 652 | 171.0 |
| D | 13 | 249 | 164688 | 959.12 | 673 | 652 | 171.0 |

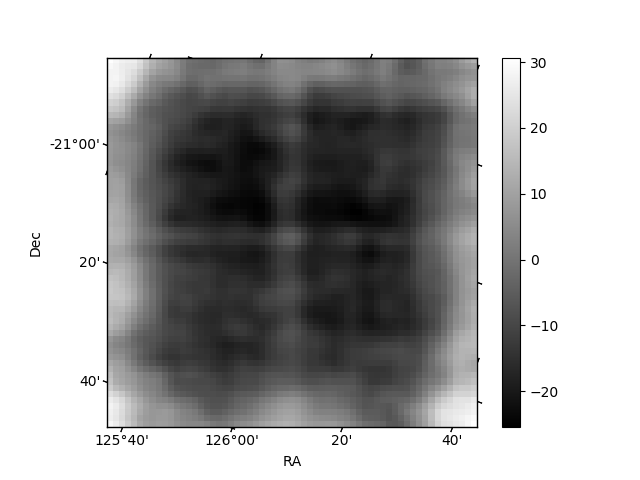

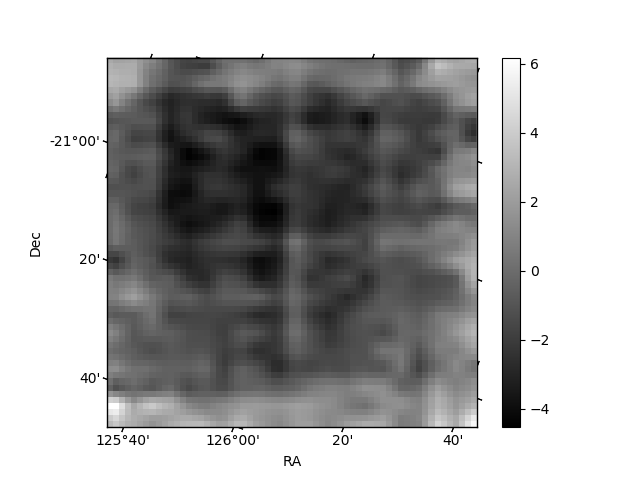

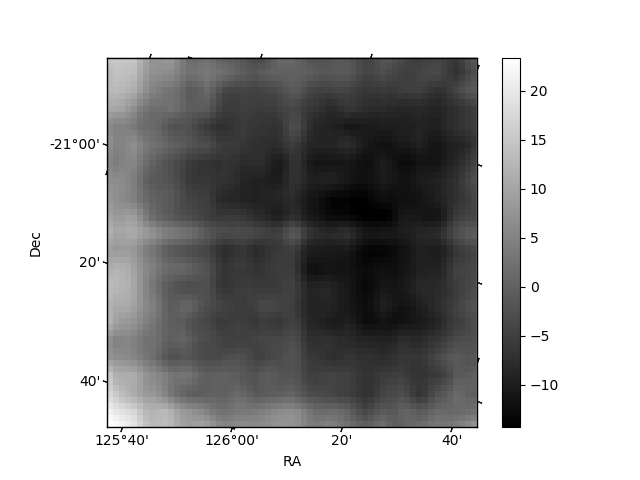

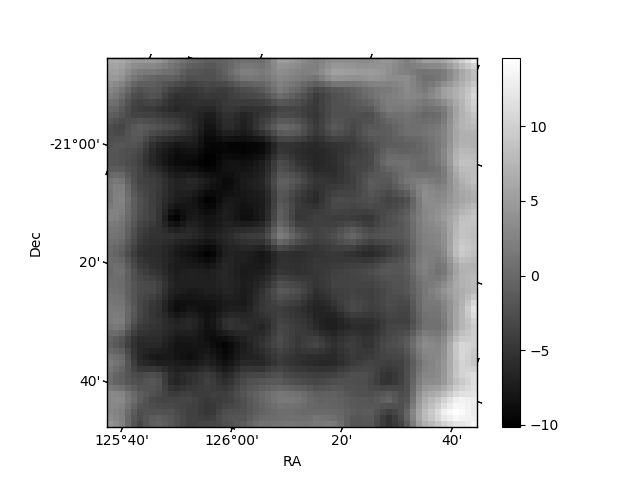

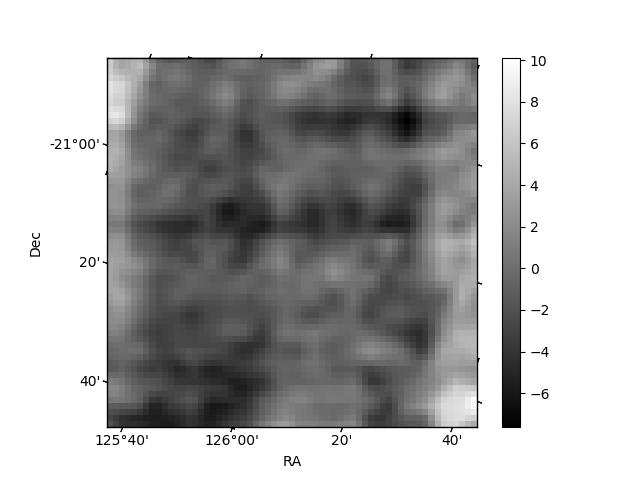

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

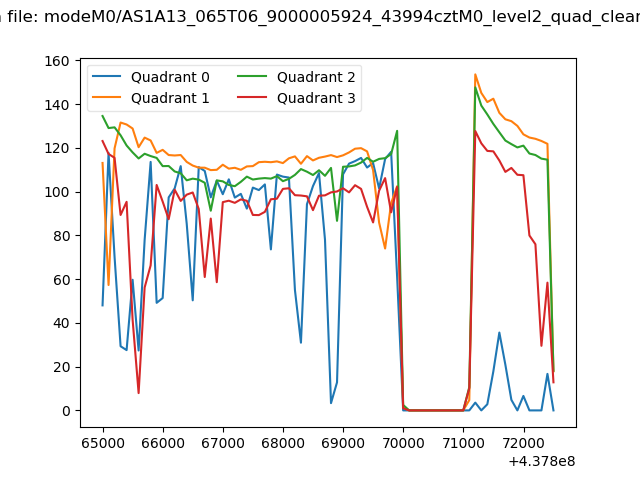

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

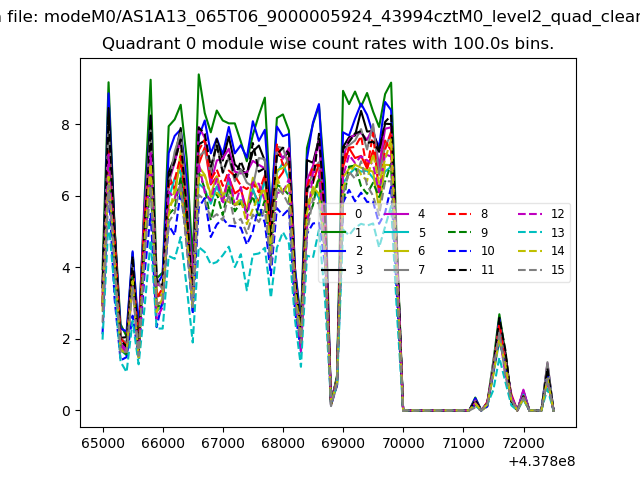

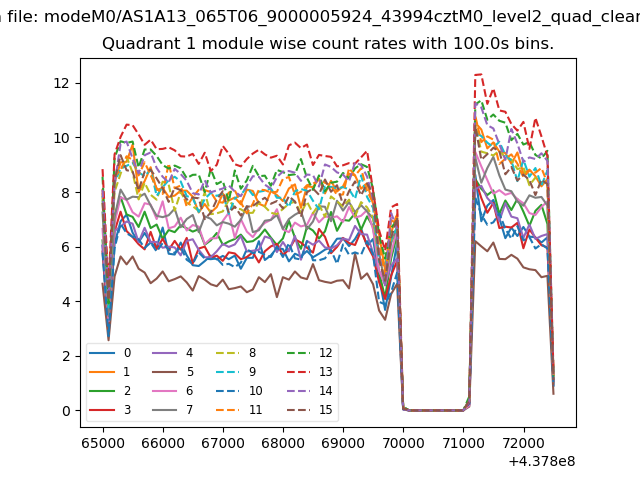

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

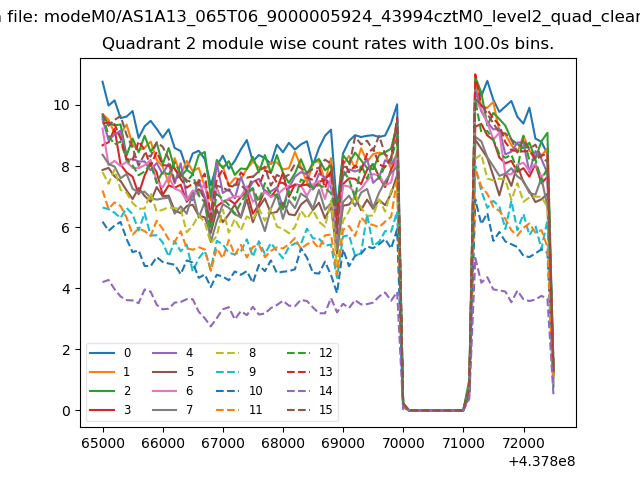

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

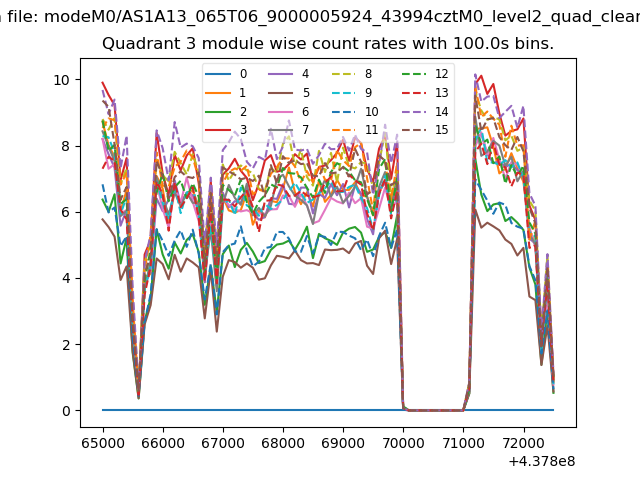

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

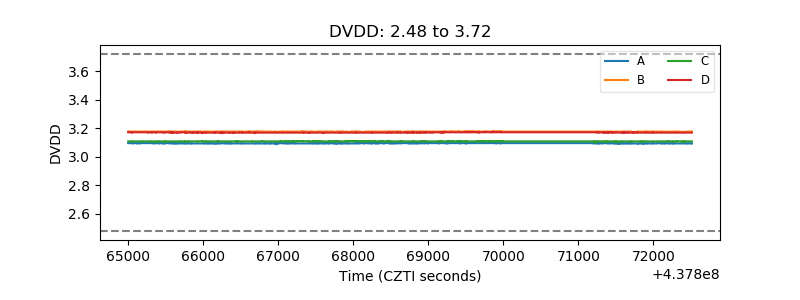

| D_VDD |  |

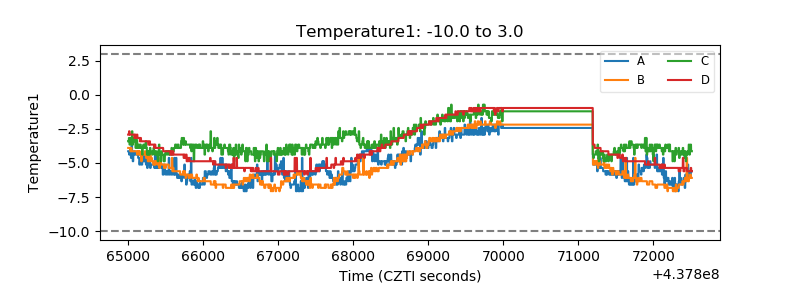

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

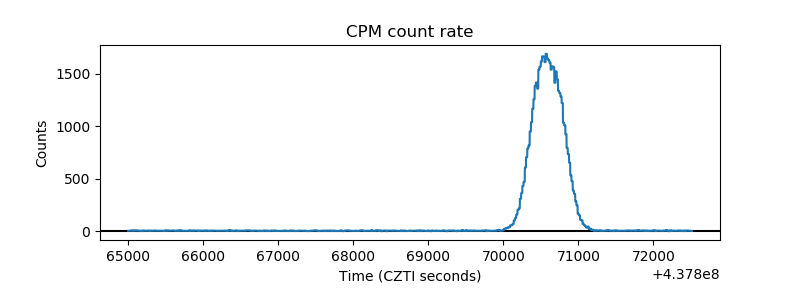

| _CPM_Rate |  |

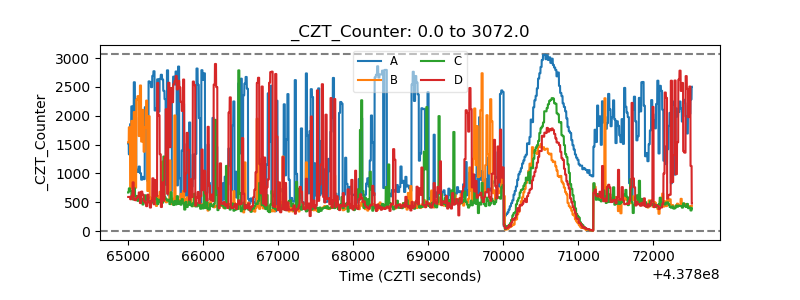

| CZT Counter |  |
| +2.5 Volts monitor |  |

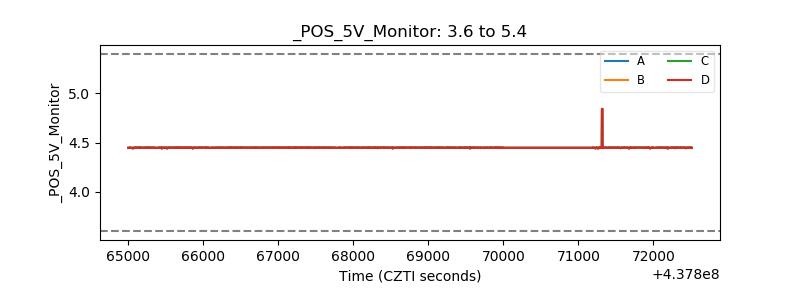

| +5 Volts monitor |  |

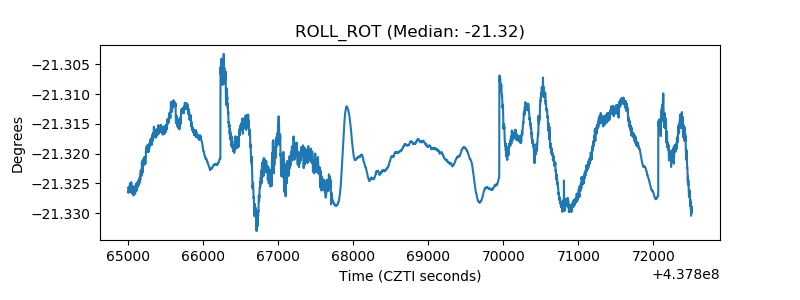

| _ROLL_ROT |  |

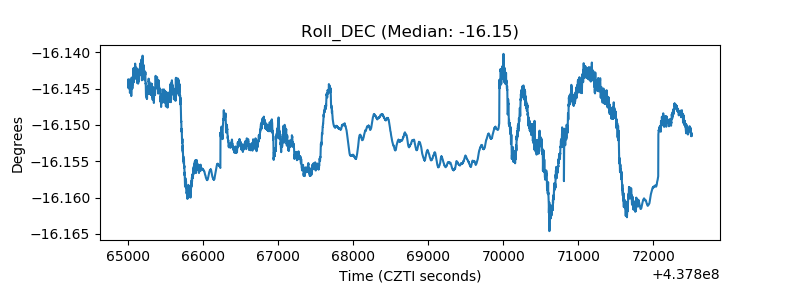

| _Roll_DEC |  |

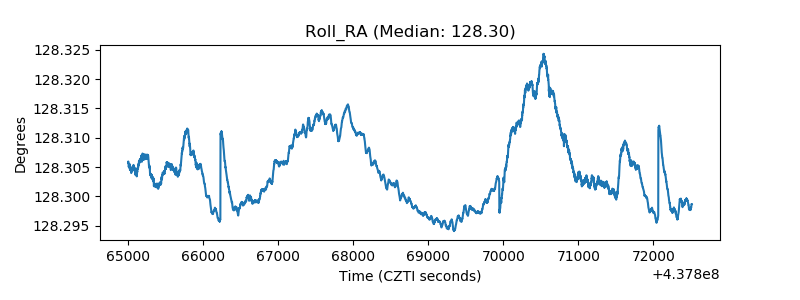

| _Roll_RA |  |

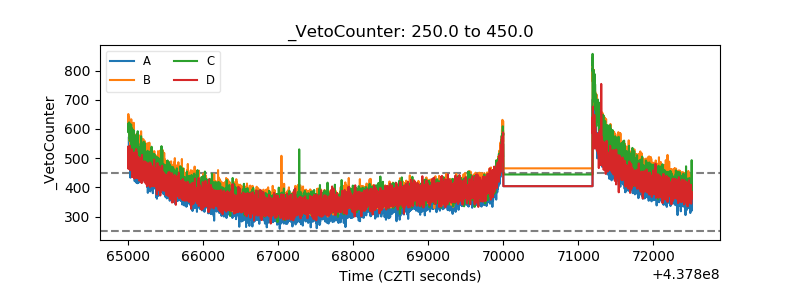

| Veto Counter |  |
