| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_034T03_9000005926_43998cztM0_level2.fits | modeM0/AS1A13_034T03_9000005926_43998cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,915,840 | 109,537,920 |
| Size | 481.5 MB | 104.5 MB |
| Events in quadrant A | 6,071,301 | 677,703 |
| Events in quadrant B | 3,446,357 | 773,734 |
| Events in quadrant C | 3,752,871 | 742,722 |
| Events in quadrant D | 4,883,972 | 642,302 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23224 | 2 |
| B | 0 | 14830 | 2 |
| C | 0 | 15668 | 2 |
| D | 0 | 19139 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6892 | 892 | 12.942542% |
| B | 6893 | 245 | 3.554330% |
| C | 6893 | 214 | 3.104599% |
| D | 6892 | 489 | 7.095183% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8807 | 6894 | 500 | 500 | 5.68% | 7.25% |  |
| B | 8808 | 6895 | 10 | 10 | 0.11% | 0.15% |  |
| C | 8808 | 6895 | 59 | 59 | 0.67% | 0.86% |  |
| D | 8807 | 6894 | 263 | 263 | 2.99% | 3.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1742119 | 10932.06 | 766 | 747 | 159.3 |
| A | 10 | 83 | 1214357 | 7618.85 | 766 | 747 | 159.3 |
| A | 15 | 223 | 124768 | 778.58 | 766 | 747 | 159.3 |
| B | 5 | 172 | 89457 | 557.31 | 805 | 778 | 159.1 |
| B | 4 | 171 | 36628 | 225.3 | 805 | 778 | 159.1 |
| B | 4 | 173 | 28310 | 173.03 | 805 | 778 | 159.1 |
| C | 14 | 254 | 367570 | 1952.91 | 800 | 804 | 187.8 |
| C | 3 | 233 | 216641 | 1149.26 | 800 | 804 | 187.8 |
| C | 2 | 14 | 47618 | 249.27 | 800 | 804 | 187.8 |
| D | 1 | 52 | 1447666 | 7333.83 | 774 | 747 | 197.3 |
| D | 13 | 171 | 125056 | 630.07 | 774 | 747 | 197.3 |
| D | 13 | 249 | 88704 | 445.82 | 774 | 747 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

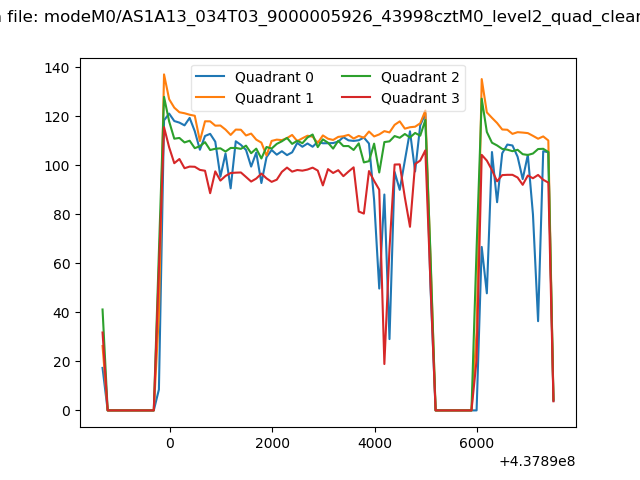

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

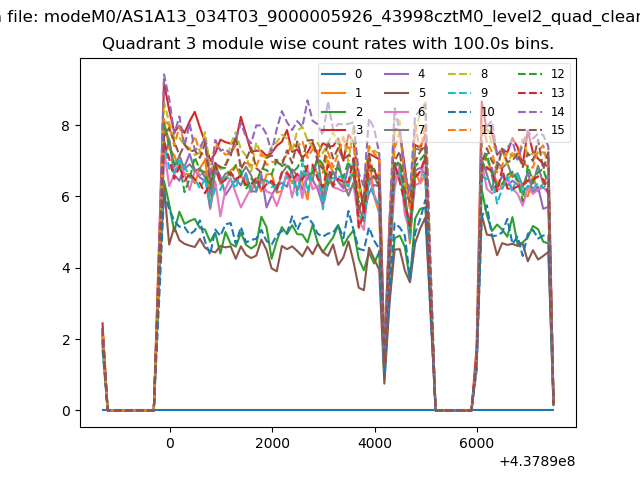

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

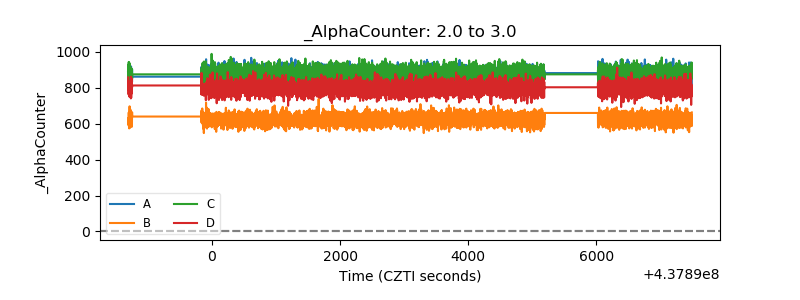

| Alpha Counter |  |

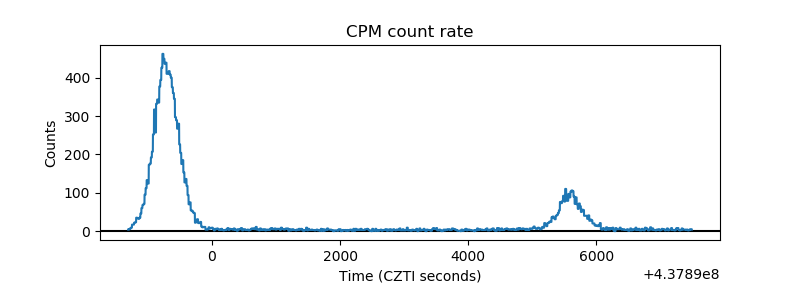

| _CPM_Rate |  |
| CZT Counter |  |

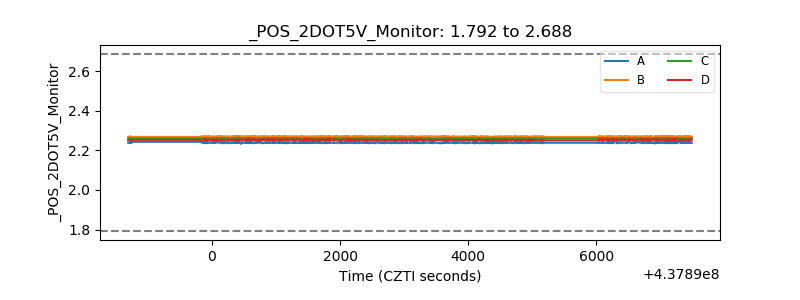

| +2.5 Volts monitor |  |

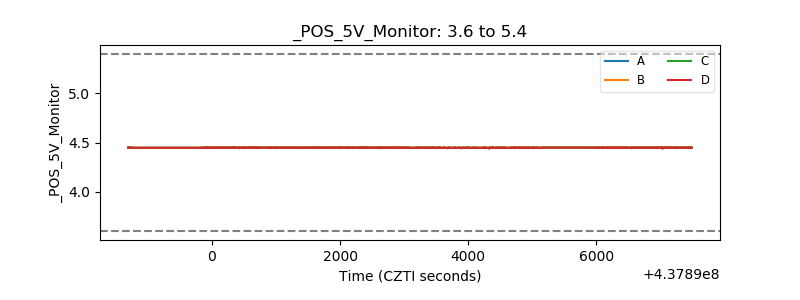

| +5 Volts monitor |  |

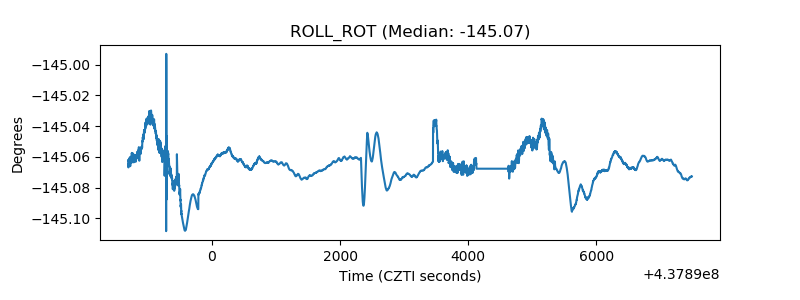

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

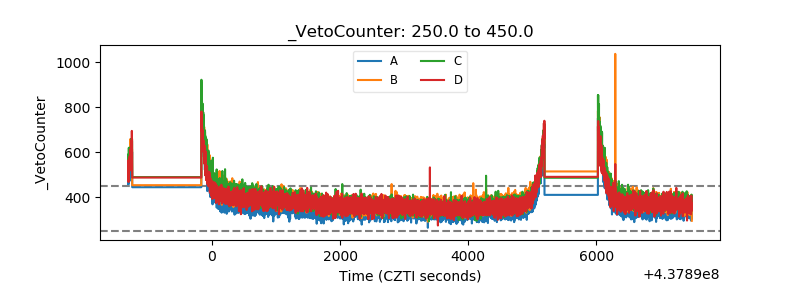

| Veto Counter |  |
