| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000005930_44009cztM0_level2.fits | modeM0/AS1A13_037T01_9000005930_44009cztM0_level2_quad_clean.evt |
| Size (bytes) | 422,547,840 | 110,240,640 |
| Size | 403.0 MB | 105.1 MB |
| Events in quadrant A | 4,569,561 | 723,554 |
| Events in quadrant B | 3,159,826 | 775,284 |
| Events in quadrant C | 3,445,470 | 740,347 |
| Events in quadrant D | 3,970,982 | 653,864 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17807 | 2 |
| B | 0 | 13531 | 2 |
| C | 0 | 14376 | 2 |
| D | 0 | 16195 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6376 | 211 | 3.309285% |
| B | 6376 | 38 | 0.595985% |
| C | 6376 | 25 | 0.392095% |
| D | 6376 | 154 | 2.415307% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7596 | 6377 | 96 | 96 | 1.26% | 1.51% |  |
| B | 7596 | 6377 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7596 | 6377 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7596 | 6377 | 81 | 81 | 1.07% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1202707 | 8078.55 | 726 | 713 | 148.8 |
| A | 14 | 238 | 395637 | 2654.27 | 726 | 713 | 148.8 |
| A | 7 | 3 | 123769 | 827.05 | 726 | 713 | 148.8 |
| B | 0 | 213 | 89988 | 617.63 | 743 | 722 | 144.5 |
| B | 0 | 155 | 23765 | 159.44 | 743 | 722 | 144.5 |
| B | 4 | 170 | 23039 | 154.41 | 743 | 722 | 144.5 |
| C | 3 | 233 | 567218 | 3297.1 | 731 | 736 | 171.8 |
| C | 12 | 16 | 16552 | 92.05 | 731 | 736 | 171.8 |
| C | 14 | 254 | 5352 | 26.87 | 731 | 736 | 171.8 |
| D | 1 | 52 | 626352 | 3442.76 | 717 | 695 | 181.7 |
| D | 2 | 249 | 232524 | 1275.67 | 717 | 695 | 181.7 |
| D | 13 | 171 | 142711 | 781.46 | 717 | 695 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

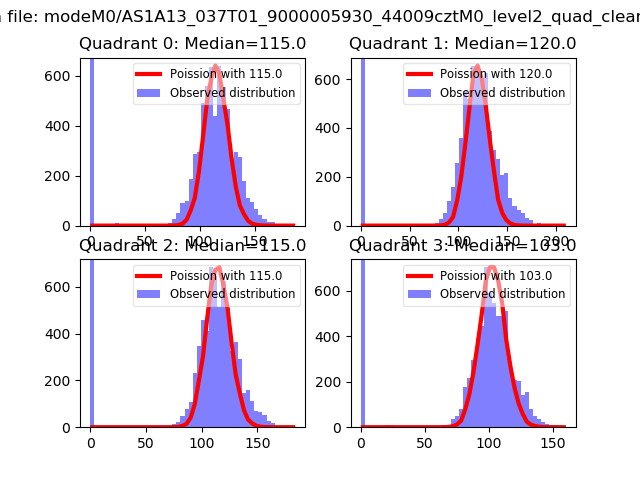

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

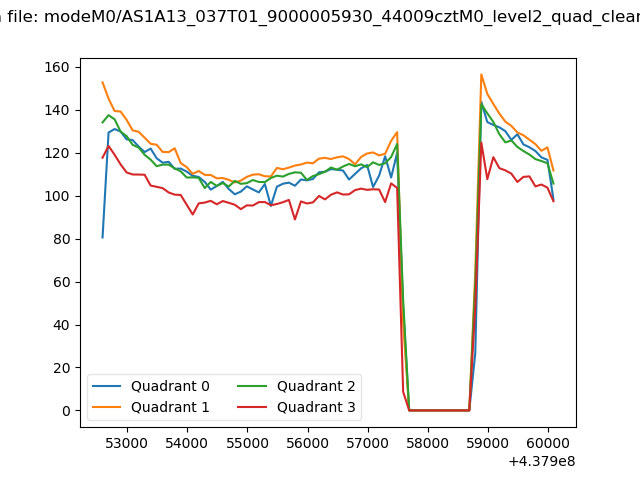

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

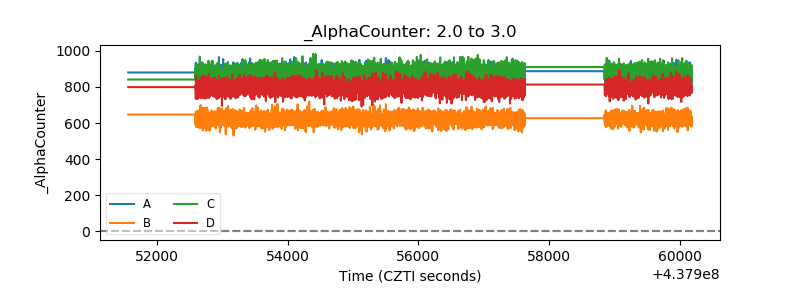

| Alpha Counter |  |

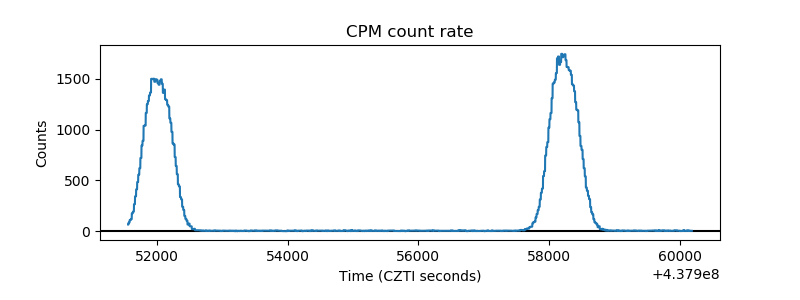

| _CPM_Rate |  |
| CZT Counter |  |

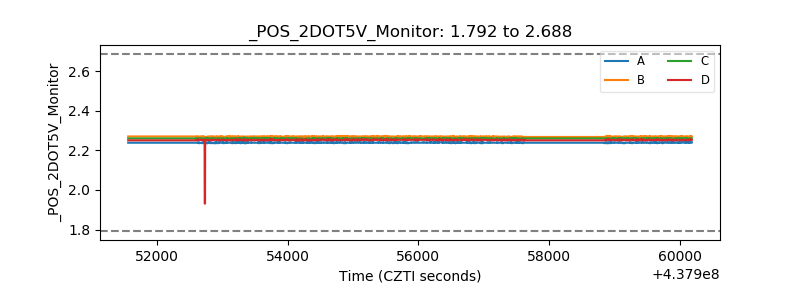

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

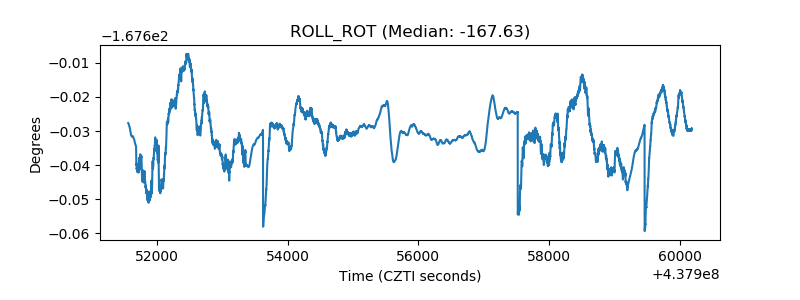

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
