| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T09_9000005968_44200cztM0_level2.fits | modeM0/AS1A13_074T09_9000005968_44200cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,298,560 | 108,348,480 |
| Size | 546.7 MB | 103.3 MB |
| Events in quadrant A | 6,492,932 | 678,253 |
| Events in quadrant B | 4,296,873 | 773,757 |
| Events in quadrant C | 3,311,000 | 767,021 |
| Events in quadrant D | 6,616,758 | 608,575 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23917 | 2 |
| B | 0 | 17005 | 2 |
| C | 0 | 14189 | 3 |
| D | 0 | 24129 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6498 | 1017 | 15.650970% |
| B | 6498 | 369 | 5.678670% |
| C | 6497 | 96 | 1.477605% |
| D | 6497 | 970 | 14.929968% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7633 | 6499 | 576 | 576 | 7.55% | 8.86% |  |
| B | 7633 | 6499 | 118 | 118 | 1.55% | 1.82% |  |
| C | 7632 | 6498 | 10 | 10 | 0.13% | 0.15% |  |
| D | 7632 | 6498 | 737 | 737 | 9.66% | 11.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1826166 | 11463.79 | 767 | 753 | 159.2 |
| A | 10 | 83 | 1588442 | 9970.86 | 767 | 753 | 159.2 |
| A | 0 | 243 | 49197 | 304.23 | 767 | 753 | 159.2 |
| B | 5 | 172 | 297870 | 1937.1 | 789 | 768 | 153.4 |
| B | 5 | 255 | 246816 | 1604.23 | 789 | 768 | 153.4 |
| B | 0 | 219 | 132334 | 857.81 | 789 | 768 | 153.4 |
| C | 14 | 254 | 122492 | 658.12 | 790 | 796 | 184.9 |
| C | 4 | 254 | 56224 | 299.75 | 790 | 796 | 184.9 |
| C | 3 | 233 | 30894 | 162.77 | 790 | 796 | 184.9 |
| D | 1 | 52 | 1455881 | 7779.13 | 727 | 705 | 187.1 |
| D | 2 | 249 | 597747 | 3191.69 | 727 | 705 | 187.1 |
| D | 12 | 16 | 450117 | 2402.48 | 727 | 705 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

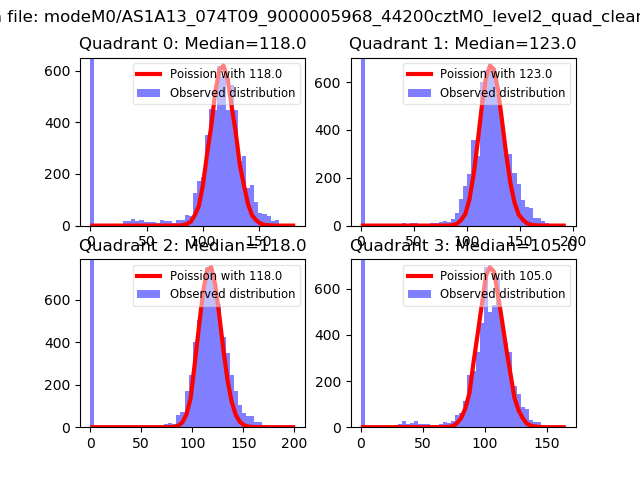

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

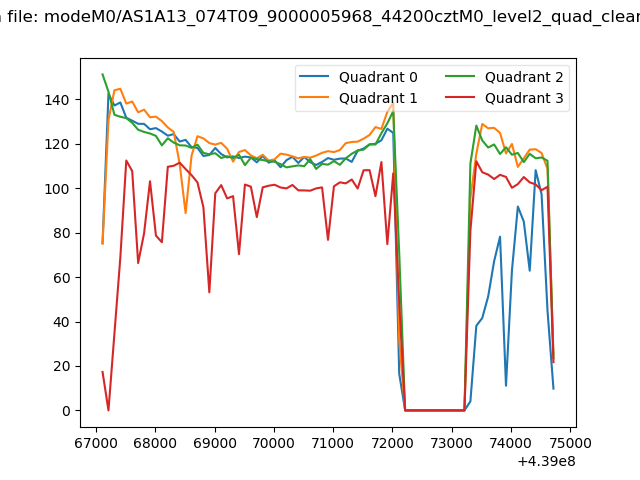

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

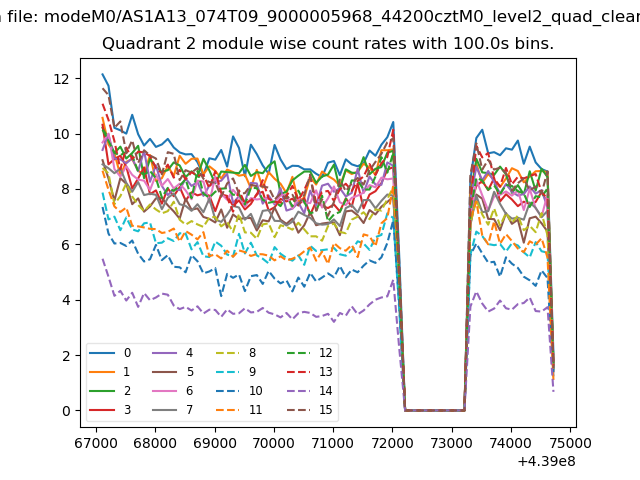

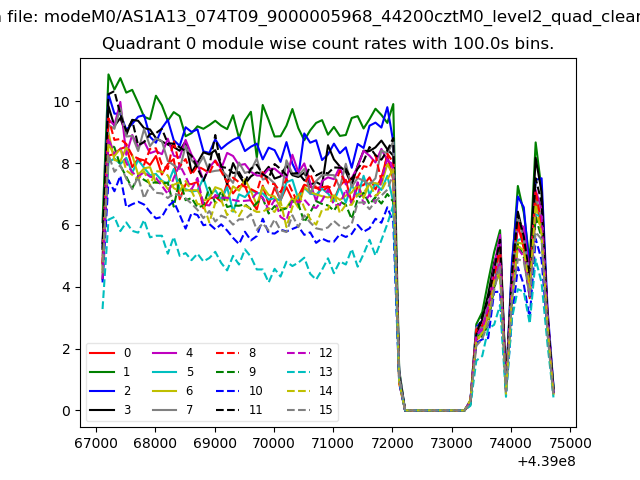

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

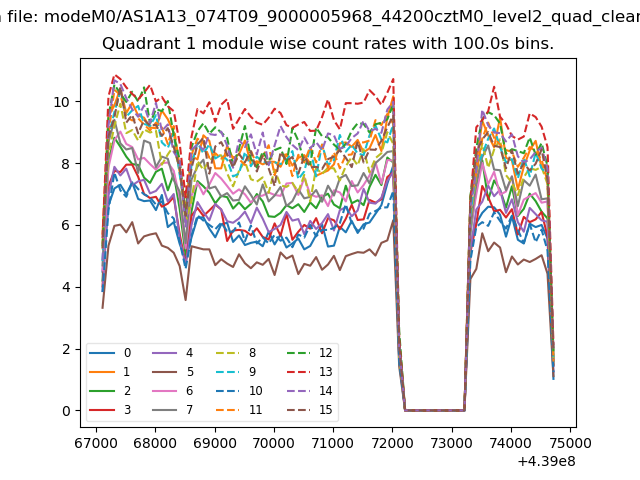

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

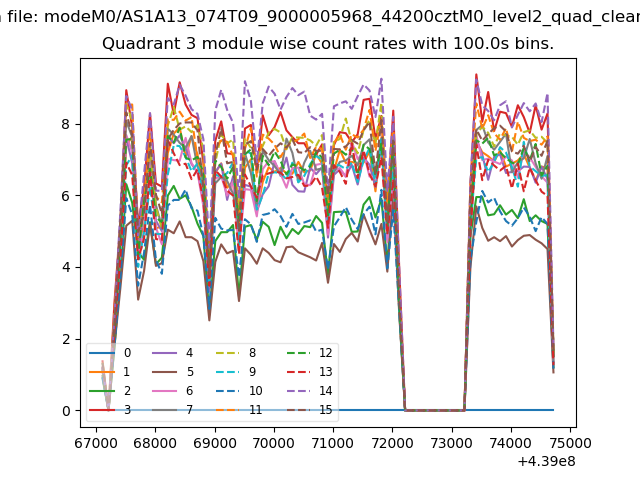

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

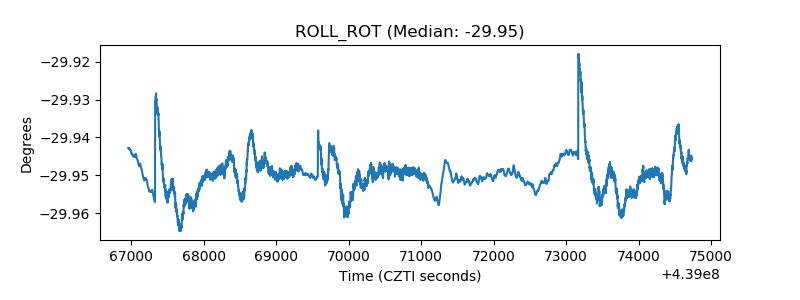

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

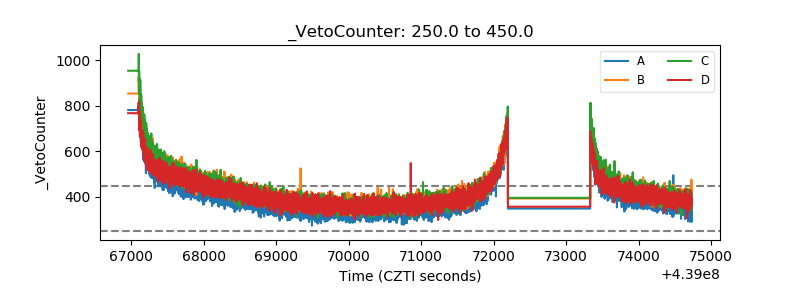

| Veto Counter |  |
