| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T09_9000005992_44343cztM0_level2.fits | modeM0/AS1A13_004T09_9000005992_44343cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,069,120 | 115,660,800 |
| Size | 420.6 MB | 110.3 MB |
| Events in quadrant A | 5,198,917 | 768,345 |
| Events in quadrant B | 3,629,313 | 803,073 |
| Events in quadrant C | 3,309,098 | 766,258 |
| Events in quadrant D | 3,683,075 | 709,910 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21023 | 3 |
| B | 0 | 14843 | 3 |
| C | 0 | 14196 | 3 |
| D | 0 | 15190 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6518 | 412 | 6.320957% |
| B | 6518 | 268 | 4.111691% |
| C | 6518 | 155 | 2.378030% |
| D | 6518 | 193 | 2.961031% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7643 | 6518 | 72 | 72 | 0.94% | 1.10% |  |
| B | 7643 | 6518 | 46 | 46 | 0.60% | 0.71% |  |
| C | 7643 | 6519 | 39 | 39 | 0.51% | 0.60% |  |
| D | 7643 | 6519 | 63 | 63 | 0.82% | 0.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1667650 | 10192.29 | 795 | 780 | 163.5 |
| A | 13 | 248 | 421522 | 2572.68 | 795 | 780 | 163.5 |
| A | 0 | 243 | 25375 | 150.39 | 795 | 780 | 163.5 |
| B | 5 | 255 | 123289 | 789.05 | 793 | 770 | 155.3 |
| B | 0 | 219 | 99939 | 638.67 | 793 | 770 | 155.3 |
| B | 0 | 155 | 62699 | 398.83 | 793 | 770 | 155.3 |
| C | 14 | 96 | 152067 | 830.27 | 780 | 783 | 182.2 |
| C | 14 | 254 | 80281 | 436.3 | 780 | 783 | 182.2 |
| C | 3 | 233 | 19969 | 105.3 | 780 | 783 | 182.2 |
| D | 2 | 153 | 175265 | 900.25 | 787 | 765 | 193.8 |
| D | 13 | 249 | 91653 | 468.89 | 787 | 765 | 193.8 |
| D | 9 | 102 | 83715 | 427.94 | 787 | 765 | 193.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

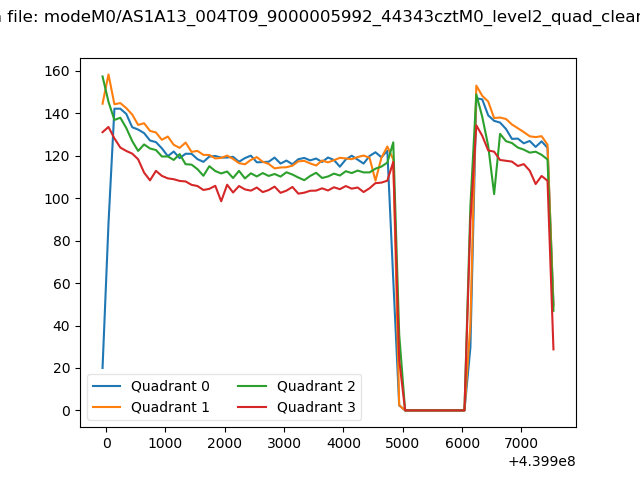

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

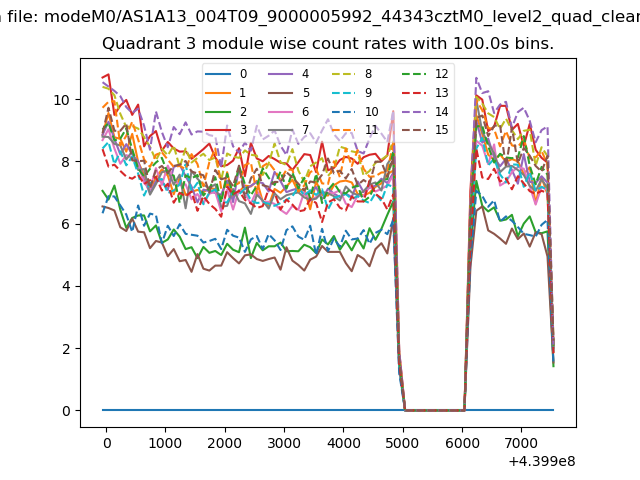

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

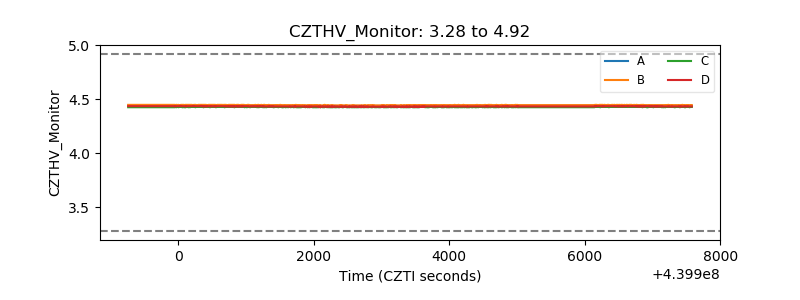

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

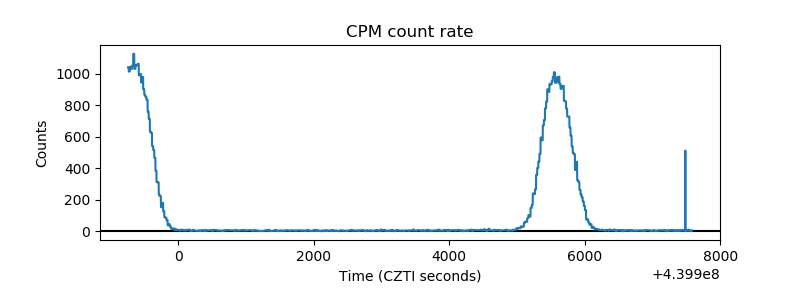

| _CPM_Rate |  |
| CZT Counter |  |

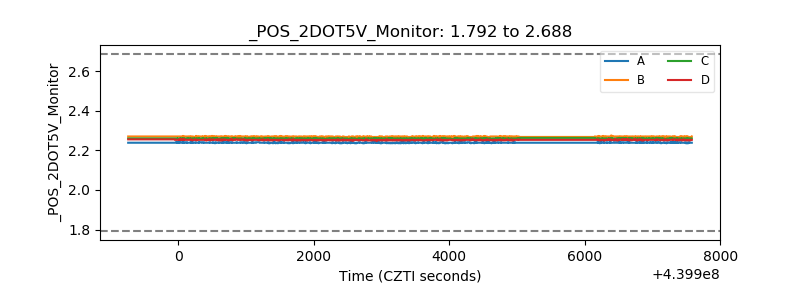

| +2.5 Volts monitor |  |

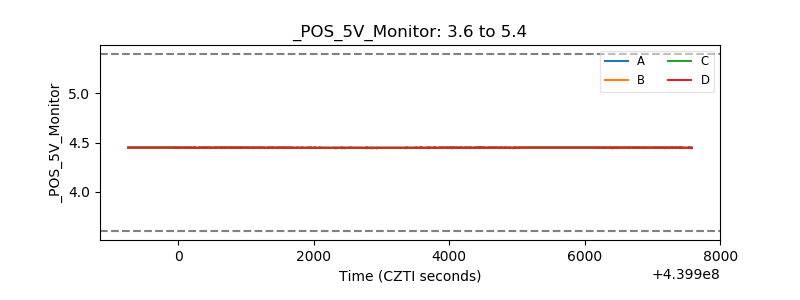

| +5 Volts monitor |  |

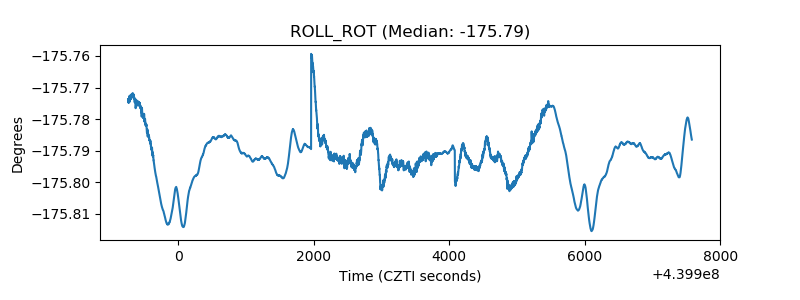

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

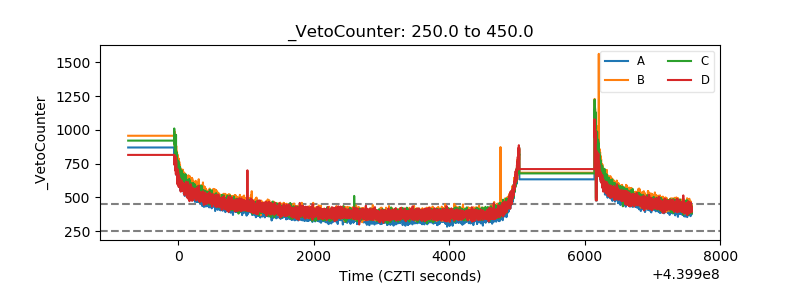

| Veto Counter |  |
