| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T09_9000005992_44345cztM0_level2.fits | modeM0/AS1A13_004T09_9000005992_44345cztM0_level2_quad_clean.evt |
| Size (bytes) | 158,204,160 | 38,376,000 |
| Size | 150.9 MB | 36.6 MB |
| Events in quadrant A | 1,761,222 | 261,969 |
| Events in quadrant B | 1,249,424 | 266,572 |
| Events in quadrant C | 1,056,220 | 250,923 |
| Events in quadrant D | 1,617,971 | 225,352 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6988 | 0 |
| B | 0 | 5077 | 0 |
| C | 0 | 4616 | 0 |
| D | 0 | 6202 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2173 | 40 | 1.840773% |
| B | 2174 | 24 | 1.103956% |
| C | 2174 | 13 | 0.597976% |
| D | 2174 | 125 | 5.749770% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2173 | 2173 | 27 | 27 | 1.24% | 1.24% |  |
| B | 2174 | 2174 | 14 | 14 | 0.64% | 0.64% |  |
| C | 2174 | 2174 | 13 | 13 | 0.60% | 0.60% |  |
| D | 2174 | 2174 | 120 | 120 | 5.52% | 5.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 567118 | 10543.15 | 254 | 250 | 53.8 |
| A | 13 | 248 | 181645 | 3373.76 | 254 | 250 | 53.8 |
| A | 7 | 3 | 17874 | 327.79 | 254 | 250 | 53.8 |
| B | 7 | 221 | 56539 | 1134.62 | 248 | 241 | 49.6 |
| B | 0 | 190 | 38223 | 765.48 | 248 | 241 | 49.6 |
| B | 0 | 229 | 30457 | 608.97 | 248 | 241 | 49.6 |
| C | 14 | 254 | 60844 | 1042.67 | 243 | 244 | 58.1 |
| C | 1 | 3 | 31384 | 535.79 | 243 | 244 | 58.1 |
| C | 3 | 233 | 15956 | 270.34 | 243 | 244 | 58.1 |
| D | 2 | 153 | 277433 | 4460.34 | 243 | 236 | 62.1 |
| D | 5 | 222 | 72743 | 1166.7 | 243 | 236 | 62.1 |
| D | 12 | 233 | 68876 | 1104.48 | 243 | 236 | 62.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

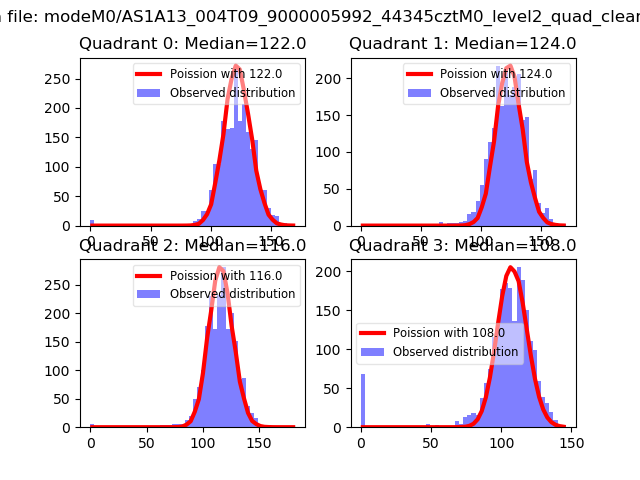

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

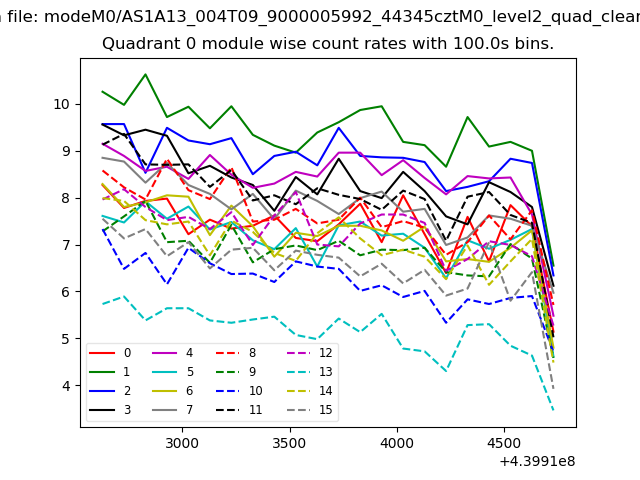

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

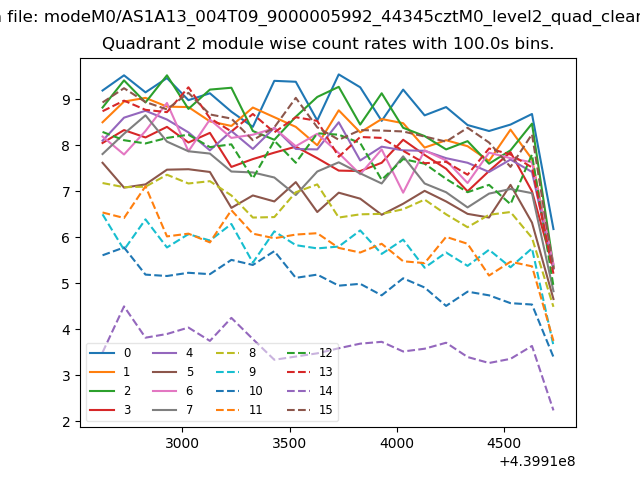

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

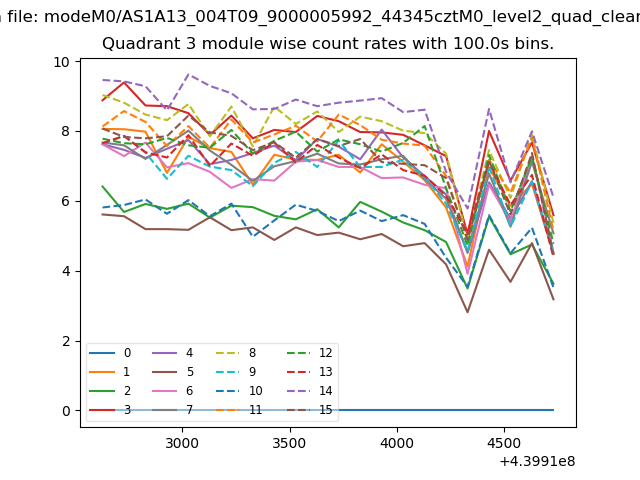

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
