| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_008T06_9000005994_44368cztM0_level2.fits | modeM0/AS1A13_008T06_9000005994_44368cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,720,433,600 | 542,545,920 |
| Size | 2.5 GB | 517.4 MB |
| Events in quadrant A | 35,171,569 | 3,410,978 |
| Events in quadrant B | 18,243,837 | 3,787,925 |
| Events in quadrant C | 17,632,664 | 3,651,216 |
| Events in quadrant D | 26,954,568 | 3,173,233 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 708 | 0 |
| B | 0 | 708 | 0 |
| C | 0 | 708 | 0 |
| D | 0 | 708 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 131613 | 14 |
| B | 0 | 77888 | 5 |
| C | 0 | 77467 | 5 |
| D | 0 | 104059 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 34962 | 4151 | 11.872891% |
| B | 34964 | 959 | 2.742821% |
| C | 34964 | 600 | 1.716051% |
| D | 34964 | 2781 | 7.953895% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 44742 | 34964 | 3208 | 3208 | 7.17% | 9.18% |  |
| B | 44743 | 34968 | 388 | 388 | 0.87% | 1.11% |  |
| C | 44743 | 34967 | 318 | 318 | 0.71% | 0.91% |  |
| D | 44743 | 34968 | 2333 | 2333 | 5.21% | 6.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7684382 | 9727.43 | 3830 | 3753 | 789.6 |
| A | 15 | 223 | 6736174 | 8526.53 | 3830 | 3753 | 789.6 |
| A | 13 | 248 | 5500349 | 6961.37 | 3830 | 3753 | 789.6 |
| B | 5 | 172 | 581843 | 742.36 | 3968 | 3842 | 778.6 |
| B | 5 | 255 | 481525 | 613.52 | 3968 | 3842 | 778.6 |
| B | 0 | 219 | 438151 | 557.81 | 3968 | 3842 | 778.6 |
| C | 14 | 254 | 1514738 | 1639.96 | 3892 | 3914 | 921.3 |
| C | 14 | 96 | 560345 | 603.99 | 3892 | 3914 | 921.3 |
| C | 1 | 3 | 126849 | 133.44 | 3892 | 3914 | 921.3 |
| D | 13 | 249 | 3296966 | 3484.07 | 3787 | 3679 | 945.2 |
| D | 4 | 221 | 2535700 | 2678.7 | 3787 | 3679 | 945.2 |
| D | 2 | 153 | 983966 | 1037.07 | 3787 | 3679 | 945.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

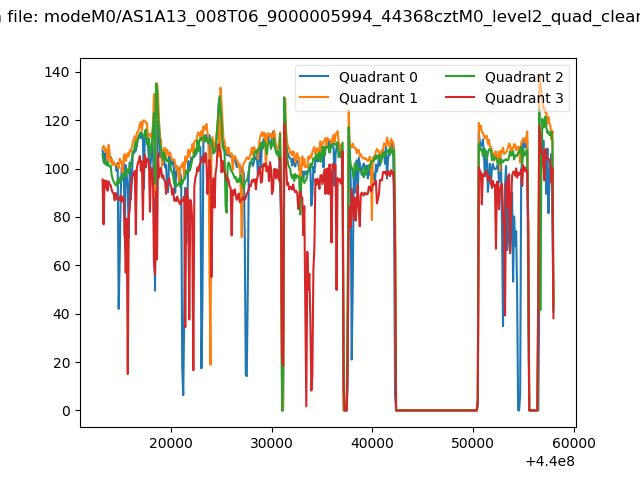

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
