| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_008T08_9000005998_44420cztM0_level2.fits | modeM0/AS1A13_008T08_9000005998_44420cztM0_level2_quad_clean.evt |
| Size (bytes) | 115,292,160 | 24,724,800 |
| Size | 110.0 MB | 23.6 MB |
| Events in quadrant A | 1,158,590 | 165,017 |
| Events in quadrant B | 788,906 | 167,507 |
| Events in quadrant C | 1,139,448 | 157,966 |
| Events in quadrant D | 1,058,872 | 144,425 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4649 | 0 |
| B | 0 | 3367 | 0 |
| C | 0 | 4489 | 0 |
| D | 0 | 4218 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1536 | 4 | 0.260417% |
| B | 1536 | 6 | 0.390625% |
| C | 1537 | 77 | 5.009759% |
| D | 1537 | 71 | 4.619388% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1536 | 1536 | 3 | 3 | 0.20% | 0.20% |  |
| B | 1536 | 1536 | 2 | 2 | 0.13% | 0.13% |  |
| C | 1537 | 1537 | 87 | 87 | 5.66% | 5.66% |  |
| D | 1537 | 1537 | 73 | 73 | 4.75% | 4.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 474874 | 12878.97 | 166 | 162 | 36.9 |
| A | 8 | 4 | 18368 | 493.93 | 166 | 162 | 36.9 |
| A | 0 | 243 | 9855 | 262.97 | 166 | 162 | 36.9 |
| B | 0 | 229 | 64993 | 1888.58 | 165 | 160 | 34.3 |
| B | 5 | 235 | 39099 | 1134.29 | 165 | 160 | 34.3 |
| B | 0 | 219 | 11825 | 339.8 | 165 | 160 | 34.3 |
| C | 12 | 16 | 445870 | 11383.49 | 157 | 158 | 39.2 |
| C | 3 | 233 | 56350 | 1435.14 | 157 | 158 | 39.2 |
| C | 14 | 254 | 13084 | 330.13 | 157 | 158 | 39.2 |
| D | 2 | 249 | 149205 | 3623.51 | 157 | 151 | 41.1 |
| D | 8 | 240 | 84734 | 2056.22 | 157 | 151 | 41.1 |
| D | 13 | 249 | 82904 | 2011.73 | 157 | 151 | 41.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

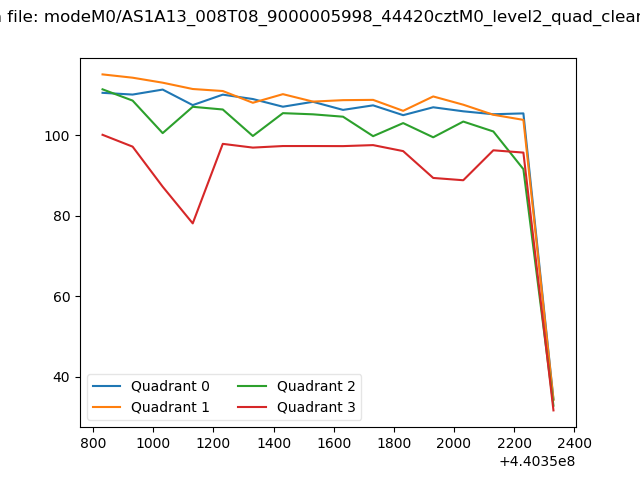

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

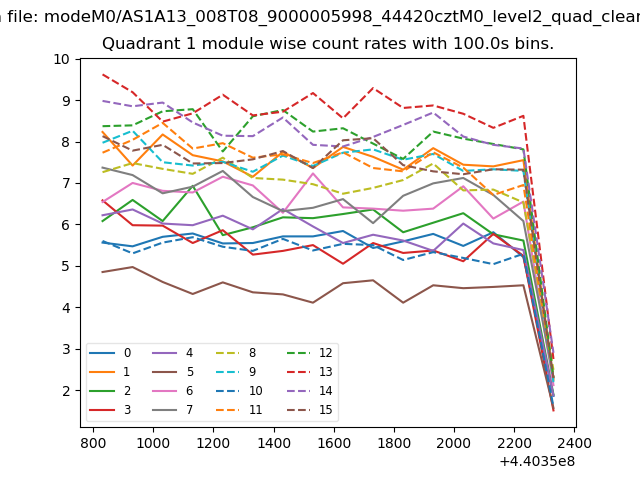

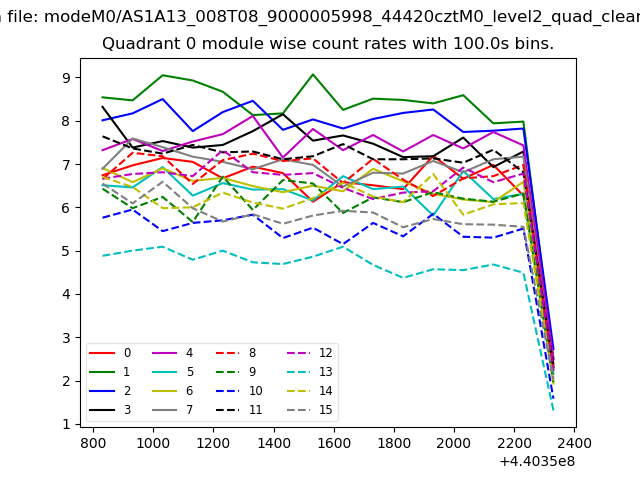

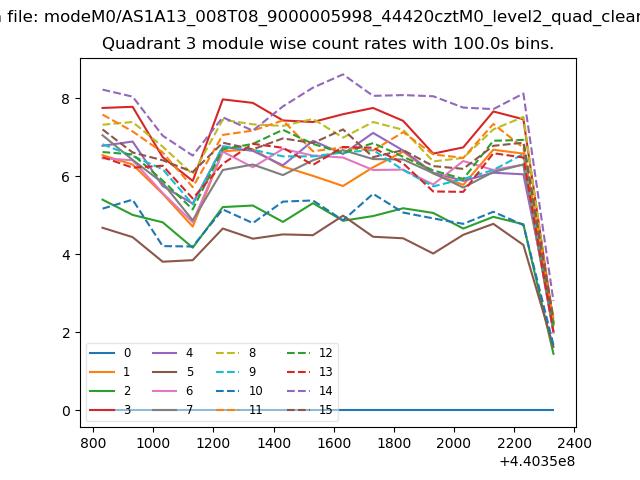

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

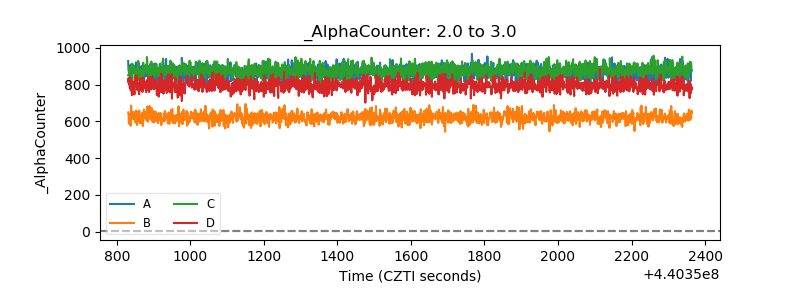

| Alpha Counter |  |

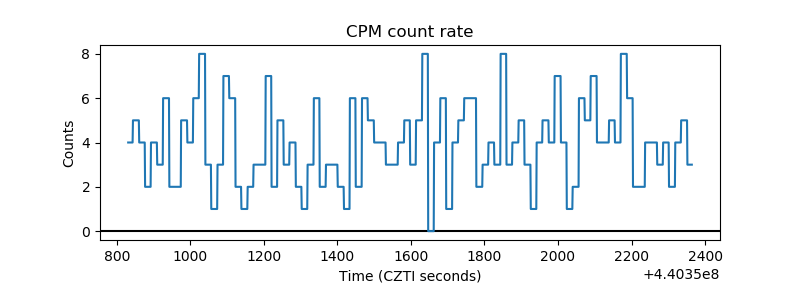

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

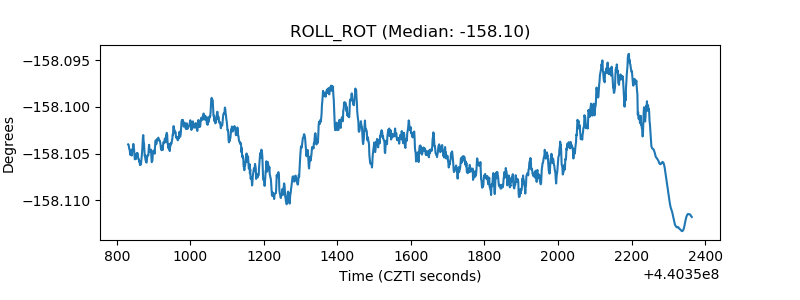

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

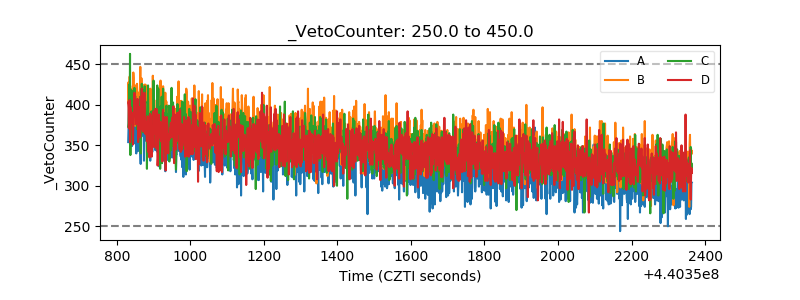

| Veto Counter |  |
