| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T03_9000006000_44425cztM0_level2.fits | modeM0/AS1A13_072T03_9000006000_44425cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,207,880,640 | 249,629,760 |
| Size | 1.1 GB | 238.1 MB |
| Events in quadrant A | 11,147,390 | 1,673,420 |
| Events in quadrant B | 7,997,165 | 1,752,038 |
| Events in quadrant C | 11,587,366 | 1,583,332 |
| Events in quadrant D | 12,702,126 | 1,408,606 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 366 | 29 |
| B | 0 | 368 | 32 |
| C | 0 | 363 | 17 |
| D | 0 | 368 | 24 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49771 | 4033 |
| B | 0 | 38575 | 2982 |
| C | 0 | 50246 | 3923 |
| D | 0 | 54998 | 5571 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16487 | 172 | 1.043246% |
| B | 16623 | 145 | 0.872285% |
| C | 16529 | 1346 | 8.143263% |
| D | 16388 | 1048 | 6.394923% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19597 | 17017 | 7 | 7 | 0.04% | 0.04% |  |
| B | 19663 | 17129 | 33 | 33 | 0.17% | 0.19% |  |
| C | 19894 | 17107 | 565 | 565 | 2.84% | 3.30% |  |
| D | 19687 | 16974 | 878 | 878 | 4.46% | 5.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4048968 | 10783.57 | 1807 | 1766 | 375.3 |
| A | 8 | 4 | 47866 | 122.83 | 1807 | 1766 | 375.3 |
| A | 10 | 248 | 34451 | 87.09 | 1807 | 1766 | 375.3 |
| B | 4 | 170 | 191236 | 529.26 | 1818 | 1762 | 358.0 |
| B | 0 | 229 | 188870 | 522.65 | 1818 | 1762 | 358.0 |
| B | 0 | 190 | 161595 | 446.46 | 1818 | 1762 | 358.0 |
| C | 12 | 16 | 4275591 | 10566.29 | 1724 | 1731 | 404.5 |
| C | 14 | 254 | 332498 | 817.76 | 1724 | 1731 | 404.5 |
| C | 3 | 233 | 205062 | 502.7 | 1724 | 1731 | 404.5 |
| D | 2 | 249 | 2716780 | 6302.96 | 1717 | 1665 | 430.8 |
| D | 1 | 52 | 1819378 | 4219.7 | 1717 | 1665 | 430.8 |
| D | 5 | 235 | 372570 | 861.03 | 1717 | 1665 | 430.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

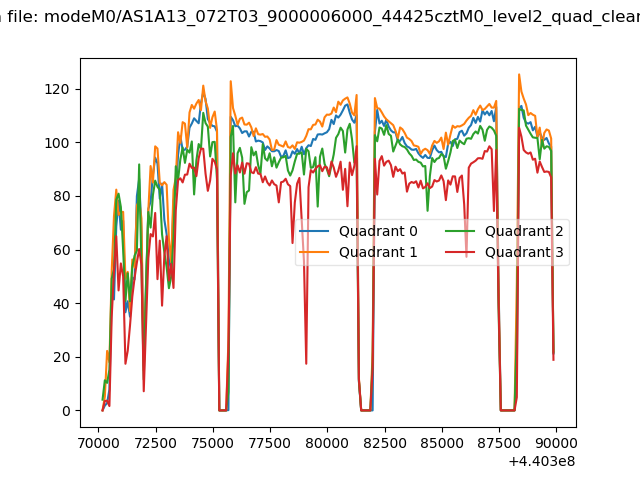

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

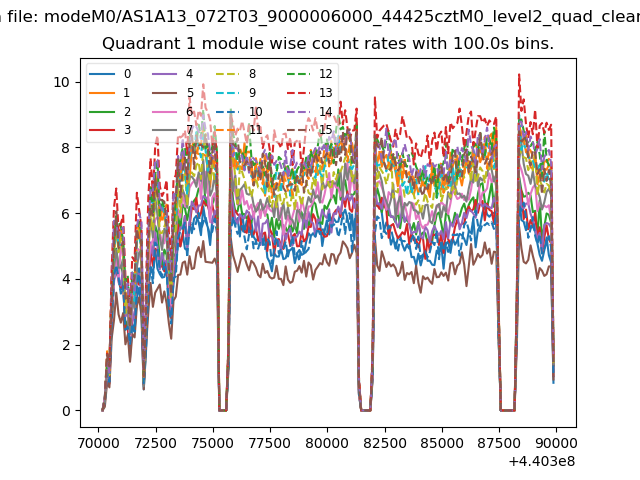

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

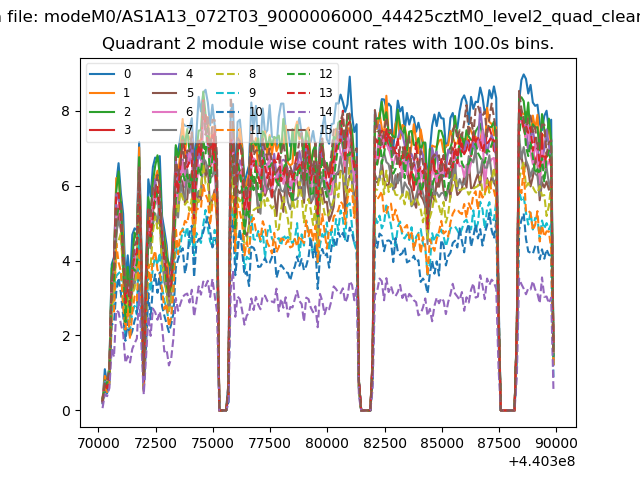

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

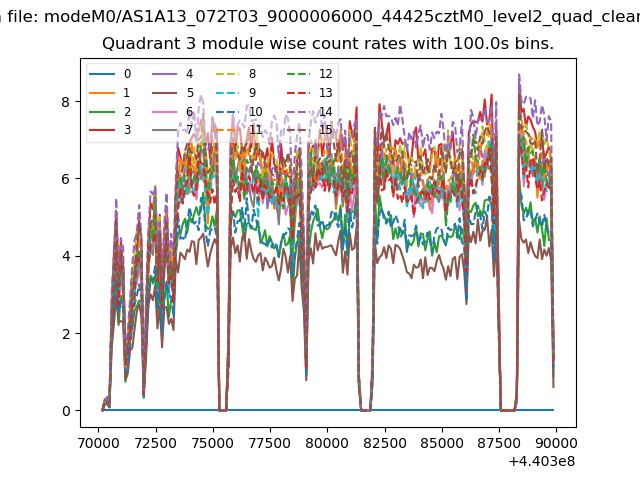

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

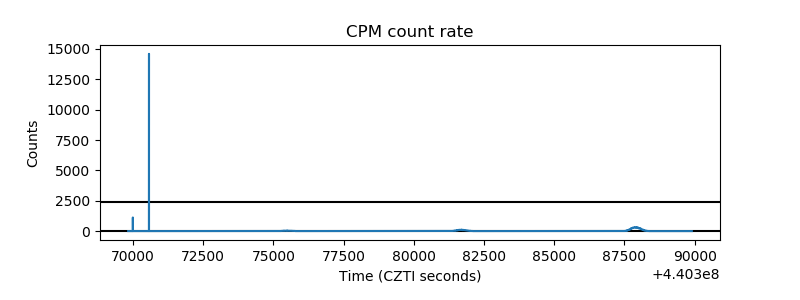

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

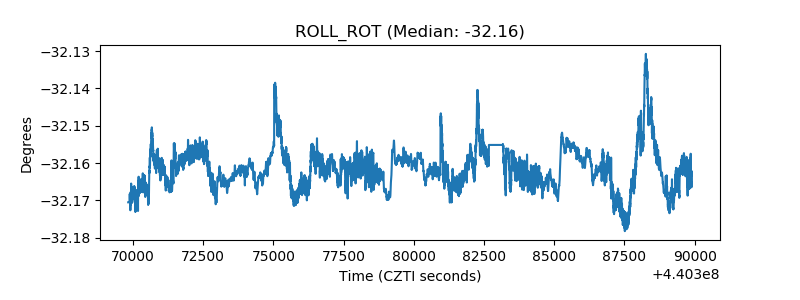

| _ROLL_ROT |  |
| _Roll_DEC |  |

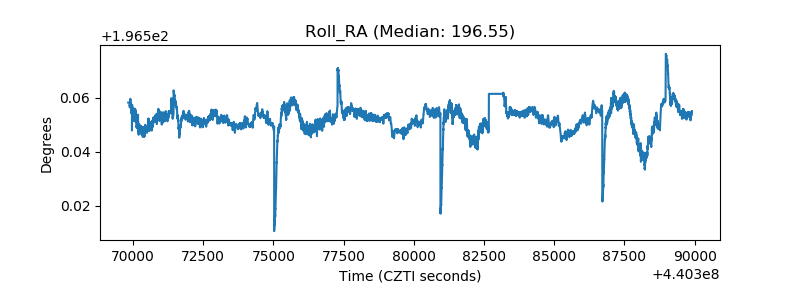

| _Roll_RA |  |

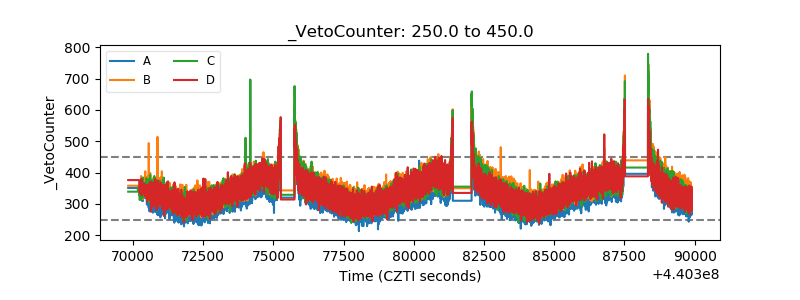

| Veto Counter |  |
