| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_009T03_9000006006_44613cztM0_level2.fits | modeM0/AS1A13_009T03_9000006006_44613cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,273,138,560 | 226,975,680 |
| Size | 1.2 GB | 216.5 MB |
| Events in quadrant A | 17,147,455 | 1,338,525 |
| Events in quadrant B | 8,675,288 | 1,558,695 |
| Events in quadrant C | 7,891,677 | 1,567,714 |
| Events in quadrant D | 12,235,280 | 1,355,846 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 310 | 0 |
| B | 0 | 310 | 0 |
| C | 0 | 310 | 0 |
| D | 0 | 310 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62615 | 4 |
| B | 0 | 36885 | 2 |
| C | 0 | 34628 | 5 |
| D | 0 | 46934 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15231 | 2666 | 17.503775% |
| B | 15233 | 995 | 6.531872% |
| C | 15230 | 223 | 1.464215% |
| D | 15232 | 1409 | 9.250263% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15902 | 15235 | 2396 | 2396 | 15.07% | 15.73% |  |
| B | 15902 | 15232 | 602 | 602 | 3.79% | 3.95% |  |
| C | 15901 | 15230 | 123 | 123 | 0.77% | 0.81% |  |
| D | 15901 | 15232 | 1297 | 1297 | 8.16% | 8.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 6437133 | 19546.6 | 1591 | 1559 | 329.2 |
| A | 10 | 83 | 3665300 | 11127.78 | 1591 | 1559 | 329.2 |
| A | 9 | 191 | 704130 | 2133.9 | 1591 | 1559 | 329.2 |
| B | 5 | 172 | 1720392 | 5280.1 | 1644 | 1592 | 325.5 |
| B | 0 | 186 | 152007 | 462.07 | 1644 | 1592 | 325.5 |
| B | 15 | 36 | 133292 | 404.58 | 1644 | 1592 | 325.5 |
| C | 15 | 158 | 460583 | 1171.78 | 1657 | 1669 | 391.6 |
| C | 12 | 2 | 326679 | 829.87 | 1657 | 1669 | 391.6 |
| C | 12 | 249 | 235548 | 597.18 | 1657 | 1669 | 391.6 |
| D | 1 | 52 | 2530127 | 6197.72 | 1614 | 1566 | 408.0 |
| D | 13 | 249 | 1719494 | 4210.79 | 1614 | 1566 | 408.0 |
| D | 2 | 249 | 377622 | 921.74 | 1614 | 1566 | 408.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

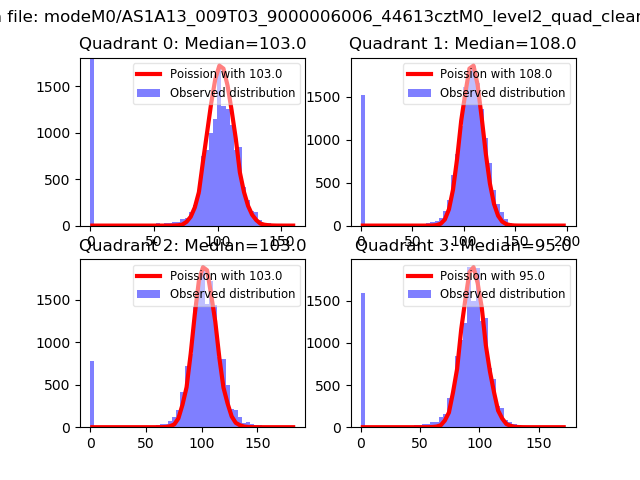

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

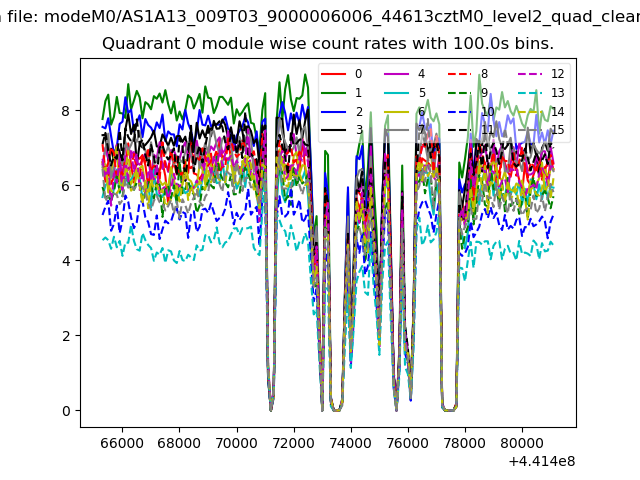

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

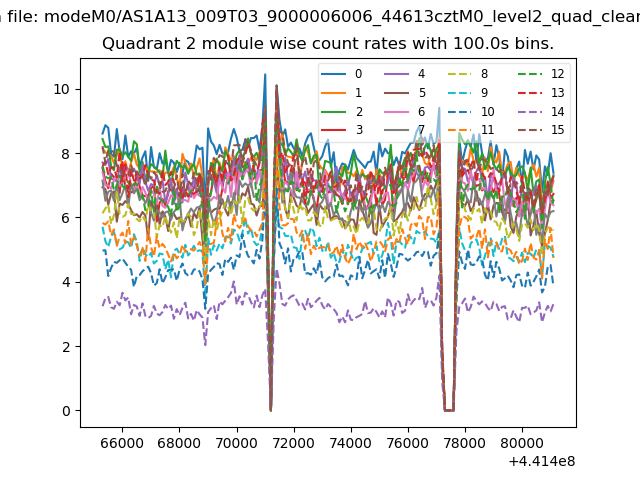

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

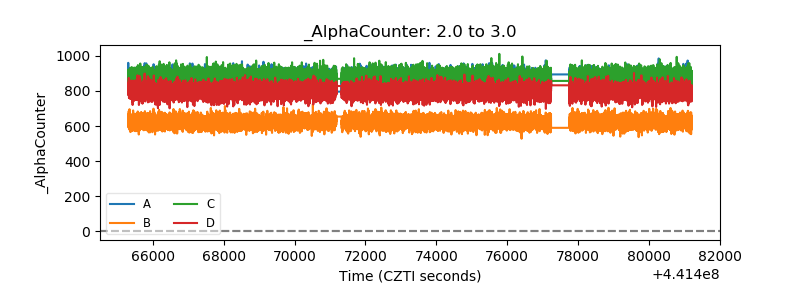

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

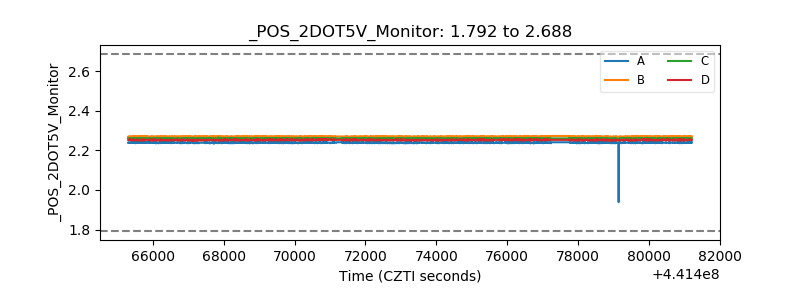

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

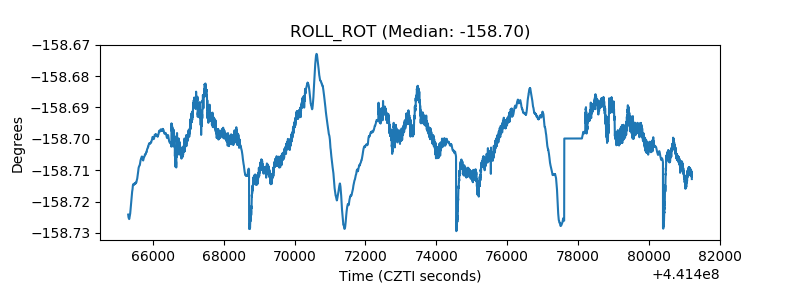

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

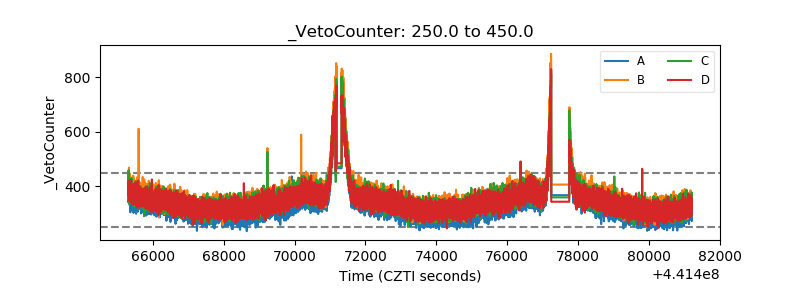

| Veto Counter |  |
