| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006008_44676cztM0_level2.fits | modeM0/AS1A13_072T01_9000006008_44676cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,600,320 | 104,659,200 |
| Size | 445.0 MB | 99.8 MB |
| Events in quadrant A | 4,731,060 | 717,042 |
| Events in quadrant B | 3,172,745 | 752,339 |
| Events in quadrant C | 2,856,723 | 723,013 |
| Events in quadrant D | 6,028,798 | 542,684 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19318 | 15 |
| B | 0 | 13738 | 2 |
| C | 0 | 12930 | 2 |
| D | 0 | 22427 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6210 | 135 | 2.173913% |
| B | 6212 | 86 | 1.384417% |
| C | 6212 | 22 | 0.354153% |
| D | 6212 | 1103 | 17.755956% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 6212 | 20 | 20 | 0.27% | 0.32% |  |
| B | 7447 | 6213 | 29 | 29 | 0.39% | 0.47% |  |
| C | 7447 | 6213 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7447 | 6213 | 908 | 908 | 12.19% | 14.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1927115 | 13157.61 | 707 | 694 | 146.4 |
| A | 13 | 248 | 49232 | 331.52 | 707 | 694 | 146.4 |
| A | 10 | 248 | 14219 | 92.38 | 707 | 694 | 146.4 |
| B | 0 | 189 | 125007 | 908.87 | 711 | 689 | 136.8 |
| B | 4 | 171 | 119910 | 871.61 | 711 | 689 | 136.8 |
| B | 0 | 183 | 39861 | 286.38 | 711 | 689 | 136.8 |
| C | 2 | 14 | 58934 | 356.75 | 704 | 708 | 163.2 |
| C | 14 | 254 | 37406 | 224.85 | 704 | 708 | 163.2 |
| C | 3 | 233 | 10514 | 60.08 | 704 | 708 | 163.2 |
| D | 1 | 52 | 2640408 | 16839.15 | 619 | 598 | 156.8 |
| D | 2 | 249 | 347882 | 2215.3 | 619 | 598 | 156.8 |
| D | 13 | 249 | 222795 | 1417.38 | 619 | 598 | 156.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

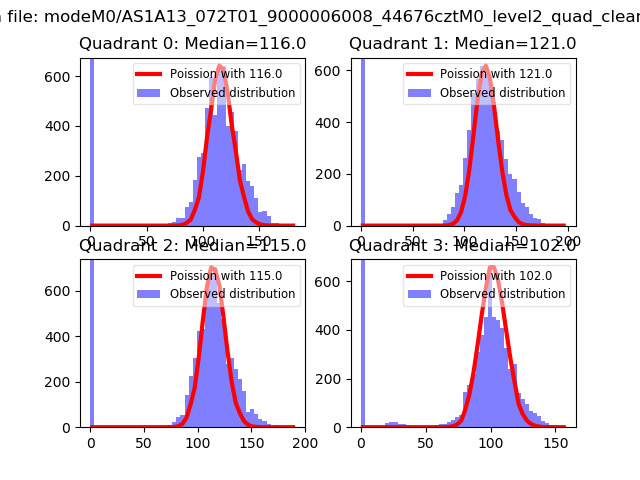

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

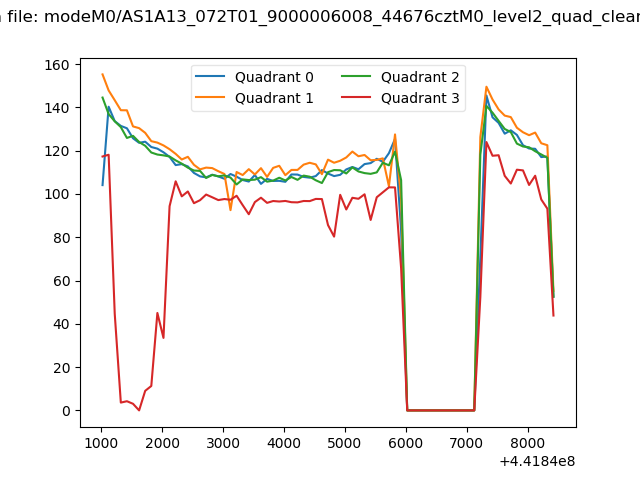

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

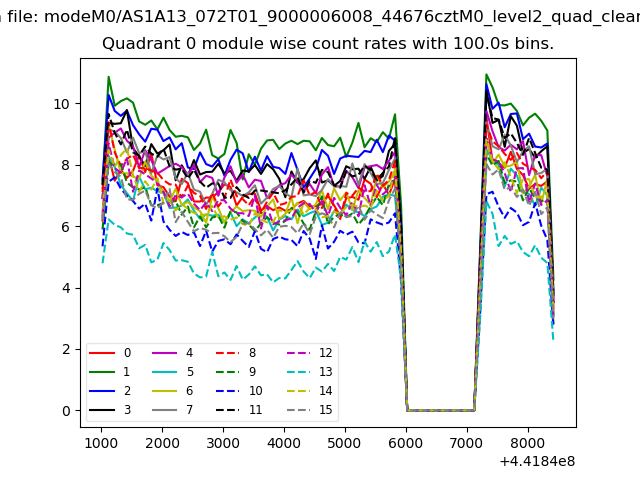

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

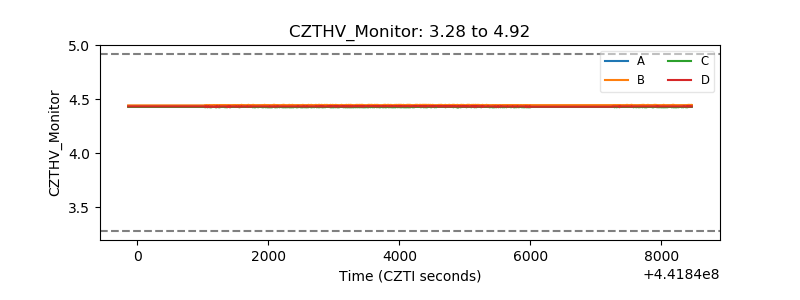

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

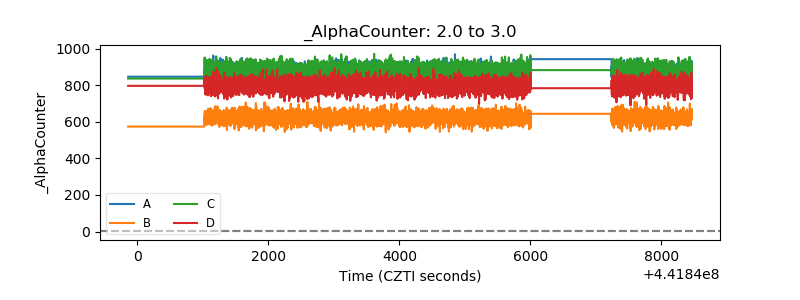

| Alpha Counter |  |

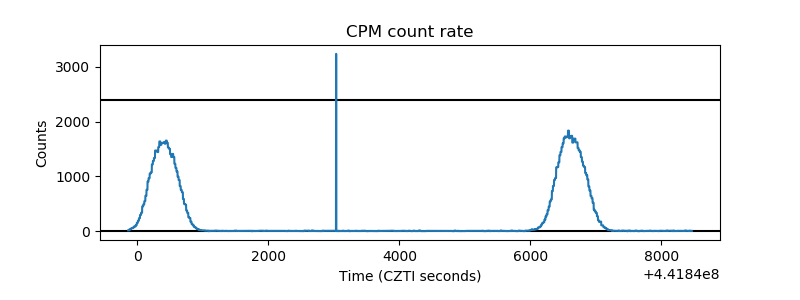

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

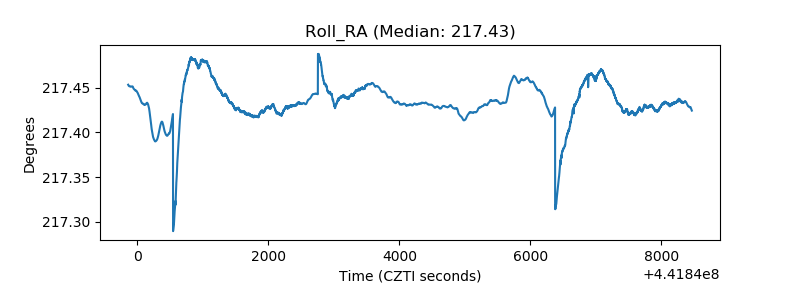

| _Roll_RA |  |

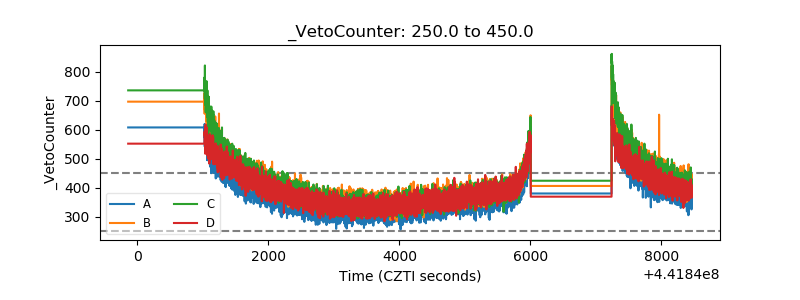

| Veto Counter |  |
