| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T13_9000006022_44780cztM0_level2.fits | modeM0/AS1A13_004T13_9000006022_44780cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,496,320 | 109,687,680 |
| Size | 423.9 MB | 104.6 MB |
| Events in quadrant A | 5,202,117 | 717,084 |
| Events in quadrant B | 3,391,429 | 760,550 |
| Events in quadrant C | 3,111,322 | 731,269 |
| Events in quadrant D | 4,234,946 | 651,075 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21118 | 2 |
| B | 0 | 14625 | 2 |
| C | 0 | 14070 | 2 |
| D | 0 | 17280 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6617 | 240 | 3.627021% |
| B | 6617 | 73 | 1.103219% |
| C | 6617 | 47 | 0.710292% |
| D | 6617 | 257 | 3.883935% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7712 | 6618 | 108 | 108 | 1.40% | 1.63% |  |
| B | 7712 | 6618 | 27 | 27 | 0.35% | 0.41% |  |
| C | 7712 | 6618 | 25 | 25 | 0.32% | 0.38% |  |
| D | 7712 | 6618 | 182 | 182 | 2.36% | 2.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2051509 | 13577.92 | 729 | 714 | 151.0 |
| A | 13 | 248 | 238578 | 1574.85 | 729 | 714 | 151.0 |
| A | 15 | 223 | 33830 | 219.25 | 729 | 714 | 151.0 |
| B | 5 | 255 | 147904 | 998.58 | 744 | 720 | 147.4 |
| B | 0 | 189 | 62605 | 419.86 | 744 | 720 | 147.4 |
| B | 5 | 172 | 58481 | 391.88 | 744 | 720 | 147.4 |
| C | 14 | 254 | 147533 | 849.41 | 735 | 738 | 172.8 |
| C | 12 | 2 | 78983 | 452.75 | 735 | 738 | 172.8 |
| C | 1 | 3 | 12159 | 66.09 | 735 | 738 | 172.8 |
| D | 2 | 249 | 390300 | 2163.89 | 721 | 701 | 180.0 |
| D | 1 | 52 | 239296 | 1325.19 | 721 | 701 | 180.0 |
| D | 13 | 249 | 239271 | 1325.05 | 721 | 701 | 180.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

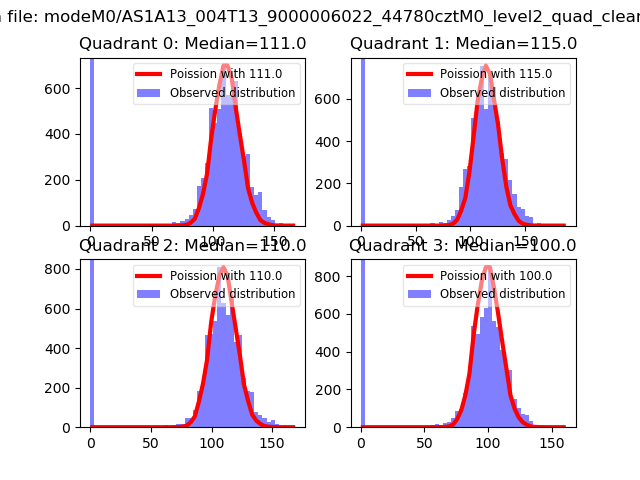

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

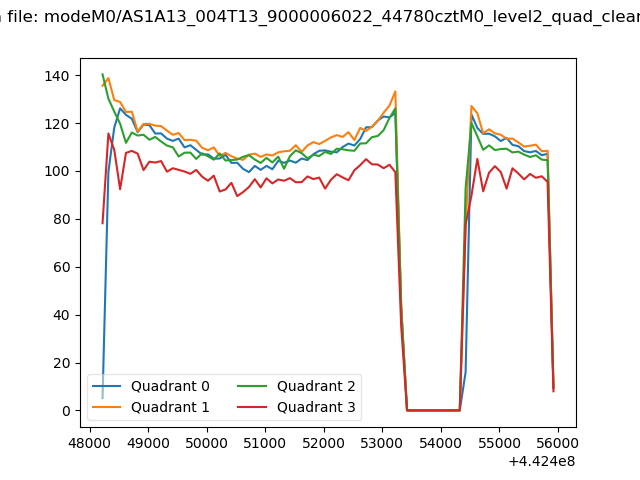

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

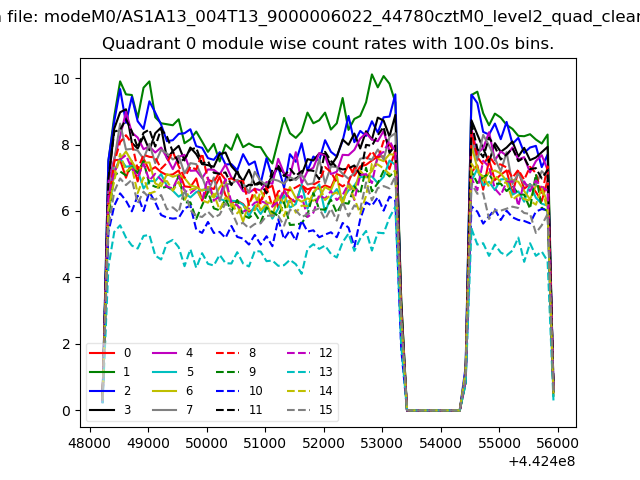

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
