| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_024T02_9000006026_44816cztM0_level2.fits | modeM0/AS1A13_024T02_9000006026_44816cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,004,485,760 | 257,731,200 |
| Size | 1.9 GB | 245.8 MB |
| Events in quadrant A | 29,147,637 | 1,210,393 |
| Events in quadrant B | 9,368,572 | 1,955,603 |
| Events in quadrant C | 8,290,202 | 1,870,871 |
| Events in quadrant D | 25,967,613 | 1,489,332 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 99960 | 3 |
| B | 0 | 40785 | 3 |
| C | 0 | 38709 | 3 |
| D | 0 | 90216 | 13 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18508 | 7106 | 38.394208% |
| B | 18508 | 497 | 2.685325% |
| C | 18509 | 206 | 1.112972% |
| D | 18507 | 2685 | 14.508024% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20042 | 18509 | 6556 | 6556 | 32.71% | 35.42% |  |
| B | 20042 | 18507 | 157 | 157 | 0.78% | 0.85% |  |
| C | 20043 | 18508 | 61 | 61 | 0.30% | 0.33% |  |
| D | 20043 | 18507 | 2397 | 2397 | 11.96% | 12.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 17929373 | 52402.48 | 1661 | 1628 | 342.1 |
| A | 10 | 83 | 4530712 | 13238.43 | 1661 | 1628 | 342.1 |
| A | 13 | 248 | 188973 | 547.61 | 1661 | 1628 | 342.1 |
| B | 0 | 189 | 844945 | 2141.54 | 2005 | 1940 | 393.6 |
| B | 5 | 172 | 179144 | 450.16 | 2005 | 1940 | 393.6 |
| B | 0 | 190 | 114367 | 285.6 | 2005 | 1940 | 393.6 |
| C | 14 | 254 | 234536 | 511.23 | 1960 | 1966 | 454.9 |
| C | 12 | 2 | 219431 | 478.02 | 1960 | 1966 | 454.9 |
| C | 1 | 3 | 101863 | 219.59 | 1960 | 1966 | 454.9 |
| D | 13 | 187 | 11043326 | 23751.85 | 1863 | 1803 | 464.9 |
| D | 1 | 52 | 3110388 | 6687.0 | 1863 | 1803 | 464.9 |
| D | 2 | 249 | 1234133 | 2650.91 | 1863 | 1803 | 464.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

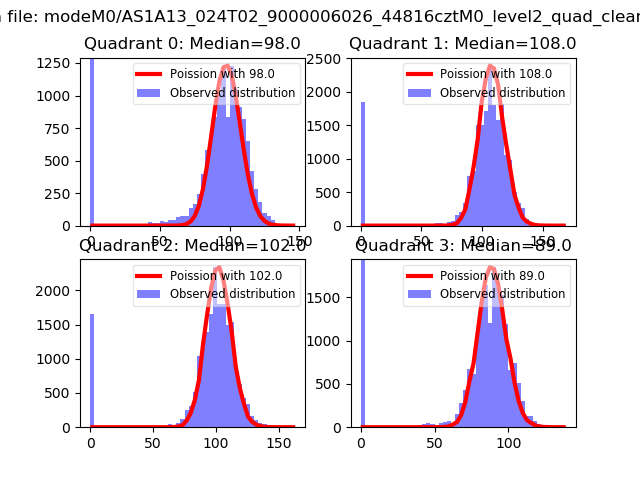

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

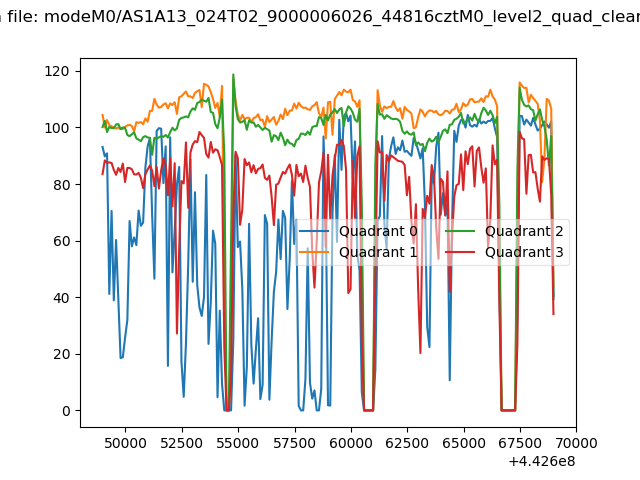

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

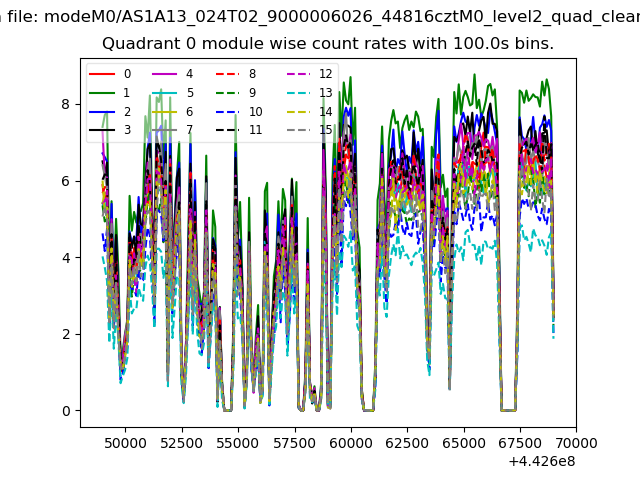

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

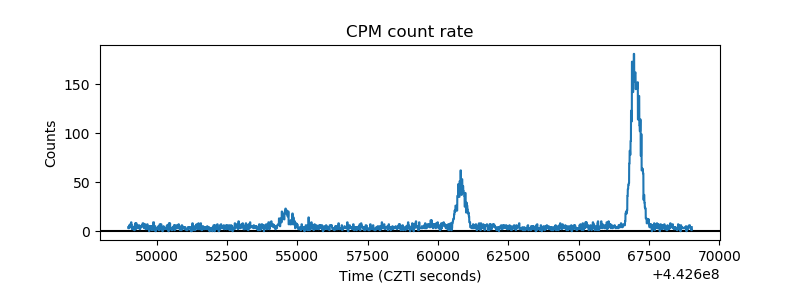

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

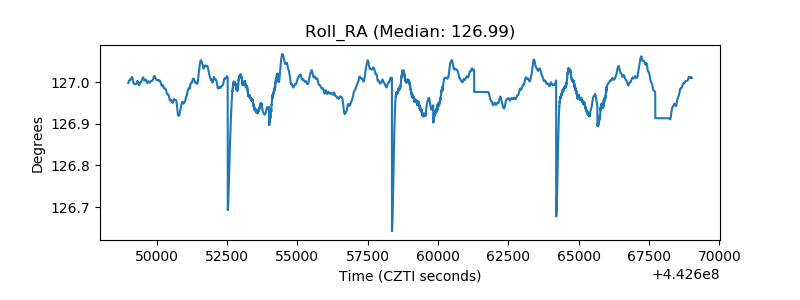

| _Roll_RA |  |

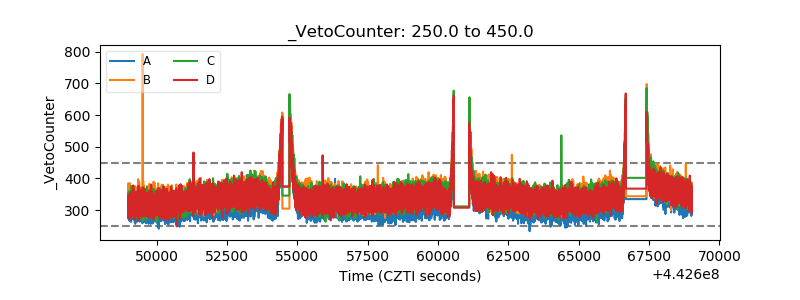

| Veto Counter |  |
