| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T02_9000006046_45130cztM0_level2.fits | modeM0/AS1A13_017T02_9000006046_45130cztM0_level2_quad_clean.evt |
| Size (bytes) | 706,150,080 | 110,050,560 |
| Size | 673.4 MB | 105.0 MB |
| Events in quadrant A | 10,793,264 | 582,602 |
| Events in quadrant B | 3,992,678 | 802,540 |
| Events in quadrant C | 3,868,879 | 779,291 |
| Events in quadrant D | 6,907,275 | 648,919 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37152 | 1 |
| B | 0 | 16743 | 1 |
| C | 0 | 16728 | 1 |
| D | 0 | 25522 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7448 | 2341 | 31.431257% |
| B | 7449 | 341 | 4.577796% |
| C | 7449 | 265 | 3.557524% |
| D | 7449 | 953 | 12.793664% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

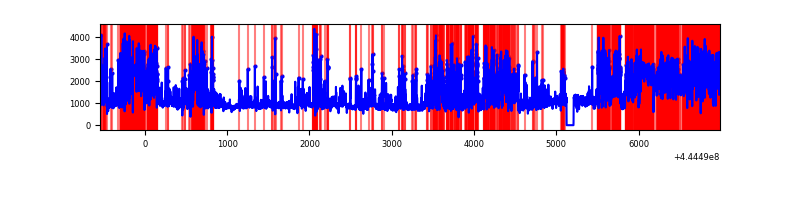

| A | 7532 | 7448 | 1730 | 1730 | 22.97% | 23.23% |  |
| B | 7534 | 7450 | 46 | 46 | 0.61% | 0.62% |  |
| C | 7534 | 7450 | 65 | 65 | 0.86% | 0.87% |  |
| D | 7534 | 7450 | 601 | 601 | 7.98% | 8.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 5574451 | 34190.74 | 774 | 756 | 163.0 |
| A | 10 | 83 | 2172415 | 13321.62 | 774 | 756 | 163.0 |
| A | 0 | 243 | 38227 | 229.86 | 774 | 756 | 163.0 |
| B | 3 | 112 | 210309 | 1171.75 | 881 | 855 | 178.8 |
| B | 4 | 170 | 83028 | 459.7 | 881 | 855 | 178.8 |
| B | 0 | 155 | 65584 | 362.11 | 881 | 855 | 178.8 |
| C | 1 | 3 | 156795 | 749.7 | 878 | 885 | 208.0 |
| C | 14 | 254 | 125033 | 596.97 | 878 | 885 | 208.0 |
| C | 12 | 250 | 74058 | 351.86 | 878 | 885 | 208.0 |
| D | 4 | 223 | 1281973 | 5950.68 | 846 | 820 | 215.3 |
| D | 13 | 249 | 596973 | 2769.0 | 846 | 820 | 215.3 |
| D | 2 | 249 | 450043 | 2086.54 | 846 | 820 | 215.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

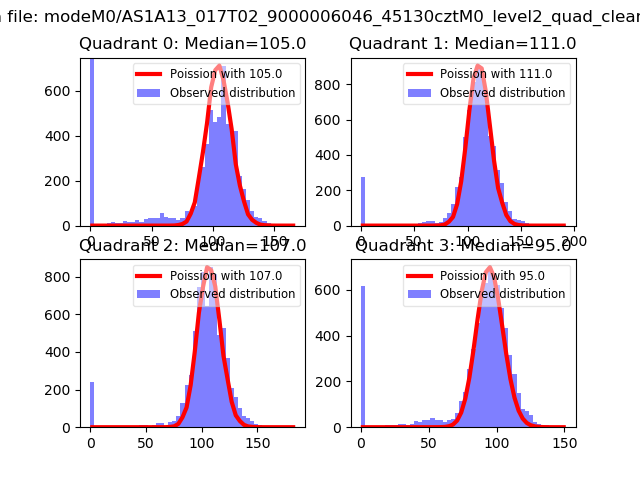

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

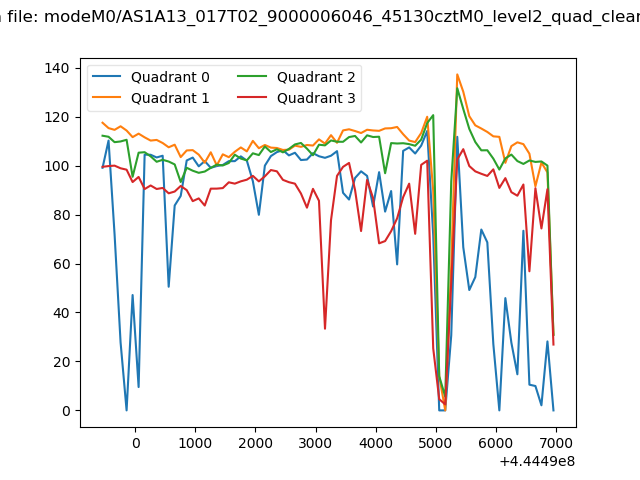

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

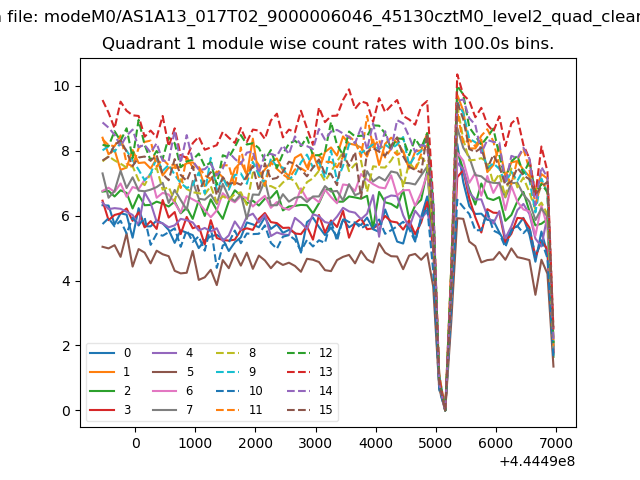

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

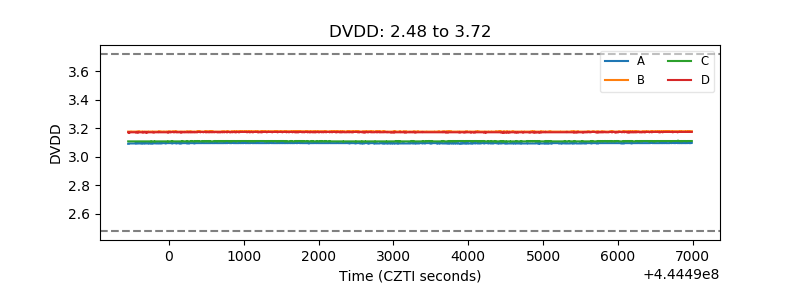

| D_VDD |  |

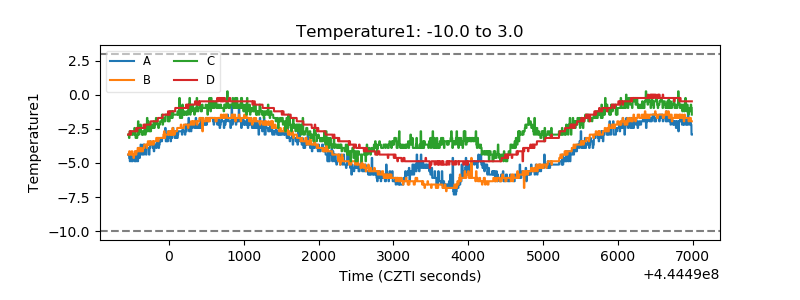

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

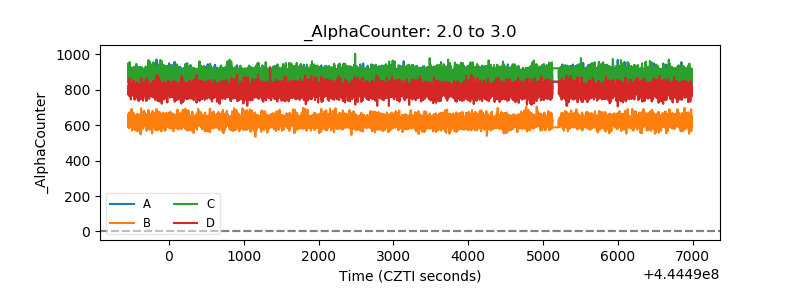

| Alpha Counter |  |

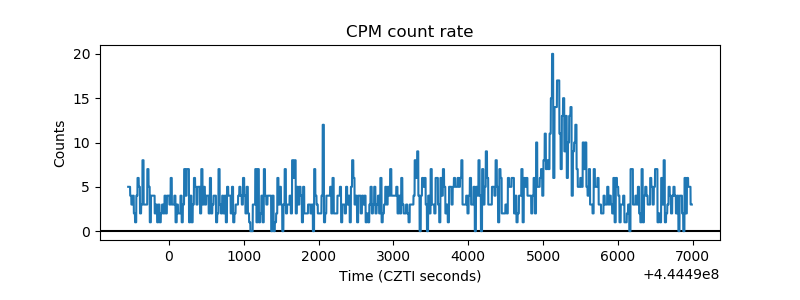

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
