| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_049T06_9000006054_45199cztM0_level2.fits | modeM0/AS1A13_049T06_9000006054_45199cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,453,760 | 112,501,440 |
| Size | 448.7 MB | 107.3 MB |
| Events in quadrant A | 5,444,512 | 745,870 |
| Events in quadrant B | 3,684,991 | 784,963 |
| Events in quadrant C | 3,111,468 | 767,027 |
| Events in quadrant D | 4,677,731 | 662,957 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20672 | 2 |
| B | 0 | 15084 | 2 |
| C | 0 | 13395 | 2 |
| D | 0 | 18162 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6390 | 191 | 2.989045% |
| B | 6390 | 141 | 2.206573% |
| C | 6390 | 83 | 1.298905% |
| D | 6390 | 398 | 6.228482% |

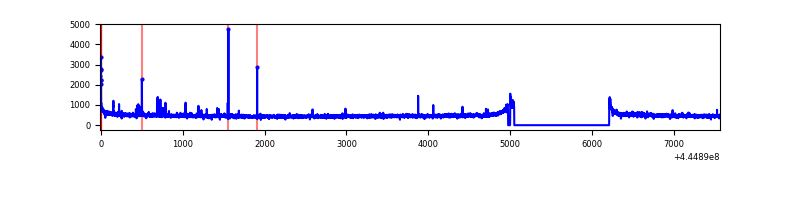

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6391 | 16 | 16 | 0.21% | 0.25% |  |
| B | 7575 | 6391 | 28 | 28 | 0.37% | 0.44% |  |
| C | 7575 | 6391 | 10 | 10 | 0.13% | 0.16% |  |
| D | 7575 | 6392 | 291 | 291 | 3.84% | 4.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2476726 | 16039.16 | 752 | 739 | 154.4 |
| A | 4 | 0 | 19123 | 119.09 | 752 | 739 | 154.4 |
| A | 0 | 243 | 9579 | 57.26 | 752 | 739 | 154.4 |
| B | 4 | 170 | 316450 | 2150.48 | 756 | 732 | 146.8 |
| B | 3 | 112 | 246356 | 1673.04 | 756 | 732 | 146.8 |
| B | 10 | 3 | 47696 | 319.89 | 756 | 732 | 146.8 |
| C | 12 | 2 | 54808 | 305.07 | 763 | 769 | 177.1 |
| C | 1 | 3 | 39361 | 217.86 | 763 | 769 | 177.1 |
| C | 3 | 233 | 32052 | 176.6 | 763 | 769 | 177.1 |
| D | 1 | 52 | 598390 | 3239.9 | 741 | 719 | 184.5 |
| D | 5 | 222 | 352823 | 1908.71 | 741 | 719 | 184.5 |
| D | 1 | 47 | 137258 | 740.16 | 741 | 719 | 184.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

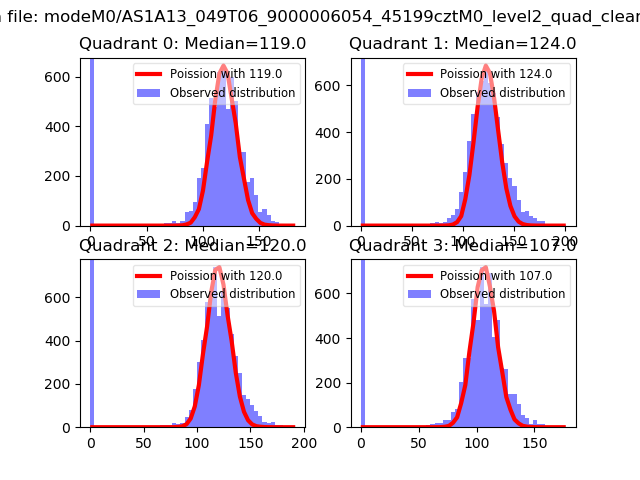

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

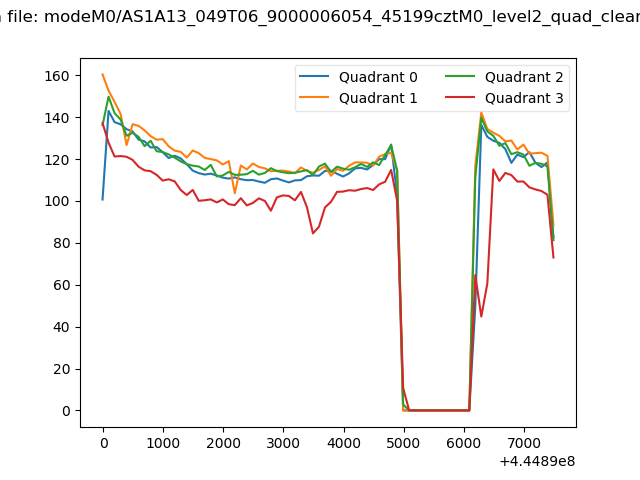

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

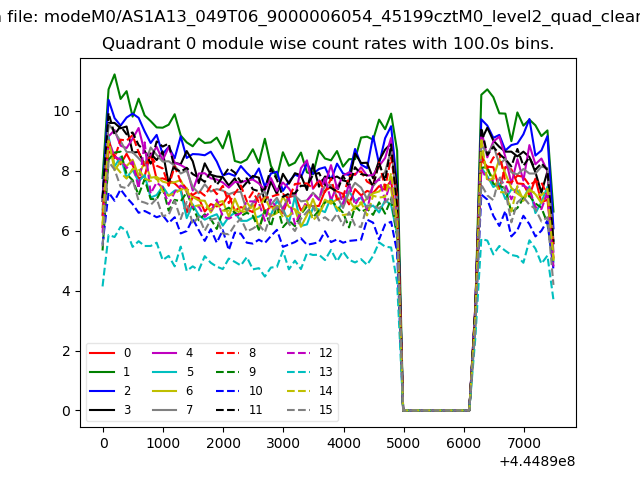

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

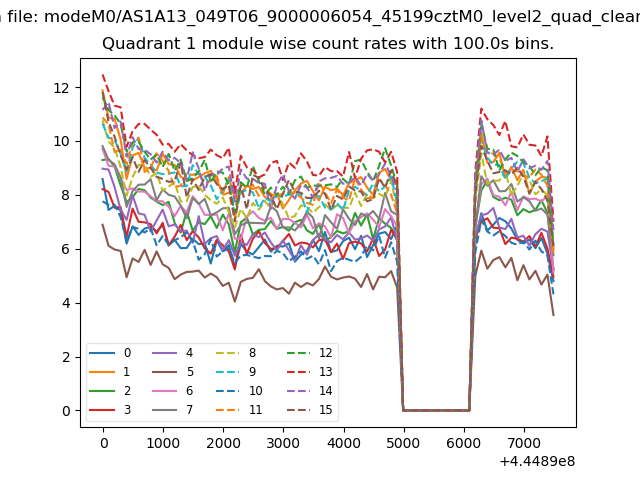

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

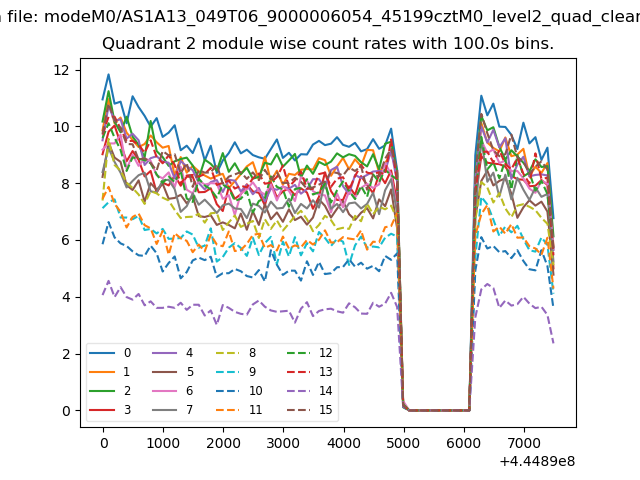

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

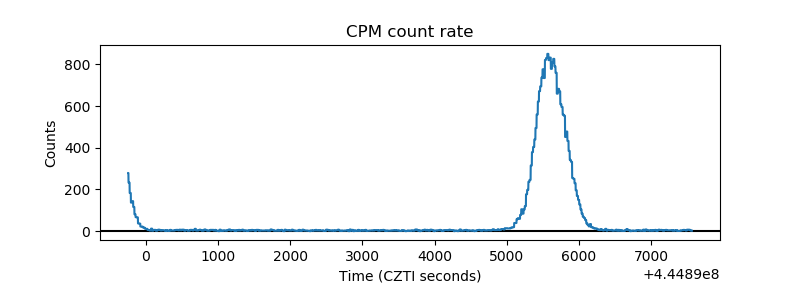

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
