| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_038T04_9000006090_45462cztM0_level2.fits | modeM0/AS1A13_038T04_9000006090_45462cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,153,920 | 108,953,280 |
| Size | 504.6 MB | 103.9 MB |
| Events in quadrant A | 5,678,604 | 728,398 |
| Events in quadrant B | 3,779,291 | 754,441 |
| Events in quadrant C | 3,300,158 | 731,303 |
| Events in quadrant D | 6,303,544 | 612,597 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21998 | 2 |
| B | 0 | 16134 | 2 |
| C | 0 | 14894 | 2 |
| D | 0 | 23431 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6780 | 239 | 3.525074% |
| B | 6780 | 265 | 3.908555% |
| C | 6780 | 138 | 2.035398% |
| D | 6780 | 811 | 11.961652% |

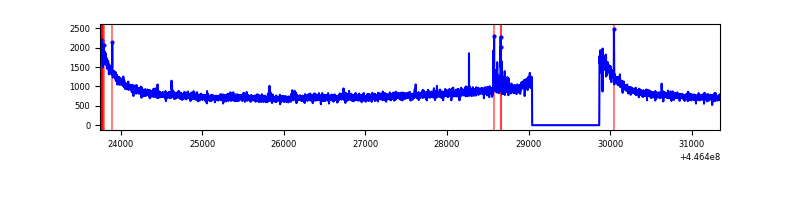

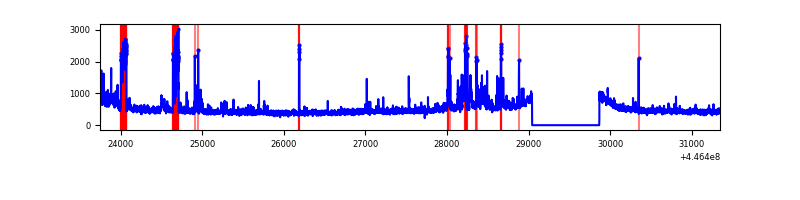

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7605 | 6781 | 18 | 18 | 0.24% | 0.27% |  |
| B | 7605 | 6781 | 119 | 119 | 1.56% | 1.75% |  |
| C | 7605 | 6781 | 79 | 79 | 1.04% | 1.17% |  |
| D | 7605 | 6781 | 866 | 866 | 11.39% | 12.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2702338 | 17412.92 | 756 | 740 | 155.1 |
| A | 13 | 248 | 39443 | 249.46 | 756 | 740 | 155.1 |
| A | 0 | 243 | 9205 | 54.56 | 756 | 740 | 155.1 |
| B | 15 | 201 | 542048 | 3576.57 | 764 | 741 | 151.3 |
| B | 0 | 199 | 72809 | 476.17 | 764 | 741 | 151.3 |
| B | 3 | 112 | 51389 | 334.65 | 764 | 741 | 151.3 |
| C | 14 | 254 | 196291 | 1096.0 | 752 | 756 | 178.4 |
| C | 12 | 2 | 108158 | 602.0 | 752 | 756 | 178.4 |
| C | 1 | 3 | 39181 | 215.38 | 752 | 756 | 178.4 |
| D | 1 | 52 | 3067534 | 16673.63 | 718 | 695 | 183.9 |
| D | 13 | 249 | 202160 | 1095.31 | 718 | 695 | 183.9 |
| D | 11 | 241 | 141062 | 763.14 | 718 | 695 | 183.9 |

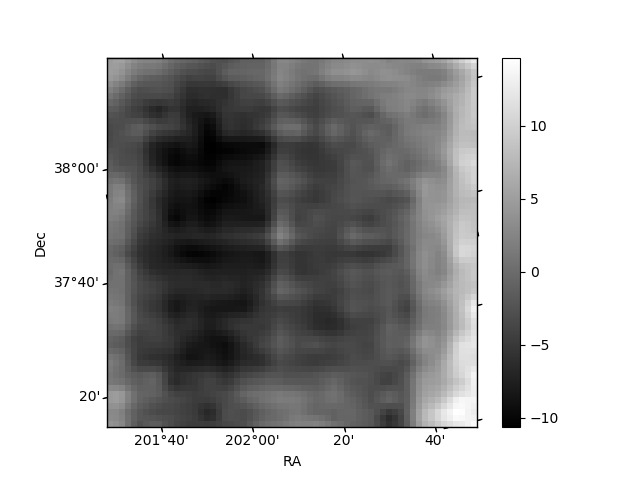

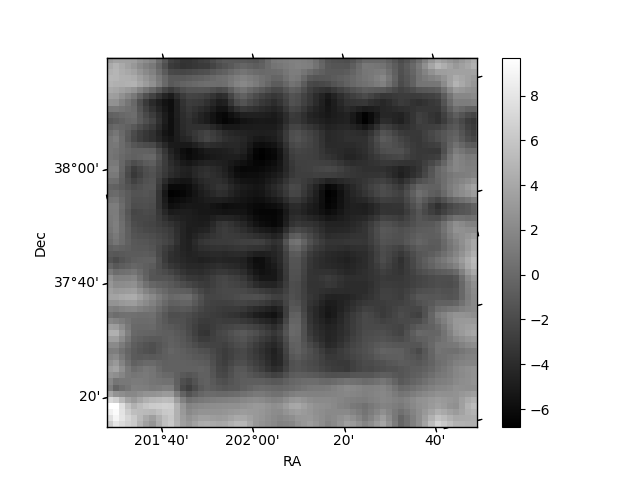

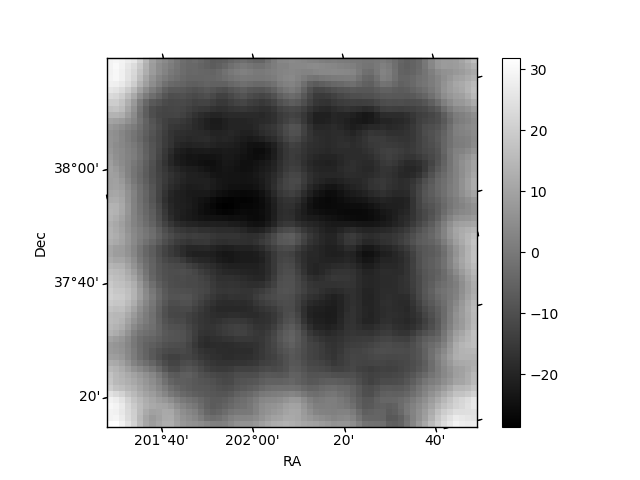

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

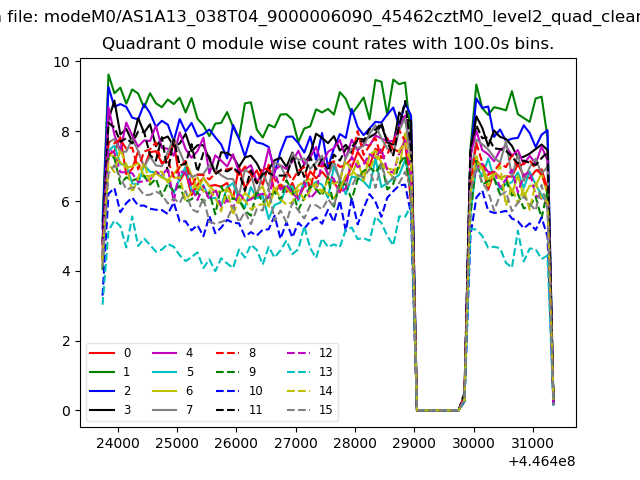

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

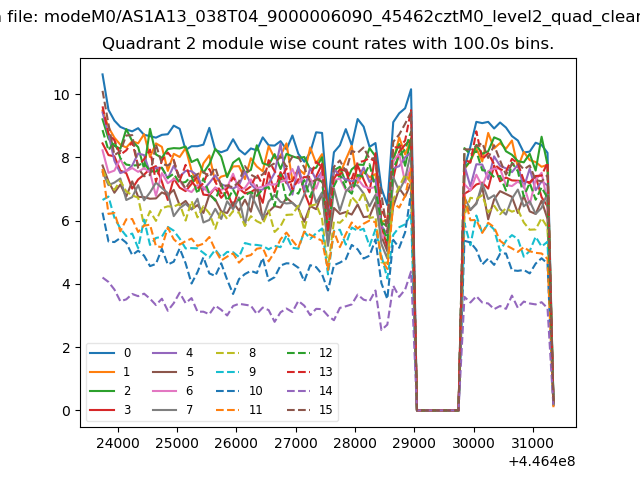

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

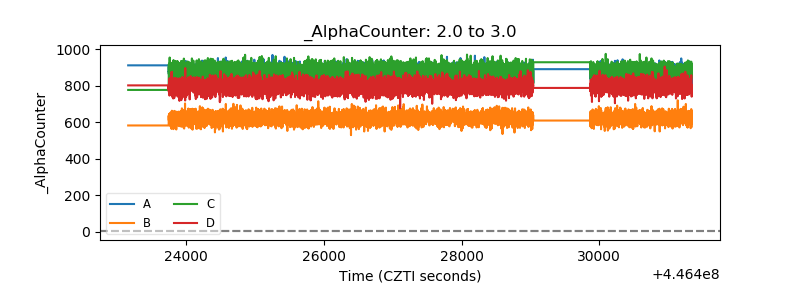

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
