| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T04_9000006110_45585cztM0_level2.fits | modeM0/AS1A13_071T04_9000006110_45585cztM0_level2_quad_clean.evt |
| Size (bytes) | 363,827,520 | 70,142,400 |
| Size | 347.0 MB | 66.9 MB |
| Events in quadrant A | 3,963,885 | 470,589 |
| Events in quadrant B | 3,307,604 | 458,074 |
| Events in quadrant C | 2,393,903 | 462,120 |
| Events in quadrant D | 3,456,465 | 420,414 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15678 | 856 |
| B | 0 | 14013 | 1261 |
| C | 0 | 11223 | 941 |
| D | 0 | 13957 | 651 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 97 | 5 |
| B | 0 | 97 | 7 |
| C | 0 | 97 | 4 |
| D | 0 | 96 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4447 | 180 | 4.047673% |
| B | 4439 | 425 | 9.574228% |
| C | 4445 | 131 | 2.947132% |
| D | 4447 | 184 | 4.137621% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4946 | 4521 | 20 | 20 | 0.40% | 0.44% |  |
| B | 4976 | 4497 | 218 | 218 | 4.38% | 4.85% |  |
| C | 4947 | 4498 | 61 | 61 | 1.23% | 1.36% |  |
| D | 4977 | 4515 | 70 | 70 | 1.41% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1744052 | 16386.75 | 509 | 498 | 106.4 |
| A | 13 | 210 | 134159 | 1256.21 | 509 | 498 | 106.4 |
| A | 2 | 79 | 93528 | 874.34 | 509 | 498 | 106.4 |
| B | 15 | 201 | 1130012 | 11291.1 | 500 | 484 | 100.0 |
| B | 5 | 172 | 104359 | 1038.37 | 500 | 484 | 100.0 |
| B | 0 | 199 | 26643 | 261.49 | 500 | 484 | 100.0 |
| C | 14 | 254 | 382781 | 3234.54 | 497 | 499 | 118.2 |
| C | 9 | 237 | 54794 | 459.4 | 497 | 499 | 118.2 |
| C | 9 | 221 | 15342 | 125.59 | 497 | 499 | 118.2 |
| D | 11 | 241 | 978334 | 7653.75 | 498 | 481 | 127.8 |
| D | 11 | 224 | 234514 | 1831.8 | 498 | 481 | 127.8 |
| D | 1 | 52 | 170528 | 1330.97 | 498 | 481 | 127.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

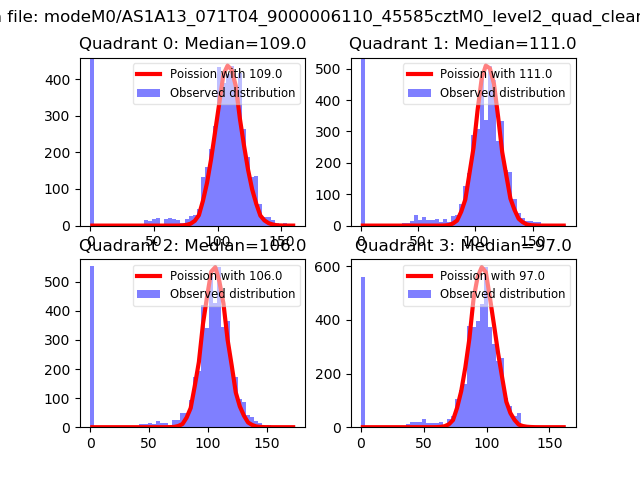

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

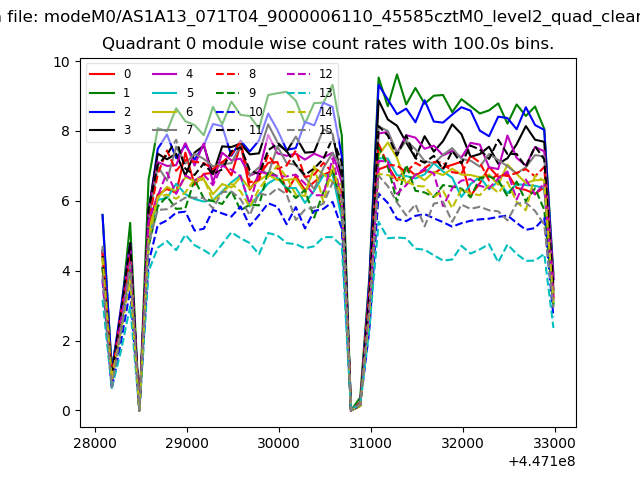

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

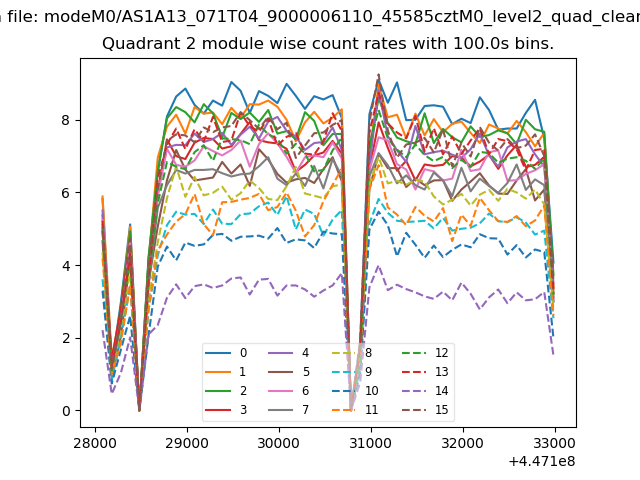

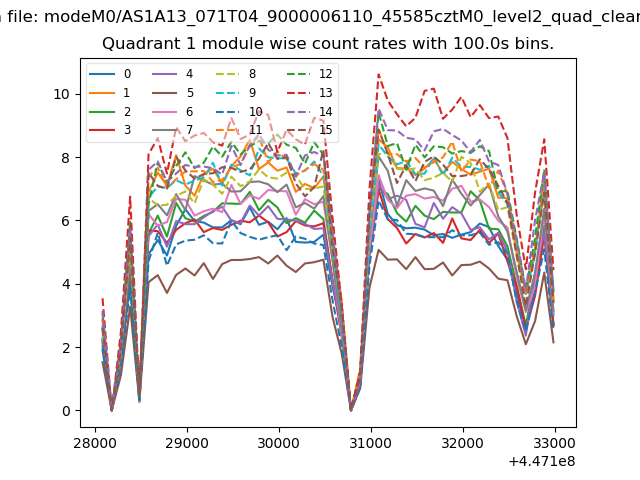

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

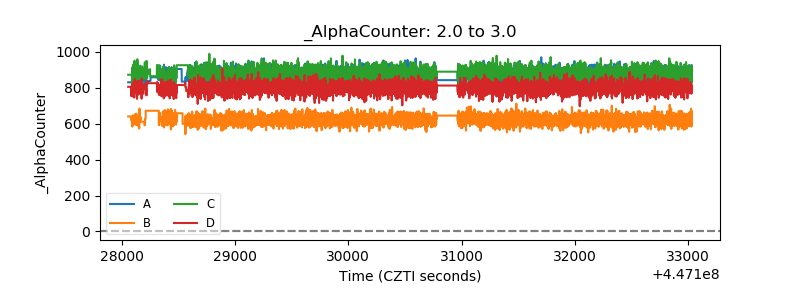

| Alpha Counter |  |

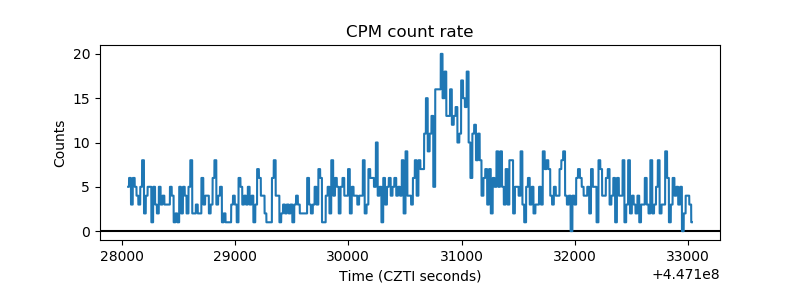

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

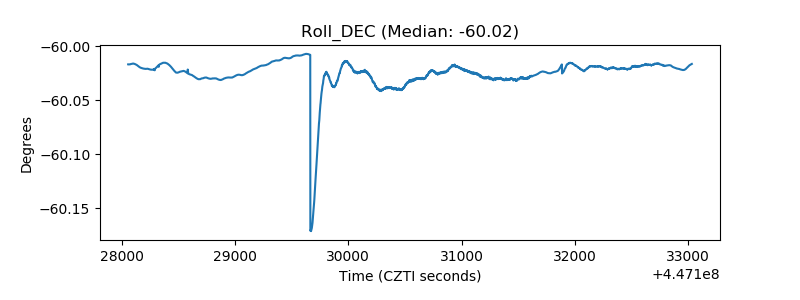

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
