| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_183T01_9000006124_45754cztM0_level2.fits | modeM0/AS1T05_183T01_9000006124_45754cztM0_level2_quad_clean.evt |
| Size (bytes) | 722,119,680 | 114,402,240 |
| Size | 688.7 MB | 109.1 MB |
| Events in quadrant A | 6,722,138 | 791,949 |
| Events in quadrant B | 8,383,810 | 747,573 |
| Events in quadrant C | 4,092,555 | 774,429 |
| Events in quadrant D | 6,964,344 | 637,807 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25107 | 0 |
| B | 0 | 30111 | 0 |
| C | 0 | 17417 | 1 |
| D | 0 | 25779 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7346 | 114 | 1.551865% |
| B | 7346 | 953 | 12.973047% |
| C | 7346 | 220 | 2.994827% |
| D | 7346 | 1041 | 14.170977% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7346 | 7346 | 21 | 21 | 0.29% | 0.29% |  |
| B | 7346 | 7346 | 641 | 641 | 8.73% | 8.73% |  |
| C | 7346 | 7346 | 188 | 188 | 2.56% | 2.56% |  |
| D | 7346 | 7346 | 825 | 825 | 11.23% | 11.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3359653 | 18983.89 | 834 | 815 | 176.9 |
| A | 4 | 0 | 62007 | 345.85 | 834 | 815 | 176.9 |
| A | 13 | 248 | 21959 | 119.5 | 834 | 815 | 176.9 |
| B | 3 | 112 | 4303548 | 27252.75 | 803 | 779 | 157.9 |
| B | 5 | 172 | 353803 | 2235.97 | 803 | 779 | 157.9 |
| B | 0 | 190 | 141603 | 891.95 | 803 | 779 | 157.9 |
| C | 14 | 254 | 861646 | 4499.38 | 810 | 816 | 191.3 |
| C | 12 | 2 | 26424 | 133.85 | 810 | 816 | 191.3 |
| C | 3 | 233 | 15995 | 79.34 | 810 | 816 | 191.3 |
| D | 1 | 47 | 1877623 | 9388.04 | 778 | 753 | 199.9 |
| D | 1 | 52 | 945764 | 4726.92 | 778 | 753 | 199.9 |
| D | 13 | 249 | 492390 | 2459.15 | 778 | 753 | 199.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

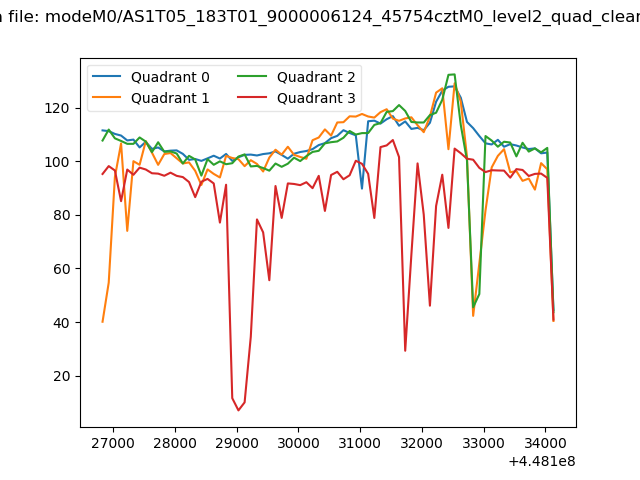

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

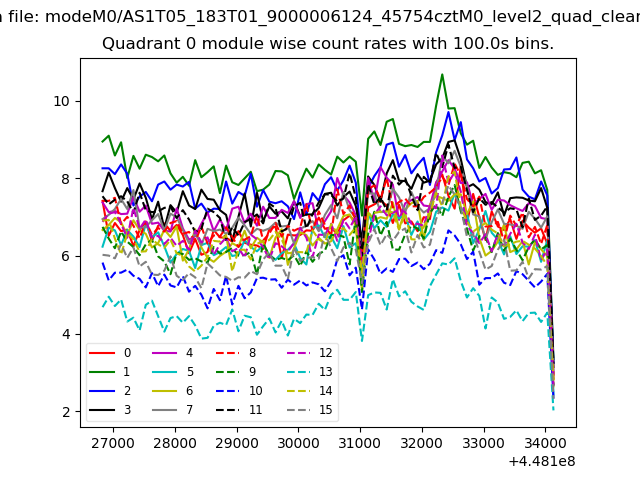

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

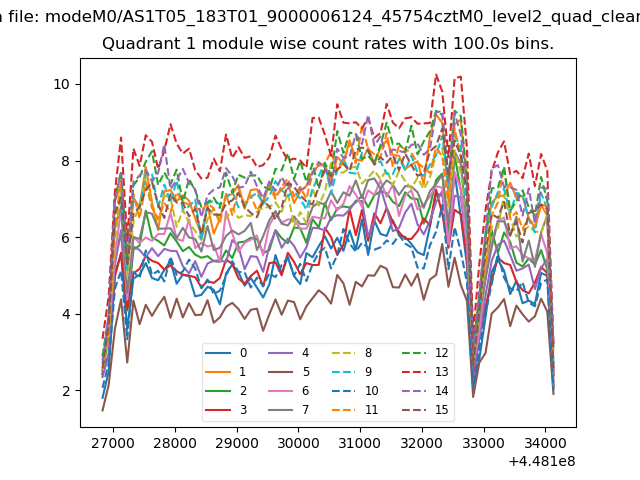

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

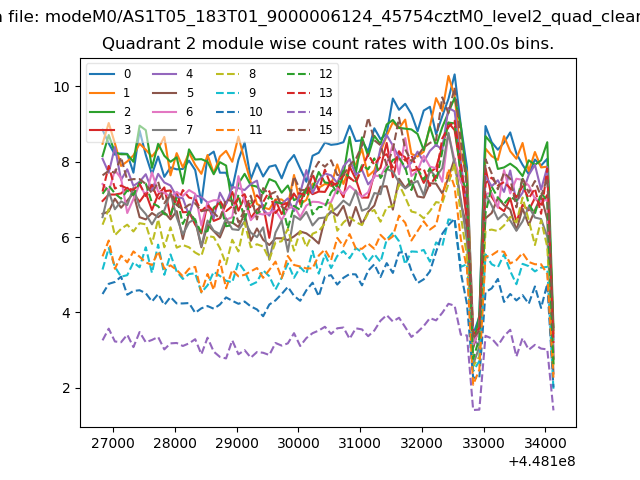

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

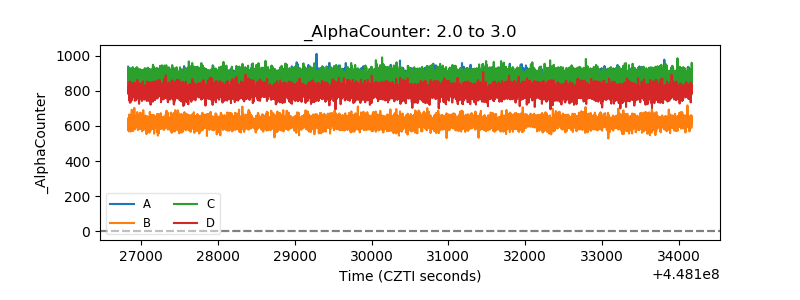

| Alpha Counter |  |

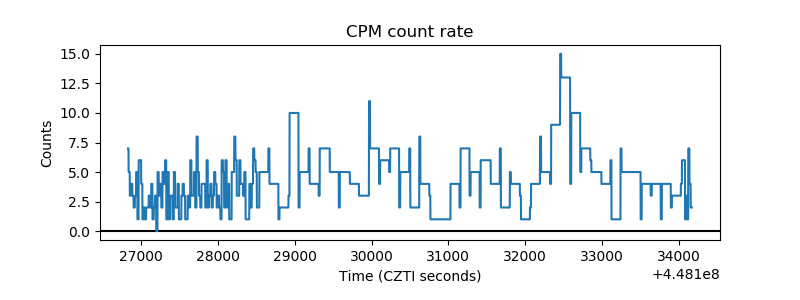

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

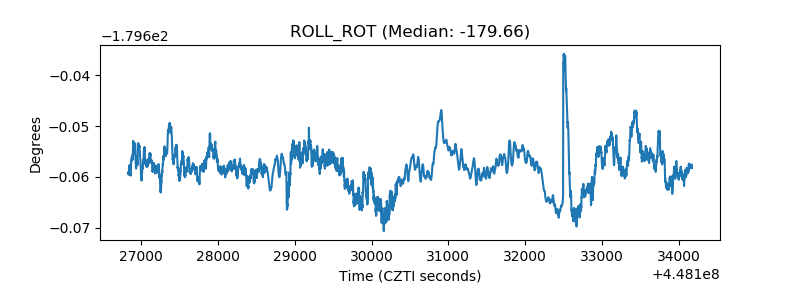

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

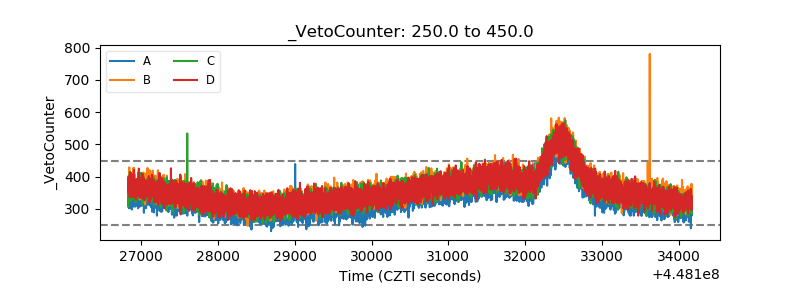

| Veto Counter |  |
