| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_183T01_9000006124_45779cztM0_level2.fits | modeM0/AS1T05_183T01_9000006124_45779cztM0_level2_quad_clean.evt |
| Size (bytes) | 650,568,960 | 112,466,880 |
| Size | 620.4 MB | 107.3 MB |
| Events in quadrant A | 6,543,536 | 766,295 |
| Events in quadrant B | 6,598,402 | 736,030 |
| Events in quadrant C | 3,650,109 | 784,022 |
| Events in quadrant D | 6,792,939 | 670,553 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23737 | 2 |
| B | 0 | 24210 | 2 |
| C | 0 | 14997 | 2 |
| D | 0 | 24794 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6430 | 360 | 5.598756% |
| B | 6430 | 879 | 13.670295% |
| C | 6430 | 131 | 2.037325% |
| D | 6430 | 688 | 10.699844% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7635 | 6431 | 44 | 44 | 0.58% | 0.68% |  |
| B | 7635 | 6430 | 450 | 450 | 5.89% | 7.00% |  |
| C | 7635 | 6431 | 67 | 67 | 0.88% | 1.04% |  |
| D | 7635 | 6431 | 473 | 473 | 6.20% | 7.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3123472 | 19128.59 | 794 | 778 | 163.2 |
| A | 13 | 248 | 270380 | 1651.49 | 794 | 778 | 163.2 |
| A | 4 | 0 | 29662 | 176.93 | 794 | 778 | 163.2 |
| B | 3 | 112 | 2619631 | 17540.34 | 766 | 745 | 149.3 |
| B | 4 | 171 | 260338 | 1738.66 | 766 | 745 | 149.3 |
| B | 8 | 234 | 167458 | 1116.58 | 766 | 745 | 149.3 |
| C | 14 | 254 | 366687 | 2005.16 | 779 | 786 | 182.5 |
| C | 1 | 3 | 131109 | 714.18 | 779 | 786 | 182.5 |
| C | 12 | 2 | 59157 | 319.88 | 779 | 786 | 182.5 |
| D | 11 | 241 | 1214725 | 6365.36 | 761 | 739 | 190.7 |
| D | 2 | 249 | 867911 | 4546.89 | 761 | 739 | 190.7 |
| D | 1 | 52 | 798824 | 4184.64 | 761 | 739 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

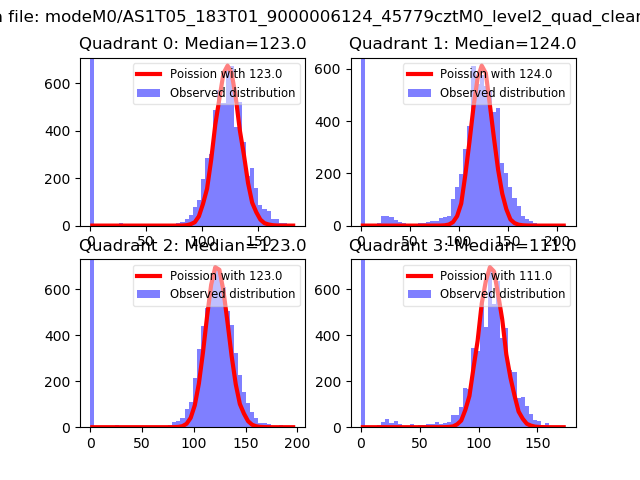

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

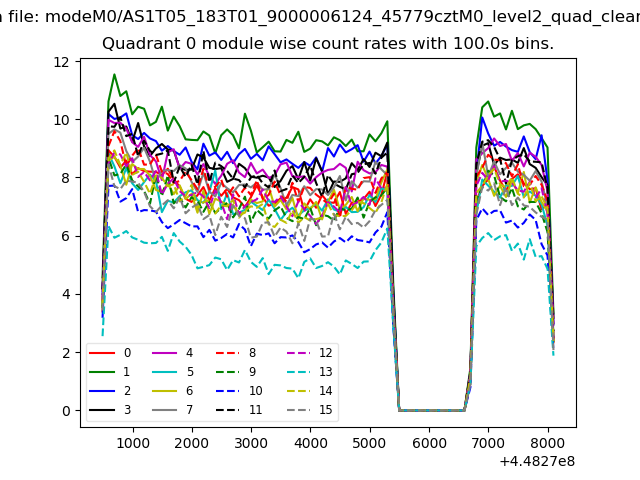

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

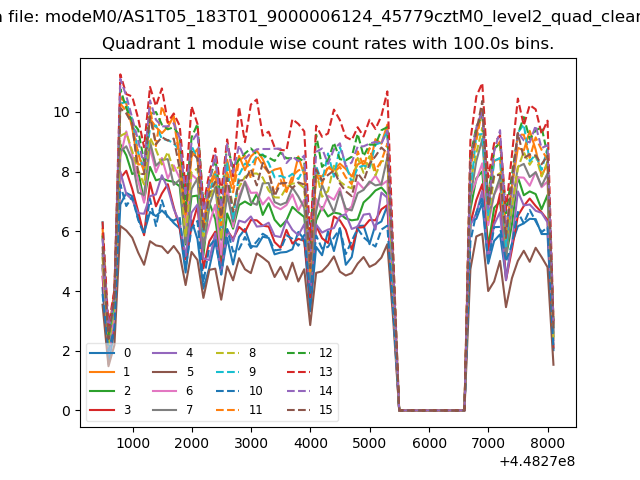

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

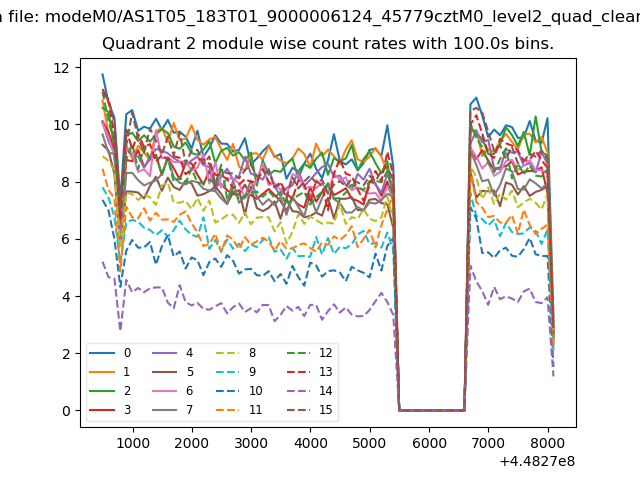

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

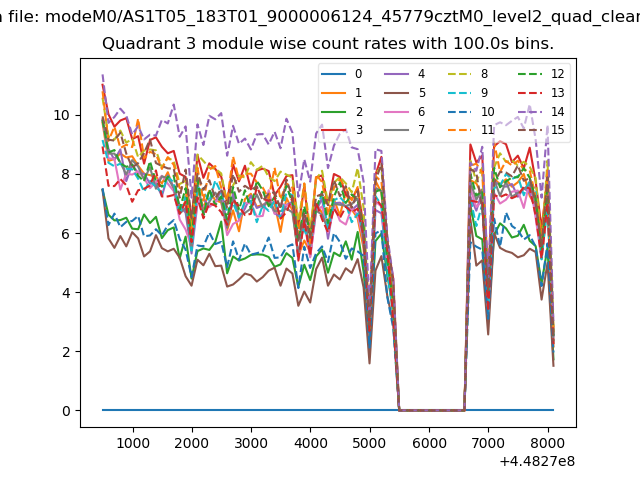

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

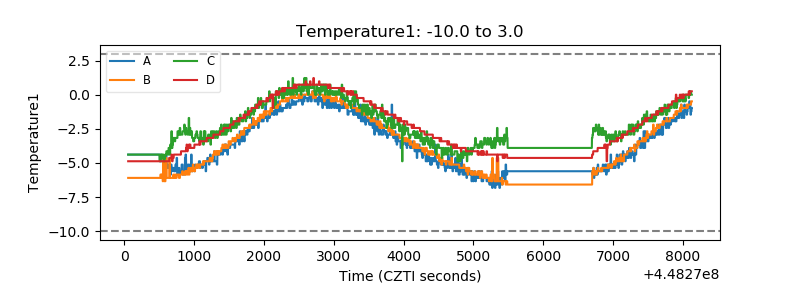

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

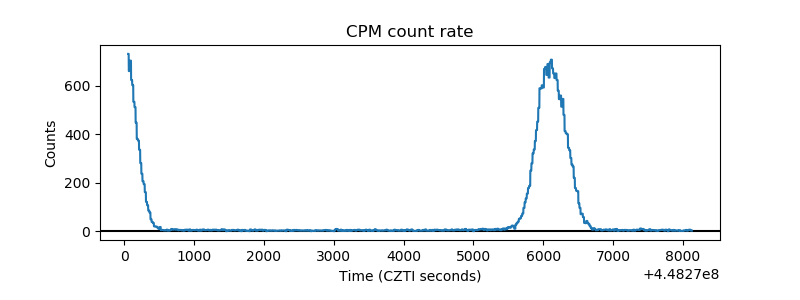

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
