| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_185T01_9000006128_45817cztM0_level2.fits | modeM0/AS1T05_185T01_9000006128_45817cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,842,880 | 82,578,240 |
| Size | 409.9 MB | 78.8 MB |
| Events in quadrant A | 4,362,818 | 557,713 |
| Events in quadrant B | 3,639,959 | 570,422 |
| Events in quadrant C | 2,337,058 | 549,723 |
| Events in quadrant D | 5,167,042 | 457,029 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16613 | 1 |
| B | 0 | 14481 | 2 |
| C | 0 | 10747 | 1 |
| D | 0 | 19039 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5212 | 99 | 1.899463% |
| B | 5211 | 215 | 4.125888% |
| C | 5211 | 38 | 0.729227% |
| D | 5211 | 554 | 10.631357% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6082 | 5213 | 13 | 13 | 0.21% | 0.25% |  |
| B | 6081 | 5212 | 101 | 101 | 1.66% | 1.94% |  |
| C | 6081 | 5212 | 15 | 15 | 0.25% | 0.29% |  |
| D | 6080 | 5210 | 427 | 427 | 7.02% | 8.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2124307 | 17807.73 | 574 | 561 | 119.3 |
| A | 13 | 254 | 8354 | 65.34 | 574 | 561 | 119.3 |
| A | 3 | 137 | 6606 | 50.69 | 574 | 561 | 119.3 |
| B | 3 | 112 | 1052646 | 9343.16 | 569 | 553 | 112.6 |
| B | 0 | 171 | 155825 | 1378.9 | 569 | 553 | 112.6 |
| B | 0 | 190 | 40042 | 350.68 | 569 | 553 | 112.6 |
| C | 12 | 250 | 55250 | 406.12 | 571 | 575 | 134.6 |
| C | 2 | 14 | 30657 | 223.45 | 571 | 575 | 134.6 |
| C | 5 | 128 | 9192 | 64.01 | 571 | 575 | 134.6 |
| D | 11 | 241 | 1409128 | 10312.84 | 536 | 520 | 136.6 |
| D | 13 | 249 | 635079 | 4645.8 | 536 | 520 | 136.6 |
| D | 12 | 2 | 518116 | 3789.48 | 536 | 520 | 136.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

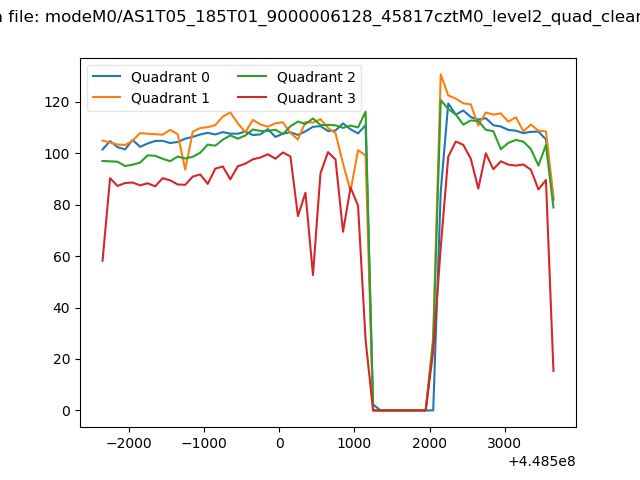

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

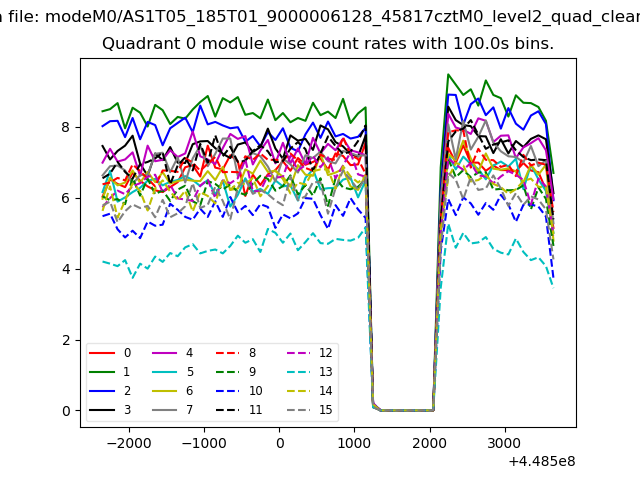

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

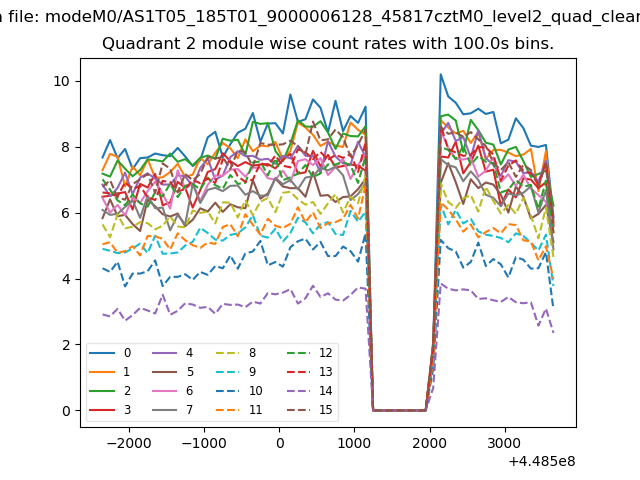

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
