| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006142_45912cztM0_level2.fits | modeM0/AS1A13_071T03_9000006142_45912cztM0_level2_quad_clean.evt |
| Size (bytes) | 783,164,160 | 98,625,600 |
| Size | 746.9 MB | 94.1 MB |
| Events in quadrant A | 5,908,218 | 701,009 |
| Events in quadrant B | 6,475,331 | 701,653 |
| Events in quadrant C | 3,020,900 | 714,210 |
| Events in quadrant D | 13,054,530 | 389,929 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22007 | 2 |
| B | 0 | 24029 | 1 |
| C | 0 | 14267 | 1 |
| D | 0 | 43531 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6875 | 259 | 3.767273% |
| B | 6876 | 622 | 9.045957% |
| C | 6876 | 85 | 1.236184% |
| D | 6876 | 3187 | 46.349622% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7290 | 6875 | 22 | 22 | 0.30% | 0.32% |  |
| B | 7291 | 6876 | 294 | 294 | 4.03% | 4.28% |  |
| C | 7291 | 6878 | 8 | 8 | 0.11% | 0.12% |  |
| D | 7291 | 6876 | 2979 | 2979 | 40.86% | 43.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2905383 | 18618.31 | 749 | 730 | 156.0 |
| A | 0 | 247 | 64632 | 409.6 | 749 | 730 | 156.0 |
| A | 14 | 235 | 17835 | 109.64 | 749 | 730 | 156.0 |
| B | 3 | 112 | 3451083 | 23711.55 | 735 | 713 | 145.5 |
| B | 0 | 186 | 30153 | 202.32 | 735 | 713 | 145.5 |
| B | 4 | 158 | 29717 | 199.32 | 735 | 713 | 145.5 |
| C | 12 | 2 | 70400 | 397.33 | 746 | 750 | 175.3 |
| C | 4 | 254 | 20689 | 113.75 | 746 | 750 | 175.3 |
| C | 14 | 254 | 9792 | 51.58 | 746 | 750 | 175.3 |
| D | 11 | 241 | 5994151 | 39518.06 | 601 | 582 | 151.7 |
| D | 1 | 52 | 3712673 | 24475.34 | 601 | 582 | 151.7 |
| D | 13 | 249 | 482861 | 3179.86 | 601 | 582 | 151.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

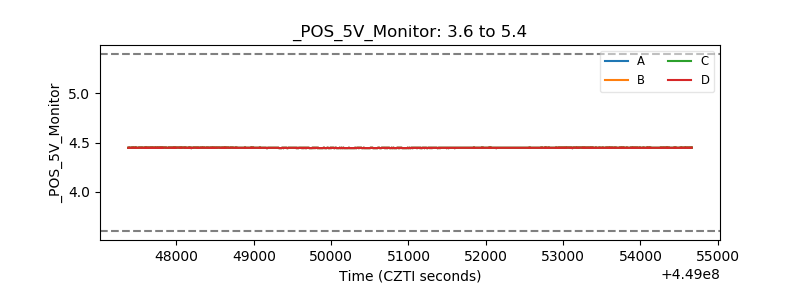

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
