| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006142_45913cztM0_level2.fits | modeM0/AS1A13_071T03_9000006142_45913cztM0_level2_quad_clean.evt |
| Size (bytes) | 827,006,400 | 110,021,760 |
| Size | 788.7 MB | 104.9 MB |
| Events in quadrant A | 6,257,890 | 772,959 |
| Events in quadrant B | 9,123,484 | 675,008 |
| Events in quadrant C | 5,174,178 | 730,137 |
| Events in quadrant D | 9,485,268 | 636,086 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23290 | 0 |
| B | 0 | 32338 | 0 |
| C | 0 | 20949 | 5 |
| D | 0 | 33494 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7424 | 113 | 1.522091% |
| B | 7425 | 1422 | 19.151515% |
| C | 7424 | 552 | 7.435345% |
| D | 7424 | 1015 | 13.671875% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7424 | 7424 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7425 | 7425 | 799 | 799 | 10.76% | 10.76% |  |
| C | 7424 | 7424 | 392 | 392 | 5.28% | 5.28% |  |
| D | 7424 | 7424 | 874 | 874 | 11.77% | 11.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3061792 | 17911.34 | 814 | 795 | 170.9 |
| A | 14 | 235 | 17468 | 97.56 | 814 | 795 | 170.9 |
| A | 13 | 254 | 12427 | 68.06 | 814 | 795 | 170.9 |
| B | 3 | 112 | 5636357 | 36993.13 | 769 | 743 | 152.3 |
| B | 12 | 18 | 153337 | 1001.65 | 769 | 743 | 152.3 |
| B | 8 | 234 | 90586 | 589.74 | 769 | 743 | 152.3 |
| C | 14 | 254 | 2050573 | 11083.99 | 783 | 786 | 184.9 |
| C | 12 | 2 | 36267 | 191.86 | 783 | 786 | 184.9 |
| C | 4 | 254 | 15535 | 79.75 | 783 | 786 | 184.9 |
| D | 11 | 241 | 3618956 | 18672.72 | 767 | 743 | 193.8 |
| D | 1 | 52 | 2235473 | 11532.9 | 767 | 743 | 193.8 |
| D | 13 | 249 | 270975 | 1394.6 | 767 | 743 | 193.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

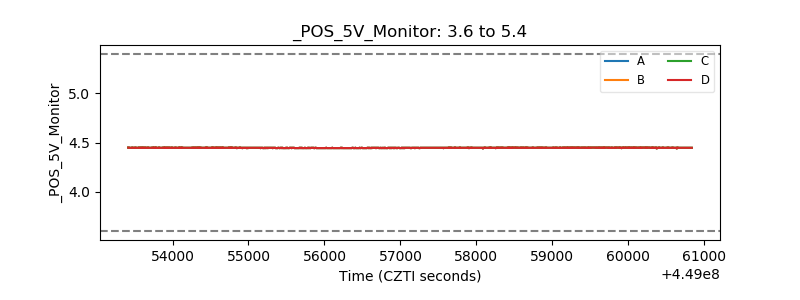

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
