| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006142_45914cztM0_level2.fits | modeM0/AS1A13_071T03_9000006142_45914cztM0_level2_quad_clean.evt |
| Size (bytes) | 825,189,120 | 117,262,080 |
| Size | 787.0 MB | 111.8 MB |
| Events in quadrant A | 6,634,527 | 803,767 |
| Events in quadrant B | 7,152,306 | 791,095 |
| Events in quadrant C | 5,756,441 | 765,718 |
| Events in quadrant D | 10,406,765 | 651,787 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24394 | 0 |
| B | 0 | 26642 | 1 |
| C | 0 | 22562 | 0 |
| D | 0 | 36378 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7735 | 56 | 0.723982% |
| B | 7734 | 514 | 6.645979% |
| C | 7734 | 498 | 6.439100% |
| D | 7735 | 1108 | 14.324499% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 7735 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7734 | 7734 | 353 | 353 | 4.56% | 4.56% |  |
| C | 7734 | 7734 | 438 | 438 | 5.66% | 5.66% |  |
| D | 7735 | 7735 | 889 | 889 | 11.49% | 11.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3168116 | 17733.52 | 846 | 826 | 178.6 |
| A | 14 | 235 | 168383 | 938.14 | 846 | 826 | 178.6 |
| A | 13 | 254 | 13436 | 70.6 | 846 | 826 | 178.6 |
| B | 3 | 112 | 3653215 | 22333.16 | 826 | 800 | 163.5 |
| B | 4 | 158 | 73187 | 442.62 | 826 | 800 | 163.5 |
| B | 5 | 172 | 47168 | 283.52 | 826 | 800 | 163.5 |
| C | 14 | 254 | 2461610 | 12771.61 | 817 | 823 | 192.7 |
| C | 5 | 250 | 38503 | 195.56 | 817 | 823 | 192.7 |
| C | 12 | 2 | 33917 | 171.76 | 817 | 823 | 192.7 |
| D | 11 | 241 | 4006498 | 20174.55 | 787 | 761 | 198.6 |
| D | 1 | 52 | 2027548 | 10207.74 | 787 | 761 | 198.6 |
| D | 13 | 249 | 690493 | 3473.78 | 787 | 761 | 198.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

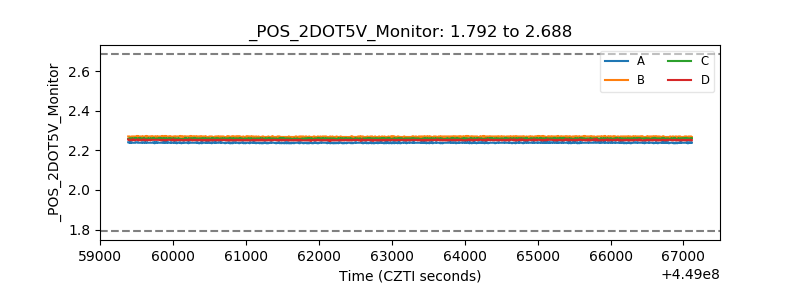

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
