| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006142_45915cztM0_level2.fits | modeM0/AS1A13_071T03_9000006142_45915cztM0_level2_quad_clean.evt |
| Size (bytes) | 843,799,680 | 118,794,240 |
| Size | 804.7 MB | 113.3 MB |
| Events in quadrant A | 6,958,401 | 799,932 |
| Events in quadrant B | 7,974,652 | 756,578 |
| Events in quadrant C | 4,111,181 | 823,755 |
| Events in quadrant D | 11,576,652 | 663,071 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25362 | 0 |
| B | 0 | 29129 | 0 |
| C | 0 | 17998 | 1 |
| D | 0 | 39938 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7958 | 338 | 4.247298% |
| B | 7959 | 1199 | 15.064707% |
| C | 7958 | 148 | 1.859764% |
| D | 7958 | 1345 | 16.901231% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7958 | 7958 | 38 | 38 | 0.48% | 0.48% |  |
| B | 7958 | 7958 | 764 | 764 | 9.60% | 9.60% |  |
| C | 7958 | 7958 | 90 | 90 | 1.13% | 1.13% |  |
| D | 7958 | 7958 | 1029 | 1029 | 12.93% | 12.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3297618 | 17560.51 | 897 | 875 | 187.7 |
| A | 0 | 247 | 111725 | 590.45 | 897 | 875 | 187.7 |
| A | 14 | 235 | 44908 | 234.54 | 897 | 875 | 187.7 |
| B | 3 | 112 | 4371687 | 25143.5 | 859 | 830 | 173.8 |
| B | 0 | 186 | 49176 | 278.11 | 859 | 830 | 173.8 |
| B | 4 | 158 | 29528 | 165.09 | 859 | 830 | 173.8 |
| C | 14 | 254 | 568334 | 2738.84 | 881 | 887 | 207.2 |
| C | 5 | 250 | 60294 | 286.73 | 881 | 887 | 207.2 |
| C | 12 | 249 | 27321 | 127.59 | 881 | 887 | 207.2 |
| D | 11 | 241 | 5723516 | 26746.34 | 840 | 814 | 214.0 |
| D | 1 | 52 | 1707892 | 7978.41 | 840 | 814 | 214.0 |
| D | 13 | 249 | 251293 | 1170.67 | 840 | 814 | 214.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

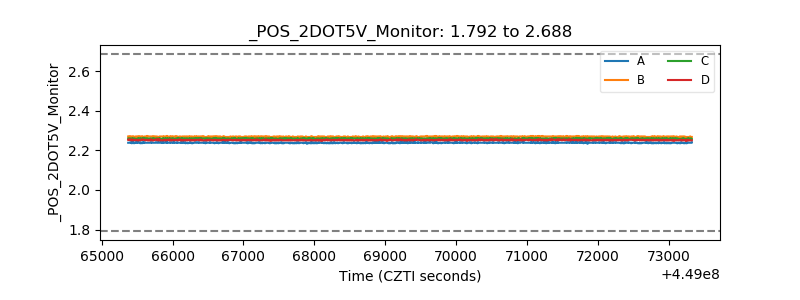

| +2.5 Volts monitor |  |

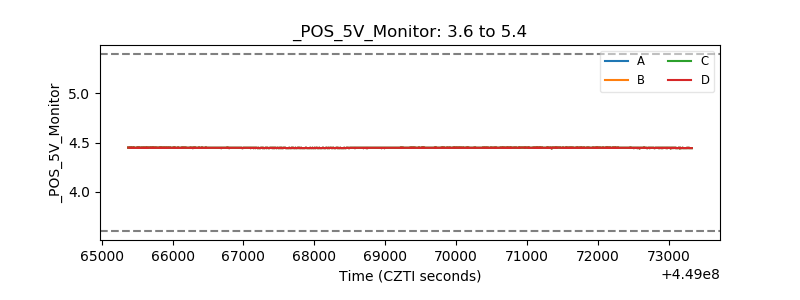

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
