| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006142_45921cztM0_level2.fits | modeM0/AS1A13_071T03_9000006142_45921cztM0_level2_quad_clean.evt |
| Size (bytes) | 670,273,920 | 99,578,880 |
| Size | 639.2 MB | 95.0 MB |
| Events in quadrant A | 5,919,550 | 692,318 |
| Events in quadrant B | 9,754,923 | 555,444 |
| Events in quadrant C | 3,005,913 | 699,496 |
| Events in quadrant D | 5,633,078 | 617,977 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22033 | 2 |
| B | 0 | 33493 | 2 |
| C | 0 | 13555 | 2 |
| D | 0 | 21243 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6440 | 271 | 4.208075% |
| B | 6440 | 2016 | 31.304348% |
| C | 6440 | 50 | 0.776398% |
| D | 6439 | 327 | 5.078428% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7525 | 6441 | 91 | 91 | 1.21% | 1.41% |  |
| B | 7525 | 6440 | 1424 | 1424 | 18.92% | 22.11% |  |
| C | 7525 | 6441 | 25 | 25 | 0.33% | 0.39% |  |
| D | 7524 | 6439 | 245 | 245 | 3.26% | 3.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3046859 | 20445.34 | 713 | 697 | 149.0 |
| A | 13 | 248 | 46311 | 306.15 | 713 | 697 | 149.0 |
| A | 0 | 247 | 25095 | 163.76 | 713 | 697 | 149.0 |
| B | 3 | 112 | 5813182 | 44912.07 | 656 | 636 | 129.4 |
| B | 10 | 246 | 1185993 | 9158.95 | 656 | 636 | 129.4 |
| B | 4 | 158 | 53461 | 408.17 | 656 | 636 | 129.4 |
| C | 14 | 254 | 151864 | 904.89 | 708 | 712 | 167.0 |
| C | 12 | 249 | 76041 | 450.97 | 708 | 712 | 167.0 |
| C | 12 | 2 | 9880 | 54.89 | 708 | 712 | 167.0 |
| D | 11 | 241 | 1768746 | 10043.2 | 693 | 672 | 176.0 |
| D | 13 | 249 | 364560 | 2066.99 | 693 | 672 | 176.0 |
| D | 2 | 249 | 298940 | 1694.25 | 693 | 672 | 176.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

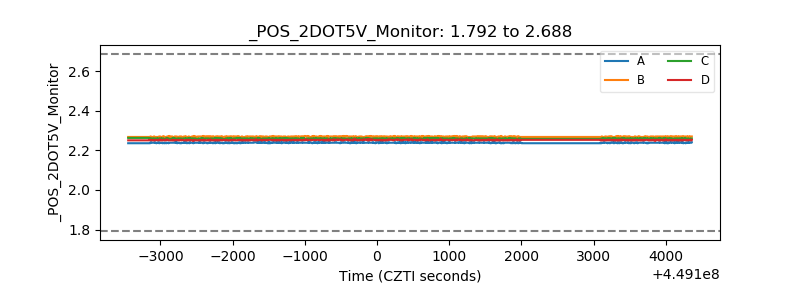

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
