| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006142_45923cztM0_level2.fits | modeM0/AS1A13_071T03_9000006142_45923cztM0_level2_quad_clean.evt |
| Size (bytes) | 607,049,280 | 104,964,480 |
| Size | 578.9 MB | 100.1 MB |
| Events in quadrant A | 5,926,747 | 726,391 |
| Events in quadrant B | 6,156,039 | 731,654 |
| Events in quadrant C | 2,905,590 | 744,067 |
| Events in quadrant D | 6,988,491 | 530,751 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22009 | 2 |
| B | 0 | 22533 | 2 |
| C | 0 | 13058 | 2 |
| D | 0 | 25132 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6382 | 200 | 3.133814% |
| B | 6382 | 497 | 7.787527% |
| C | 6381 | 9 | 0.141044% |
| D | 6381 | 1461 | 22.896098% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6383 | 55 | 55 | 0.73% | 0.86% |  |
| B | 7572 | 6383 | 283 | 283 | 3.74% | 4.43% |  |
| C | 7571 | 6382 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7571 | 6382 | 1302 | 1302 | 17.20% | 20.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2941849 | 19556.84 | 725 | 711 | 150.4 |
| A | 0 | 247 | 99325 | 655.73 | 725 | 711 | 150.4 |
| A | 13 | 248 | 38738 | 252.86 | 725 | 711 | 150.4 |
| B | 3 | 112 | 1891152 | 13512.96 | 720 | 699 | 139.9 |
| B | 10 | 246 | 1268934 | 9065.34 | 720 | 699 | 139.9 |
| B | 5 | 171 | 46571 | 327.89 | 720 | 699 | 139.9 |
| C | 12 | 249 | 15561 | 85.51 | 737 | 741 | 173.3 |
| C | 3 | 233 | 7280 | 37.73 | 737 | 741 | 173.3 |
| C | 14 | 254 | 6186 | 31.42 | 737 | 741 | 173.3 |
| D | 2 | 37 | 3305788 | 19794.72 | 656 | 636 | 167.0 |
| D | 1 | 52 | 473935 | 2834.61 | 656 | 636 | 167.0 |
| D | 2 | 120 | 213017 | 1271.96 | 656 | 636 | 167.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

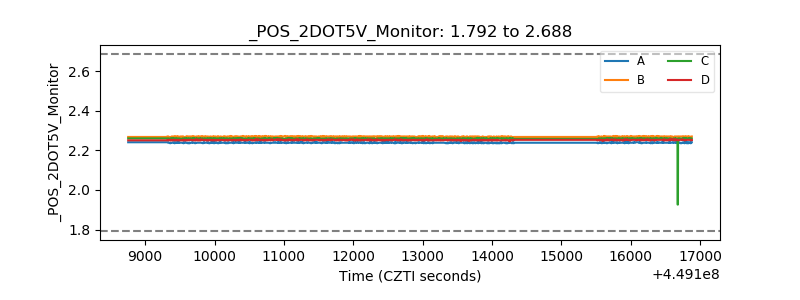

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
