| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006142_45924cztM0_level2.fits | modeM0/AS1A13_071T03_9000006142_45924cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,233,600 | 115,522,560 |
| Size | 519.0 MB | 110.2 MB |
| Events in quadrant A | 6,035,619 | 771,540 |
| Events in quadrant B | 5,902,252 | 780,936 |
| Events in quadrant C | 3,037,214 | 776,788 |
| Events in quadrant D | 4,644,150 | 694,484 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22676 | 1 |
| B | 0 | 22384 | 1 |
| C | 0 | 13861 | 1 |
| D | 0 | 18472 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6800 | 122 | 1.794118% |
| B | 6801 | 364 | 5.352154% |
| C | 6801 | 17 | 0.249963% |
| D | 6801 | 174 | 2.558447% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7985 | 6801 | 16 | 16 | 0.20% | 0.24% |  |
| B | 7986 | 6801 | 165 | 165 | 2.07% | 2.43% |  |
| C | 7986 | 6802 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7986 | 6802 | 136 | 136 | 1.70% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3050879 | 19260.24 | 761 | 746 | 158.4 |
| A | 13 | 248 | 12985 | 77.28 | 761 | 746 | 158.4 |
| A | 2 | 79 | 12493 | 74.18 | 761 | 746 | 158.4 |
| B | 3 | 112 | 1682029 | 11360.55 | 758 | 735 | 148.0 |
| B | 10 | 246 | 1187738 | 8020.61 | 758 | 735 | 148.0 |
| B | 12 | 111 | 17895 | 115.95 | 758 | 735 | 148.0 |
| C | 12 | 2 | 12694 | 65.73 | 772 | 774 | 181.4 |
| C | 12 | 249 | 12026 | 62.04 | 772 | 774 | 181.4 |
| C | 13 | 61 | 5078 | 23.73 | 772 | 774 | 181.4 |
| D | 11 | 241 | 694218 | 3606.53 | 756 | 733 | 192.3 |
| D | 2 | 37 | 566661 | 2943.16 | 756 | 733 | 192.3 |
| D | 5 | 171 | 91584 | 472.48 | 756 | 733 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

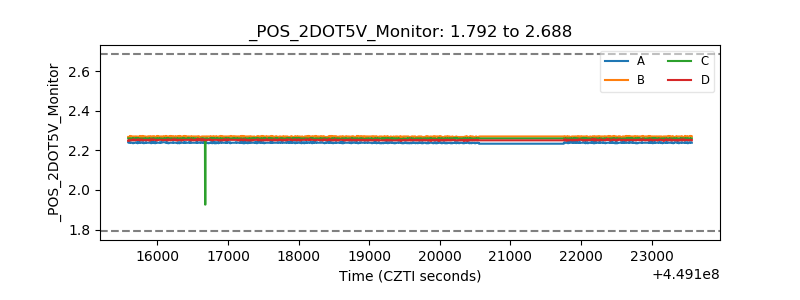

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
