| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006142_45929cztM0_level2.fits | modeM0/AS1A13_071T03_9000006142_45929cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,934,720 | 116,922,240 |
| Size | 586.4 MB | 111.5 MB |
| Events in quadrant A | 6,393,846 | 780,220 |
| Events in quadrant B | 7,453,693 | 743,530 |
| Events in quadrant C | 3,693,122 | 779,533 |
| Events in quadrant D | 4,638,606 | 712,270 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23495 | 0 |
| B | 0 | 27169 | 0 |
| C | 0 | 16631 | 0 |
| D | 0 | 18817 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7538 | 126 | 1.671531% |
| B | 7538 | 935 | 12.403821% |
| C | 7538 | 94 | 1.247015% |
| D | 7538 | 101 | 1.339878% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7538 | 7538 | 7 | 7 | 0.09% | 0.09% |  |
| B | 7538 | 7538 | 677 | 677 | 8.98% | 8.98% |  |
| C | 7538 | 7538 | 72 | 72 | 0.96% | 0.96% |  |
| D | 7538 | 7538 | 78 | 78 | 1.03% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3083812 | 17419.82 | 840 | 820 | 177.0 |
| A | 0 | 247 | 23046 | 125.58 | 840 | 820 | 177.0 |
| A | 14 | 235 | 15346 | 82.08 | 840 | 820 | 177.0 |
| B | 3 | 112 | 3945739 | 24486.86 | 806 | 780 | 161.1 |
| B | 10 | 246 | 113357 | 698.78 | 806 | 780 | 161.1 |
| B | 4 | 171 | 49298 | 301.16 | 806 | 780 | 161.1 |
| C | 14 | 254 | 394064 | 2025.33 | 822 | 827 | 194.2 |
| C | 12 | 2 | 30076 | 150.64 | 822 | 827 | 194.2 |
| C | 12 | 249 | 28956 | 144.88 | 822 | 827 | 194.2 |
| D | 11 | 241 | 492848 | 2362.16 | 825 | 797 | 208.3 |
| D | 1 | 52 | 224263 | 1072.78 | 825 | 797 | 208.3 |
| D | 2 | 37 | 156782 | 748.83 | 825 | 797 | 208.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

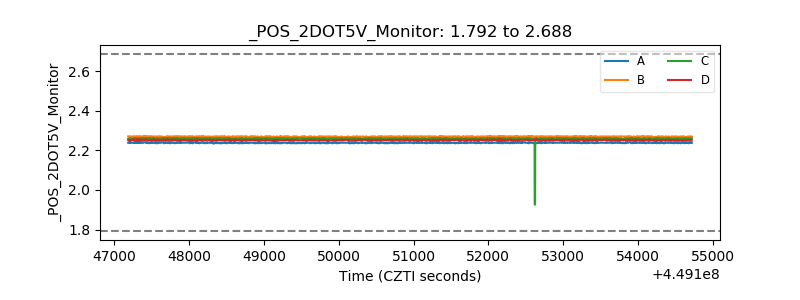

| +2.5 Volts monitor |  |

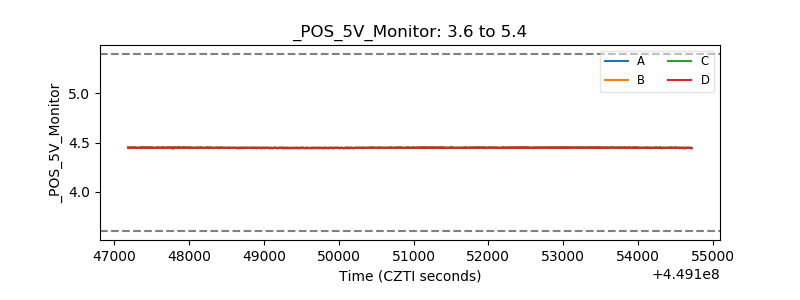

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
