| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_033T03_9000006144_45938cztM0_level2.fits | modeM0/AS1A13_033T03_9000006144_45938cztM0_level2_quad_clean.evt |
| Size (bytes) | 593,784,000 | 114,278,400 |
| Size | 566.3 MB | 109.0 MB |
| Events in quadrant A | 6,136,973 | 780,373 |
| Events in quadrant B | 6,806,456 | 735,912 |
| Events in quadrant C | 3,492,199 | 782,103 |
| Events in quadrant D | 5,015,325 | 686,074 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22986 | 2 |
| B | 0 | 25069 | 2 |
| C | 0 | 15192 | 2 |
| D | 0 | 19589 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6830 | 214 | 3.133236% |
| B | 6830 | 933 | 13.660322% |
| C | 6830 | 99 | 1.449488% |
| D | 6830 | 420 | 6.149341% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8005 | 6831 | 28 | 28 | 0.35% | 0.41% |  |
| B | 8005 | 6831 | 547 | 547 | 6.83% | 8.01% |  |
| C | 8005 | 6832 | 75 | 75 | 0.94% | 1.10% |  |
| D | 8005 | 6832 | 396 | 396 | 4.95% | 5.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3057995 | 18890.16 | 786 | 772 | 161.8 |
| A | 0 | 247 | 43065 | 261.32 | 786 | 772 | 161.8 |
| A | 3 | 137 | 8677 | 48.84 | 786 | 772 | 161.8 |
| B | 3 | 112 | 3455416 | 23100.62 | 762 | 741 | 149.5 |
| B | 4 | 158 | 275513 | 1837.34 | 762 | 741 | 149.5 |
| B | 12 | 111 | 18829 | 120.95 | 762 | 741 | 149.5 |
| C | 14 | 254 | 360983 | 1975.55 | 776 | 780 | 182.3 |
| C | 3 | 233 | 32761 | 175.4 | 776 | 780 | 182.3 |
| C | 5 | 250 | 27537 | 146.75 | 776 | 780 | 182.3 |
| D | 2 | 37 | 864720 | 4532.56 | 757 | 735 | 190.6 |
| D | 12 | 233 | 580620 | 3042.14 | 757 | 735 | 190.6 |
| D | 2 | 249 | 200529 | 1048.14 | 757 | 735 | 190.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

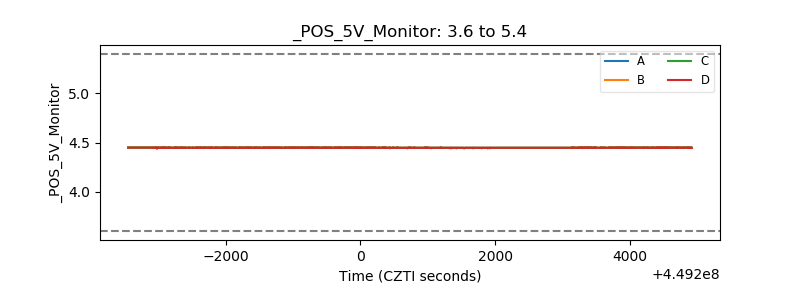

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
