| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T06_9000006146_45956cztM0_level2.fits | modeM0/AS1A13_071T06_9000006146_45956cztM0_level2_quad_clean.evt |
| Size (bytes) | 771,600,960 | 118,586,880 |
| Size | 735.9 MB | 113.1 MB |
| Events in quadrant A | 6,877,377 | 794,076 |
| Events in quadrant B | 9,327,093 | 696,687 |
| Events in quadrant C | 4,121,230 | 836,590 |
| Events in quadrant D | 7,618,560 | 707,558 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25326 | 2 |
| B | 0 | 33247 | 2 |
| C | 0 | 18096 | 2 |
| D | 0 | 28237 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7990 | 599 | 7.496871% |
| B | 7990 | 2001 | 25.043805% |
| C | 7989 | 271 | 3.392164% |
| D | 7990 | 788 | 9.862328% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8765 | 7990 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8765 | 7990 | 1189 | 1189 | 13.57% | 14.88% |  |
| C | 8764 | 7990 | 42 | 42 | 0.48% | 0.53% |  |
| D | 8765 | 7990 | 397 | 397 | 4.53% | 4.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3285702 | 17090.38 | 917 | 892 | 192.2 |
| A | 7 | 3 | 20315 | 101.05 | 917 | 892 | 192.2 |
| A | 0 | 247 | 14432 | 70.45 | 917 | 892 | 192.2 |
| B | 3 | 112 | 5582416 | 32381.87 | 860 | 830 | 172.4 |
| B | 4 | 21 | 246163 | 1423.31 | 860 | 830 | 172.4 |
| B | 5 | 172 | 34035 | 192.64 | 860 | 830 | 172.4 |
| C | 12 | 250 | 381746 | 1774.84 | 914 | 916 | 214.6 |
| C | 12 | 249 | 59904 | 274.91 | 914 | 916 | 214.6 |
| C | 3 | 233 | 48692 | 222.66 | 914 | 916 | 214.6 |
| D | 11 | 241 | 3281742 | 14610.31 | 888 | 858 | 224.6 |
| D | 12 | 233 | 194573 | 862.64 | 888 | 858 | 224.6 |
| D | 13 | 249 | 175378 | 777.17 | 888 | 858 | 224.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

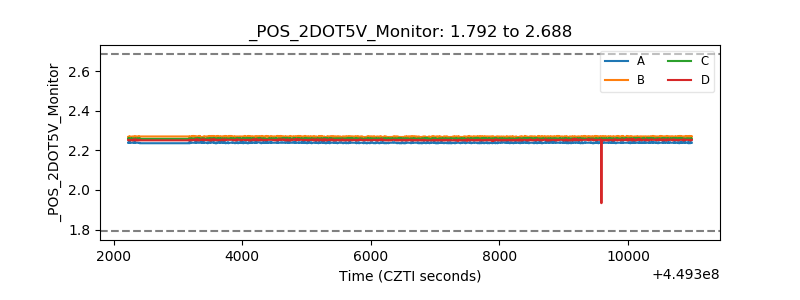

| +2.5 Volts monitor |  |

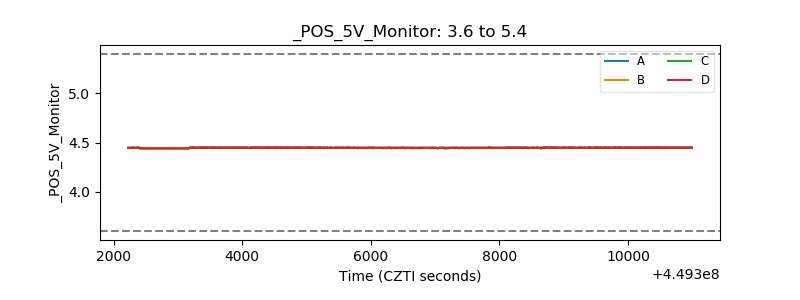

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
