| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T06_9000006146_45957cztM0_level2.fits | modeM0/AS1A13_071T06_9000006146_45957cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,986,880 | 123,670,080 |
| Size | 676.1 MB | 117.9 MB |
| Events in quadrant A | 6,675,047 | 837,603 |
| Events in quadrant B | 8,954,551 | 779,622 |
| Events in quadrant C | 3,454,022 | 832,949 |
| Events in quadrant D | 6,546,941 | 741,954 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24449 | 0 |
| B | 0 | 32325 | 0 |
| C | 0 | 16184 | 0 |
| D | 0 | 25029 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7945 | 86 | 1.082442% |
| B | 7946 | 1164 | 14.648880% |
| C | 7946 | 6 | 0.075510% |
| D | 7945 | 191 | 2.404028% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7944 | 7944 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7946 | 7946 | 935 | 935 | 11.77% | 11.77% |  |
| C | 7946 | 7946 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7945 | 7945 | 171 | 171 | 2.15% | 2.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3205365 | 17302.34 | 881 | 861 | 185.2 |
| A | 0 | 247 | 31561 | 165.76 | 881 | 861 | 185.2 |
| A | 14 | 235 | 15314 | 78.04 | 881 | 861 | 185.2 |
| B | 3 | 112 | 5053455 | 30239.13 | 841 | 814 | 167.1 |
| B | 4 | 21 | 464067 | 2772.48 | 841 | 814 | 167.1 |
| B | 8 | 234 | 23063 | 133.15 | 841 | 814 | 167.1 |
| C | 12 | 249 | 34854 | 166.83 | 866 | 869 | 203.7 |
| C | 14 | 254 | 20182 | 94.8 | 866 | 869 | 203.7 |
| C | 10 | 20 | 12202 | 55.63 | 866 | 869 | 203.7 |
| D | 11 | 241 | 2573285 | 11922.93 | 853 | 824 | 215.8 |
| D | 12 | 233 | 210289 | 970.84 | 853 | 824 | 215.8 |
| D | 12 | 2 | 133035 | 612.78 | 853 | 824 | 215.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

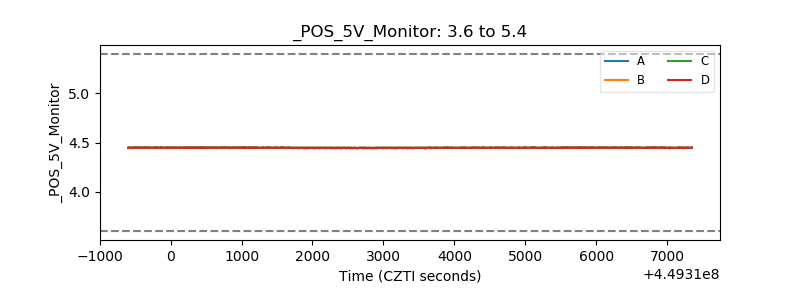

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
