| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006148_45965cztM0_level2.fits | modeM0/AS1A13_017T01_9000006148_45965cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,142,080 | 75,758,400 |
| Size | 423.6 MB | 72.2 MB |
| Events in quadrant A | 4,075,520 | 523,994 |
| Events in quadrant B | 7,091,010 | 428,025 |
| Events in quadrant C | 2,212,853 | 528,648 |
| Events in quadrant D | 2,692,465 | 479,365 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15399 | 2 |
| B | 0 | 24393 | 1 |
| C | 0 | 10192 | 1 |
| D | 0 | 11419 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4751 | 102 | 2.146916% |
| B | 4751 | 1321 | 27.804673% |
| C | 4751 | 54 | 1.136603% |
| D | 4751 | 90 | 1.894338% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5911 | 4752 | 38 | 38 | 0.64% | 0.80% |  |
| B | 5911 | 4751 | 1028 | 1028 | 17.39% | 21.64% |  |
| C | 5911 | 4752 | 41 | 41 | 0.69% | 0.86% |  |
| D | 5911 | 4752 | 55 | 55 | 0.93% | 1.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1989610 | 18318.02 | 521 | 511 | 108.6 |
| A | 7 | 3 | 52769 | 481.25 | 521 | 511 | 108.6 |
| A | 13 | 254 | 7106 | 60.73 | 521 | 511 | 108.6 |
| B | 3 | 112 | 5114450 | 53888.79 | 482 | 467 | 94.9 |
| B | 15 | 54 | 30696 | 318.54 | 482 | 467 | 94.9 |
| B | 5 | 172 | 14688 | 149.85 | 482 | 467 | 94.9 |
| C | 14 | 254 | 175368 | 1422.17 | 519 | 523 | 122.9 |
| C | 5 | 250 | 6220 | 46.34 | 519 | 523 | 122.9 |
| C | 13 | 61 | 3543 | 24.56 | 519 | 523 | 122.9 |
| D | 11 | 241 | 327943 | 2547.85 | 511 | 496 | 128.5 |
| D | 2 | 249 | 110385 | 855.04 | 511 | 496 | 128.5 |
| D | 1 | 52 | 95793 | 741.5 | 511 | 496 | 128.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

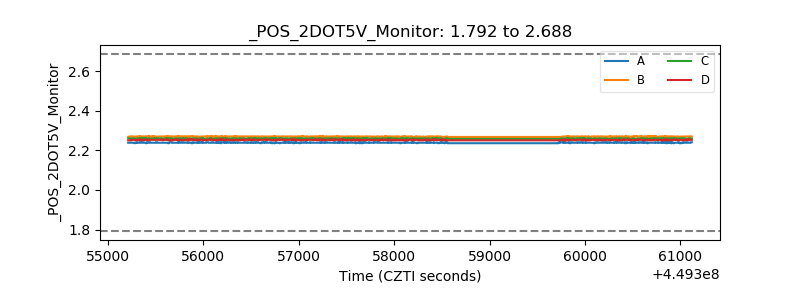

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
