| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006148_45966cztM0_level2.fits | modeM0/AS1A13_017T01_9000006148_45966cztM0_level2_quad_clean.evt |
| Size (bytes) | 597,867,840 | 105,024,960 |
| Size | 570.2 MB | 100.2 MB |
| Events in quadrant A | 5,690,518 | 722,434 |
| Events in quadrant B | 8,980,746 | 612,919 |
| Events in quadrant C | 3,024,824 | 736,559 |
| Events in quadrant D | 3,944,472 | 666,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21230 | 3 |
| B | 0 | 31178 | 2 |
| C | 0 | 13552 | 2 |
| D | 0 | 16151 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6337 | 156 | 2.461733% |
| B | 6337 | 1655 | 26.116459% |
| C | 6337 | 59 | 0.931040% |
| D | 6337 | 59 | 0.931040% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7602 | 6339 | 76 | 76 | 1.00% | 1.20% |  |
| B | 7602 | 6337 | 1311 | 1311 | 17.25% | 20.69% |  |
| C | 7602 | 6339 | 47 | 47 | 0.62% | 0.74% |  |
| D | 7602 | 6339 | 73 | 73 | 0.96% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2822697 | 19197.47 | 709 | 695 | 147.0 |
| A | 7 | 3 | 89762 | 605.9 | 709 | 695 | 147.0 |
| A | 15 | 223 | 15014 | 97.41 | 709 | 695 | 147.0 |
| B | 3 | 112 | 6195356 | 47856.25 | 672 | 653 | 129.4 |
| B | 5 | 172 | 46897 | 357.25 | 672 | 653 | 129.4 |
| B | 15 | 54 | 34333 | 260.19 | 672 | 653 | 129.4 |
| C | 14 | 254 | 222818 | 1335.79 | 711 | 716 | 166.3 |
| C | 5 | 250 | 17131 | 98.72 | 711 | 716 | 166.3 |
| C | 3 | 233 | 5551 | 29.08 | 711 | 716 | 166.3 |
| D | 11 | 241 | 925490 | 5342.88 | 697 | 676 | 173.1 |
| D | 12 | 2 | 153489 | 882.84 | 697 | 676 | 173.1 |
| D | 13 | 249 | 58314 | 332.99 | 697 | 676 | 173.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

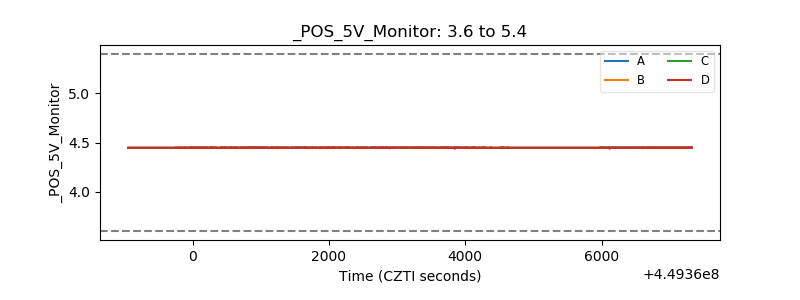

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
