| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006148_45972cztM0_level2.fits | modeM0/AS1A13_017T01_9000006148_45972cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,179,382,400 | 369,650,880 |
| Size | 2.0 GB | 352.5 MB |
| Events in quadrant A | 23,416,130 | 2,453,201 |
| Events in quadrant B | 25,375,374 | 2,326,461 |
| Events in quadrant C | 12,181,335 | 2,468,656 |
| Events in quadrant D | 17,844,106 | 2,284,522 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 486 | 0 |
| B | 0 | 486 | 0 |
| C | 0 | 486 | 0 |
| D | 0 | 486 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 85461 | 2 |
| B | 0 | 92197 | 2 |
| C | 0 | 54341 | 2 |
| D | 0 | 69940 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24108 | 1493 | 6.192965% |
| B | 24108 | 3743 | 15.525966% |
| C | 24109 | 754 | 3.127463% |
| D | 24108 | 561 | 2.327028% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25438 | 24108 | 863 | 863 | 3.39% | 3.58% |  |
| B | 25438 | 24108 | 2606 | 2606 | 10.24% | 10.81% |  |
| C | 25439 | 24110 | 557 | 557 | 2.19% | 2.31% |  |
| D | 25438 | 24108 | 406 | 406 | 1.60% | 1.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 9323982 | 17075.68 | 2648 | 2594 | 545.9 |
| A | 15 | 223 | 3573467 | 6541.42 | 2648 | 2594 | 545.9 |
| A | 7 | 3 | 188399 | 340.37 | 2648 | 2594 | 545.9 |
| B | 3 | 112 | 15064158 | 29920.37 | 2551 | 2467 | 503.4 |
| B | 5 | 250 | 65787 | 125.79 | 2551 | 2467 | 503.4 |
| B | 12 | 111 | 65365 | 124.95 | 2551 | 2467 | 503.4 |
| C | 5 | 250 | 1215060 | 2005.84 | 2602 | 2613 | 604.5 |
| C | 14 | 254 | 625491 | 1030.47 | 2602 | 2613 | 604.5 |
| C | 12 | 250 | 136337 | 221.23 | 2602 | 2613 | 604.5 |
| D | 11 | 241 | 5318182 | 8213.33 | 2615 | 2530 | 647.2 |
| D | 12 | 2 | 1194728 | 1842.09 | 2615 | 2530 | 647.2 |
| D | 13 | 249 | 453154 | 696.27 | 2615 | 2530 | 647.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

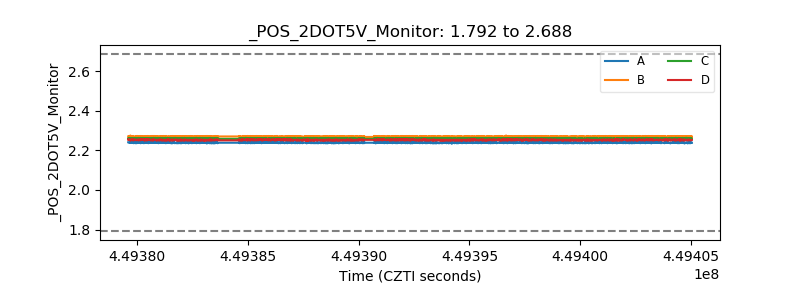

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
