| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006148_45975cztM0_level2.fits | modeM0/AS1A13_017T01_9000006148_45975cztM0_level2_quad_clean.evt |
| Size (bytes) | 744,851,520 | 148,835,520 |
| Size | 710.3 MB | 141.9 MB |
| Events in quadrant A | 9,680,172 | 919,174 |
| Events in quadrant B | 6,853,173 | 1,005,545 |
| Events in quadrant C | 4,368,722 | 1,004,109 |
| Events in quadrant D | 5,912,978 | 900,709 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 196 | 0 |
| B | 0 | 196 | 0 |
| C | 0 | 196 | 0 |
| D | 0 | 196 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35286 | 1 |
| B | 0 | 26791 | 1 |
| C | 0 | 20224 | 1 |
| D | 0 | 24550 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9768 | 1211 | 12.397625% |
| B | 9768 | 603 | 6.173219% |
| C | 9768 | 164 | 1.678952% |
| D | 9767 | 471 | 4.822361% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10118 | 9768 | 387 | 387 | 3.82% | 3.96% |  |
| B | 10118 | 9768 | 121 | 121 | 1.20% | 1.24% |  |
| C | 10118 | 9768 | 0 | 0 | 0.00% | 0.00% |  |
| D | 10117 | 9767 | 310 | 310 | 3.06% | 3.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3545786 | 16250.81 | 1048 | 1022 | 218.1 |
| A | 15 | 223 | 2048846 | 9388.16 | 1048 | 1022 | 218.1 |
| A | 12 | 189 | 20549 | 89.52 | 1048 | 1022 | 218.1 |
| B | 3 | 112 | 2426205 | 11261.2 | 1087 | 1051 | 215.4 |
| B | 5 | 255 | 93803 | 430.69 | 1087 | 1051 | 215.4 |
| B | 12 | 111 | 28554 | 127.71 | 1087 | 1051 | 215.4 |
| C | 9 | 54 | 83991 | 325.74 | 1091 | 1091 | 254.5 |
| C | 3 | 233 | 18728 | 69.3 | 1091 | 1091 | 254.5 |
| C | 5 | 250 | 8376 | 28.63 | 1091 | 1091 | 254.5 |
| D | 1 | 52 | 844970 | 3120.96 | 1080 | 1043 | 270.4 |
| D | 12 | 2 | 422773 | 1559.61 | 1080 | 1043 | 270.4 |
| D | 13 | 249 | 277437 | 1022.14 | 1080 | 1043 | 270.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

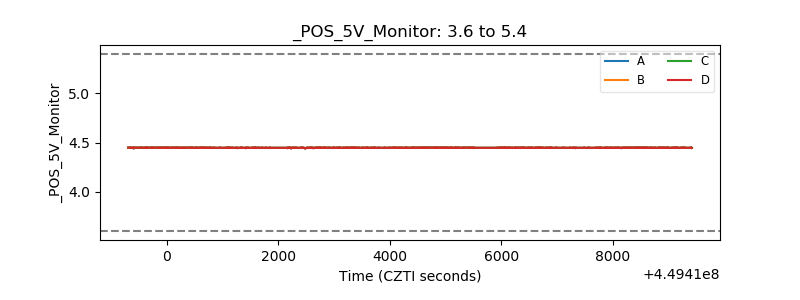

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
