| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006148_45990cztM0_level2.fits | modeM0/AS1A13_017T01_9000006148_45990cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,773,216,000 | 270,780,480 |
| Size | 1.7 GB | 258.2 MB |
| Events in quadrant A | 19,463,532 | 1,758,202 |
| Events in quadrant B | 24,368,887 | 1,485,300 |
| Events in quadrant C | 8,339,872 | 1,932,563 |
| Events in quadrant D | 12,000,756 | 1,713,334 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70292 | 3 |
| B | 0 | 85485 | 3 |
| C | 0 | 39119 | 3 |
| D | 0 | 49146 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18987 | 2052 | 10.807395% |
| B | 18987 | 5438 | 28.640649% |
| C | 18987 | 366 | 1.927635% |
| D | 18987 | 1077 | 5.672302% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20307 | 18987 | 1176 | 1176 | 5.79% | 6.19% |  |
| B | 20307 | 18987 | 4312 | 4312 | 21.23% | 22.71% |  |
| C | 20307 | 18987 | 30 | 30 | 0.15% | 0.16% |  |
| D | 20307 | 18988 | 762 | 762 | 3.75% | 4.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7349219 | 17357.4 | 2048 | 2001 | 423.3 |
| A | 15 | 223 | 3968573 | 9370.81 | 2048 | 2001 | 423.3 |
| A | 2 | 79 | 197967 | 462.96 | 2048 | 2001 | 423.3 |
| B | 3 | 112 | 16787786 | 44885.93 | 1894 | 1826 | 374.0 |
| B | 12 | 111 | 48900 | 125.88 | 1894 | 1826 | 374.0 |
| B | 11 | 111 | 44663 | 114.55 | 1894 | 1826 | 374.0 |
| C | 14 | 254 | 188939 | 383.4 | 2083 | 2088 | 487.4 |
| C | 3 | 233 | 23587 | 44.11 | 2083 | 2088 | 487.4 |
| C | 13 | 61 | 13978 | 24.4 | 2083 | 2088 | 487.4 |
| D | 12 | 2 | 2161970 | 4213.27 | 2050 | 1988 | 512.7 |
| D | 1 | 52 | 1223450 | 2382.59 | 2050 | 1988 | 512.7 |
| D | 2 | 249 | 273320 | 529.26 | 2050 | 1988 | 512.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

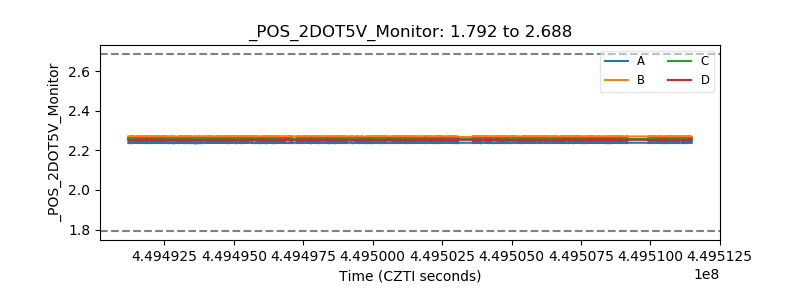

| +2.5 Volts monitor |  |

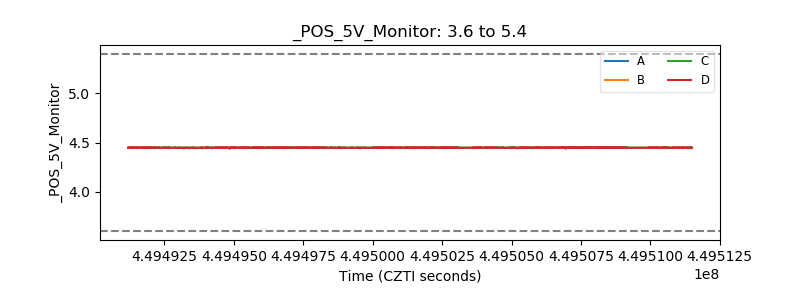

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
